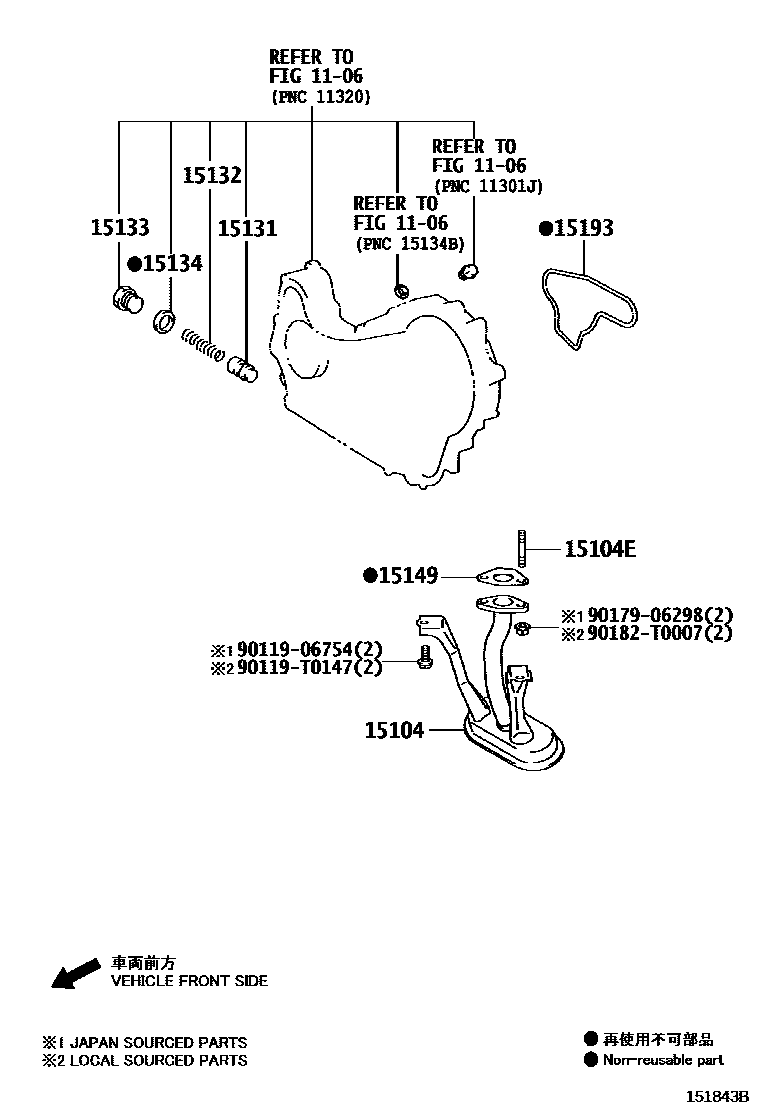

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-0C010i1TRFE,2TRFE..TGN4#201107-201503

main15104-0C050i1TRFE,2TRFE..TGN4#201503-201611

main15104-0L010i2KDFTV..KUN40201110

*130

main15104-0L011i2KDFTV..KUN40201107-201110

*130

main15104-30050i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90116-T0020×2i2KDFTV..KUN40201107-201603

*130

main90126-06029i1TRFE,2TRFE..TGN4#201503-201611

(J)

main90126-08037×2i1TRFE,2TRFE..TGN4#201107-201503

main90126-T0012i1TRFE,2TRFE..TGN4#201503-201611

(L)

15131VALVE, OIL PUMP RELIEF

main15131-46040i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0C010i1TRFE,2TRFE..TGN4#201107-201611

main15132-0L030i2KDFTV..KUN40201107-201603

*130,(L)

main15132-17010i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0C010i2KDFTV..KUN40201107-201603

*130,(L)

main15133-17010i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2KDFTV..KUN40; 2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*130; *360

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i2KDFTV..KUN40201107-201603

*130

main15149-67010i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

15193GASKET, OIL PUMP

main15193-0L010i2KDFTV..KUN40201107-201603

*130

main15193-67011i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

9011906754

main90119-06754

90119T0147

main90119-T0147

9017906298

main90179-06298

90182T0007

main90182-T0007
