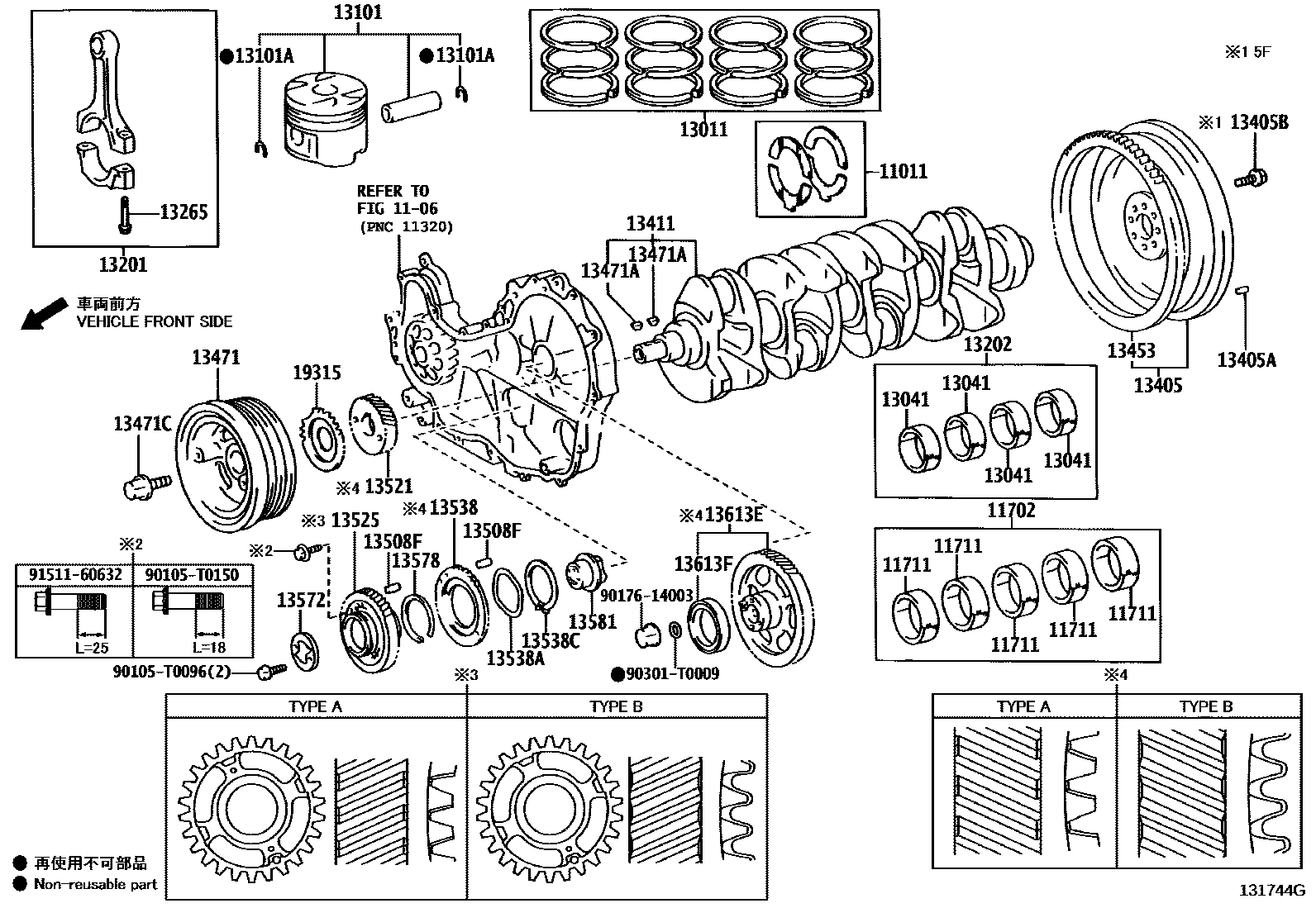

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD,*130
STD,*360
O/S 0.125,*130; O/S 0.125,*360
O/S 0.250,*130; O/S 0.250,*360
1106TIMING GEAR COVER & REAR END PLATE
11702BEARING SET, CRANKSHAFT
U/S 0.25,*130; U/S 0.25,*360
U/S 0.25
U/S 0.25
U/S 0.50,*130; U/S 0.50,*360
11711BEARING, CRANKSHAFT
MARK1,REFER R/M
MARK2,REFER R/M
MARK3,REFER R/M
MARK 1,REFER R/M
MARK 2,REFER R/M
MARK 3,REFER R/M
MARK 4,REFER R/M
MARK 5,REFER R/M
MARK2,*130:REFER R/M
MARK3,*130:REFER R/M
MARK4,*130:REFER R/M
MARK5,*130:REFER R/M
MARK6,*130:REFER R/M
MARK2,*360
MARK3,*360
MARK4,*360
MARK5,*360
MARK6,*360
13011RING SET, PISTON
STD
STD
STD,*130
STD,*360
O/S 0.50,*130
O/S 0.50,*360
O/S 0.50
O/S 0.50
13041BEARING, CONNECTING ROD
MARK4,REFER R/M
MARK5,REFER R/M
MARK6,REFER R/M
MARK 4,REFER R/M
MARK 5,REFER R/M
MARK 6,REFER R/M
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK2,*130:REFER R/M
MARK3,*130:REFER R/M
MARK4,*130:REFER R/M
MARK5,*130:REFER R/M
MARK6,*130:REFER R/M
MARK2,*360:REFER R/M
MARK3,*360:REFER R/M
MARK4,*360:REFER R/M
MARK5,*360:REFER R/M
MARK6,*360:REFER R/M
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD,(L)
STD,MARK 1,*130:REFER R/M
STD,MARK 2,*130:REFER R/M
STD,MARK 3,*130:REFER R/M
STD,MARK1,*360:REFER R/M
STD,MARK2,*360:REFER R/M
STD,MARK3,*360:REFER R/M
STD,(J)
O/S 0.50,*130
O/S 0.50,*360
O/S 0.50,(L)
O/S 0.50,(J)
13101ARING, HOLE SNAP(FOR PISTON PIN)
*130; *360
13201ROD SUB-ASSY, CONNECTING
TYPE B
TYPE A
TYPE A
TYPE B
*130,(L)
*360
13202BEARING SET, CONNECTING ROD
U/S 0.25,*130; U/S 0.25,*360
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50,*130; U/S 0.50,*360
13265BOLT, CONNECTING ROD
*130; *360
13405FLYWHEEL SUB-ASSY
*130
*130
*360
*360
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5,*360
L=23,OD=8,*360
L=23,OD=8,(L)
L=15,OD=5,*130
13405BBOLT, FLYWHEEL SETTING
*360
*130
(J)
(L)
13411CRANKSHAFT
*360,(L)
*130,(J); *360,(J)
13453GEAR, FLYWHEEL RING
*130
*360
13471PULLEY, CRANKSHAFT
*130
*360
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*130,(L); *360,(L)
*130,(J); *360,(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
*360
*130
13508FPIN, STRAIGHT(FOR IDLE GEAR)
*130,(J)
*130,(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
*130,*299T/P A:SEE
*130,*299T/P B:SEE
*360
(J)
13525GEAR, IDLE, NO.1
*130,*299T/P A:SEE
*130,*299T/P B:SEE
*130,*300T/P A:SEE; INDIA SPEC(EURO 3 REGULATION),*360T/P A:REF.ILLUST
13538GEAR, IDLE SUB, NO.2
*130,*299T/P A:SEE
*130,*299T/P B:SEE
*360
13538AWASHER, WAVE
*360
*130,(L)
13538CRING, SHAFT SNAP
*130,(J)
*130,(L)
13572PLATE, IDLE GEAR THRUST
*130
*360
13578SPRING, IDLE GEAR
*130,(L)
*130,(J)
13581SHAFT, IDLE GEAR, NO.1
*130
*360
13613EGEAR, INJECTION
*130
*130,*299T/P B:SEE
*360
13613FBEARING, RADIAL BALL
*360
*130,*299T/P A:SEE
19315PLATE, CRANK ANGLE SENSOR, NO.1
*130
*360
90105T0096
main90105-T0096
90105T0150
main90105-T0150
9017614003
main90176-14003
90301T0009
main90301-T0009
9151160632
main91511-60632
36 parts on this diagram · 4 diagrams in section
