SHORT BLOCK ASSEMBLY

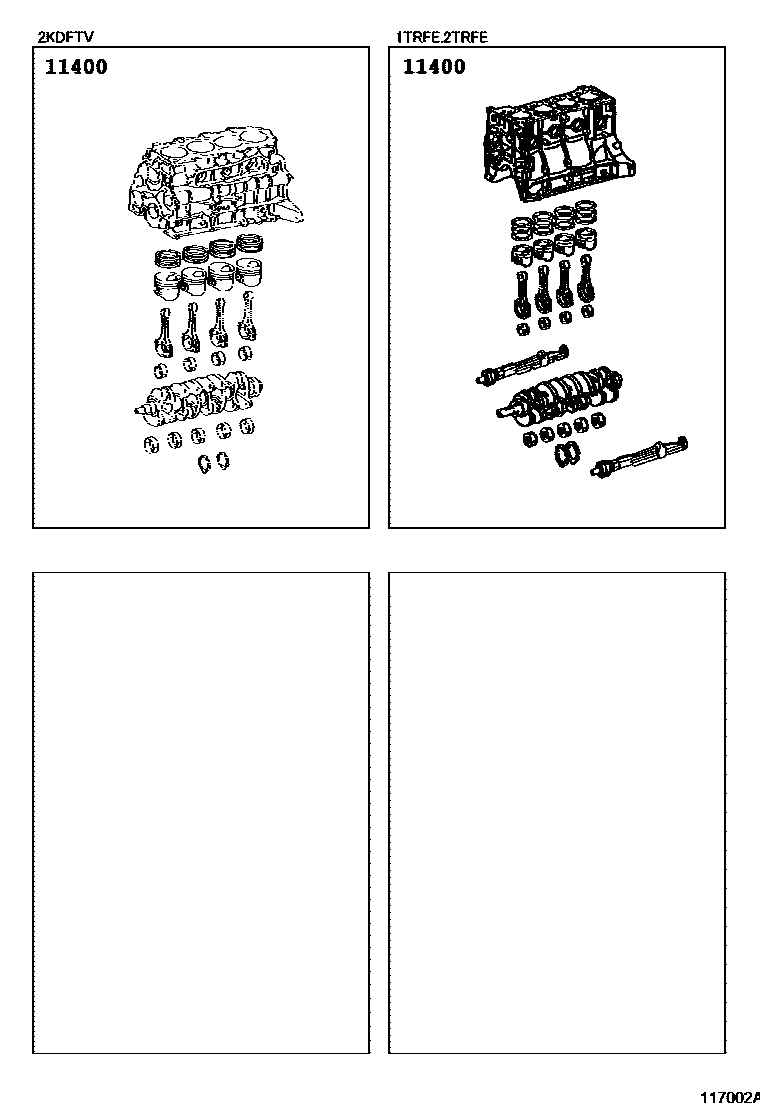

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0C010i201107-201510

main11400-0C020i201107-201611

main11400-0L090supersedes 11400-0L170i201107-201603

(L)

main11400-30240i201107-201208

(J)

1 parts on this diagram · 1 diagram in section
