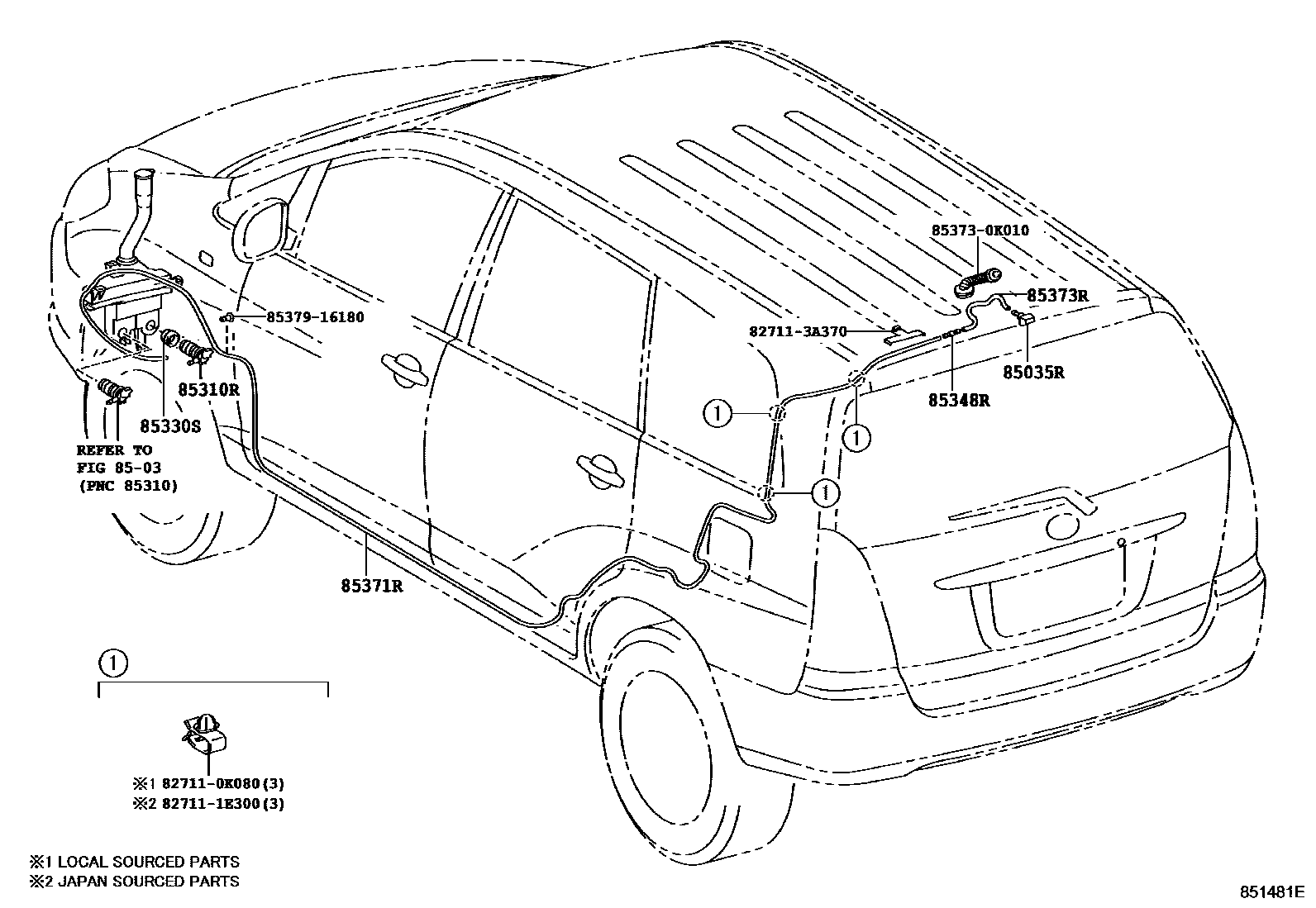

REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
main85391-0K010iKUN40..GL..IND;TGN40..4FC..MA;TGN40..DLX..TH;TGN40..5F..DLX..MA;TGN40..(GL,STD)..(IND,TH);KUN40,TGN4#..(DLX,GL)..(GCC,IDN,PHL,VN)200808-201008
main85391-0K020iKUN40,TGN40..DLX..IND; KUN40..GL..IND;TGN40..DLX..(MA,TH);TGN40..(GL,STD)..(IND,MA,TH);KUN40,TGN4#..(DLX,GL)..(GCC,IDN,PHL,VN)201008
REAR WINDOW DEFOGGER-WITH
85310RMOTOR ASSY, REAR WASHER
main85330-60160iTGN41;TGN40..MA,TH;TGN40..5F..GL..VN;KUN40..WG..GL..IND;TGN40..DLX..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..GL..(IDN,IND,PHL,TAIW)200408
85330SBUSH, REAR WASHER JAR
main85336-60300iTGN41;TGN40..TH;TGN40..DLX..IDN;TGN40..5F..GL..VN;KUN40..WG..GL..IND;KUN40..(DLX,GL)..(IDN,TH);TGN40..GL..(IDN,IND,TAIW)200408
85348RJOINT, REAR WASHER HOSE, NO.1
main85375-10260iTGN41;TGN40..MA,TH;TGN40..5F..GL..VN;KUN40..WG..GL..IND;TGN40..DLX..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..GL..(IDN,IND,PHL,TAIW)200408
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90068-59044iTGN41;TGN40..MA,TH;TGN40..5F..GL..VN;KUN40..WG..GL..IND;TGN40..DLX..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..GL..(IDN,IND,PHL,TAIW)200408
L=5740
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
main90068-59043iTGN41;TGN40..MA,TH;TGN40..5F..GL..VN;KUN40..WG..GL..IND;TGN40..DLX..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..GL..(IDN,IND,PHL,TAIW)200408
L=230
827110K080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K080
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
827113A370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A370
853730K010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-0K010
8537916180JOINT
main85379-16180
12 parts on this diagram · 1 diagram in section
