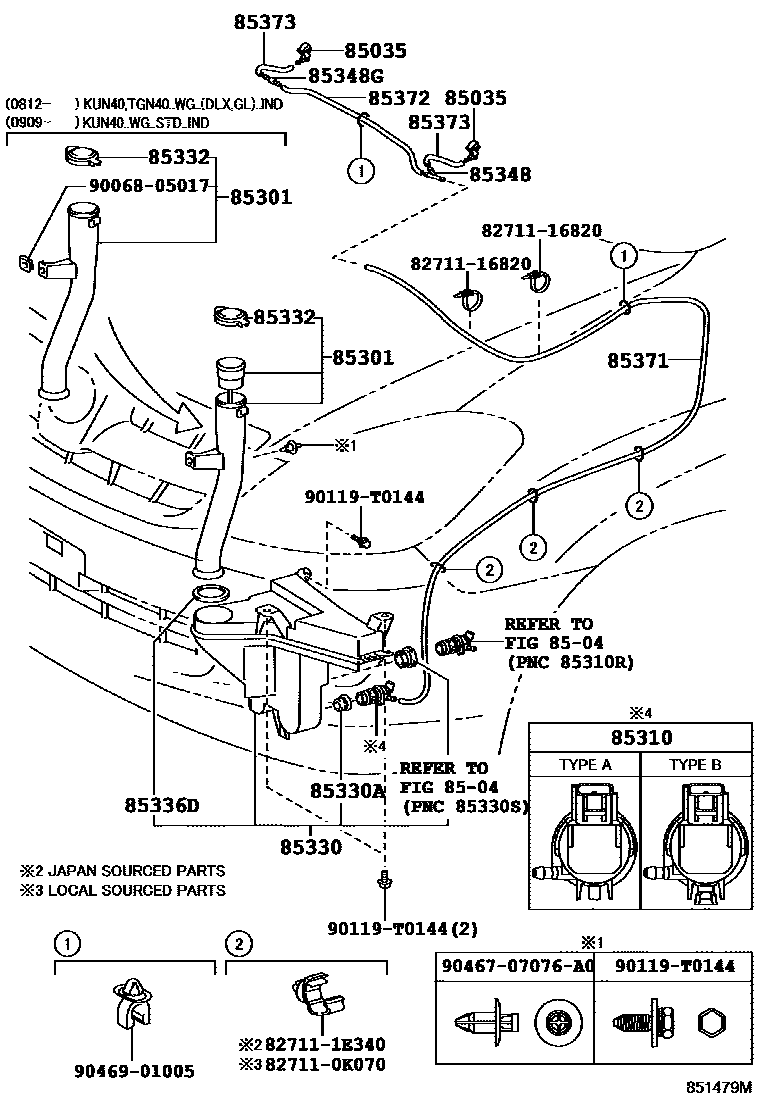

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K020×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main85381-0K030×2iKUN40,TGN40..IND200812

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0K020iKUN40,TGN40..PHL200809-201009

main85301-0K021iKUN40,TGN40..PHL201009-201204

main85301-0K040iKUN40,TGN40..(LO,STD)..(IDN,VN)200808-201008

main85301-0K041iTGN40..GL..VN201110-201204

main85301-0K050iKUN40,TGN40..IND200502-200701

main85301-0K051iKUN40..INDWG200812-201204

main85301-0K070iTGN40..MA200505-200809

main85301-0K071iTGN40..MA201001-201110

main85301-0K090iTGN41..TAIW200707-201110

main85301-0K091iTGN40..TAIW201111

main85301-0K130iKUN40,TGN40..WG..(DLX,STD)..IND200909-201204

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D100iTGN40..TAIW201111

TYPE B

main85330-21010iKUN40..IND,PHL;KUN40..(LO,STD)..IDN;TGN40..(DLX,GL)..(IND,PHL);TGN40..(LO,STD)..(IDN,PHL,VN)200808-201012

TYPE A

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K040iTGN41..TAIW;TGN40..GL..TAIW200707

main85315-0K070iKUN40,TGN40..(LO,STD)..(IDN,VN)200808-201204

main85315-0K080iTGN40..GL..VN201110-201204

main85315-0K090iKUN40,TGN40..(DLX,STD)..IND200502-200812

main85315-0K100iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200812-201204

REAR WINDOW DEFOGGER-WITH

main85315-0K110iTGN40..MA200505-200809

main85315-0K120iKUN40,TGN40..STD..PHL200809-201204

main85315-0K130iKUN40,TGN40..(DLX,GL)..PHL200501-200809

main85315-0K220iTGN40..(DLX,STD)..TAIW201111

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0K020iKUN40,TGN40..PHL200809-201204

main85336-0K140iTGN40..MA200505-200809

main85336-60300iTGN40..VN201110-201204

85332CAP, WINDSHIELD WASHER JAR

main85316-0K010iKUN40..INDWG;KUN40,TGN40..PHL200809-201204

main85316-0K040iTGN40..GL..VN201110-201204

main85386-0K050iKUN40,TGN40..WG..GL..IND200812-201201

main85386-0K070iTGN40..MA200809-201110

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0K010iKUN40,TGN40..PHL200809-201204

main85336-0K070iKUN40,TGN40..(LO,STD)..(IDN,VN)200808-201101

main85336-42190iKUN40,TGN40..IND,MA200809-201204

main85336-8C000iTGN4#..TAIW200707

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85376-0K060iTGN41..GCC200508-200510

L=1870

main90068-59042iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

L=1870

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59041iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

L=490

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-59040×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

L=120

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

9006805017

main90068-05017

90119T0144

main90119-T0144

9046707076A0

main90467-07076A0

9046901005

main90469-01005

20 parts on this diagram · 1 diagram in section
