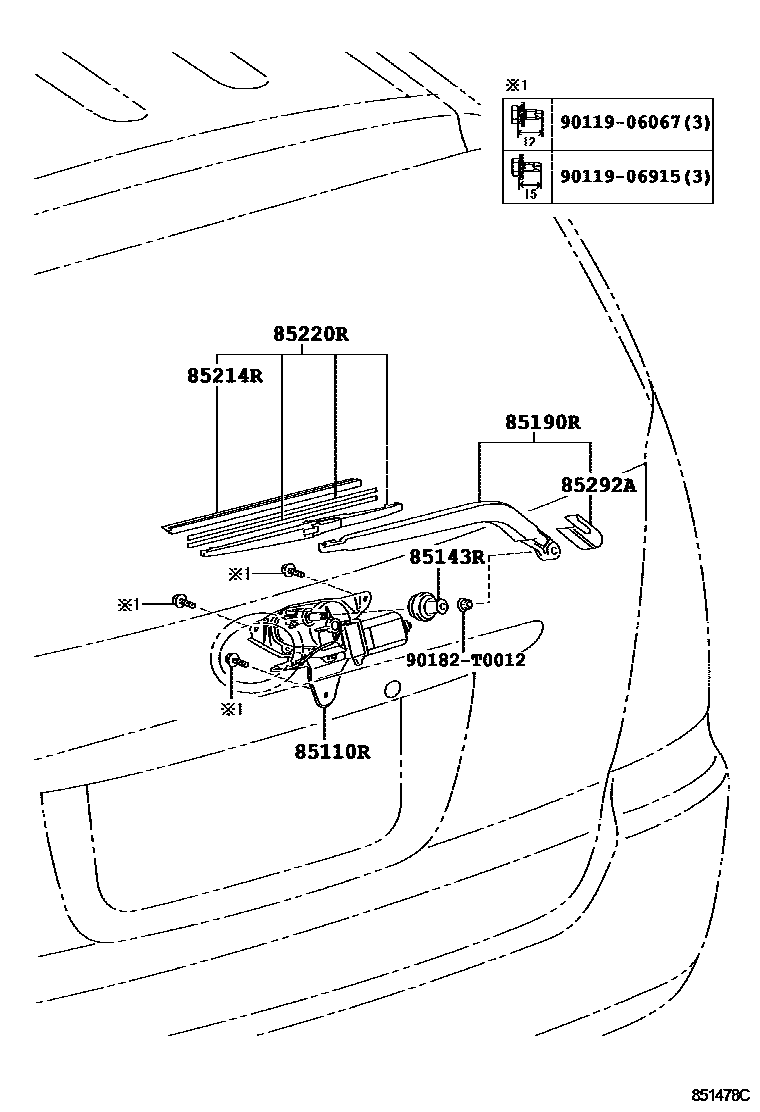

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0K020iTGN41;TGN40..MA,TH;TGN40..GL..TAIW;TGN40..5F..GL..VN;TGN40..(DLX,GL)..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH)200408

main85130-0K030iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200812

REAR WINDOW DEFOGGER-WITH

85143RGROMMET, REAR WIPER MOTOR

main85143-0K010iTGN41;TGN40..MA,TH;TGN40..5F..GL..VN;KUN40..WG..GL..IND;TGN40..DLX..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..GL..(IDN,IND,PHL,TAIW)200408

85190RARM ASSY, REAR WIPER

main85241-0K010iTGN41;TGN40..MA,TH;TGN40..GL..TAIW;TGN40..5F..GL..VN;TGN40..(DLX,GL)..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH)200408

main85241-0K020iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

REAR WINDOW DEFOGGER-WITH

85214RRUBBER, REAR WIPER

main85214-0K010iTGN41;TGN40..MA,TH;TGN40..GL..TAIW;TGN40..5F..GL..VN;TGN40..(DLX,GL)..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH)200408

main85214-0K080iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

REAR WINDOW DEFOGGER-WITH

85220RBLADE ASSY, REAR WIPER

main85242-0K010iTGN41;TGN40..MA,TH;TGN40..GL..TAIW;TGN40..5F..GL..VN;TGN40..(DLX,GL)..(IDN,PHL);KUN40..(DLX,GL)..(IDN,PHL,TH)200408

main85242-0K020iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

REAR WINDOW DEFOGGER-WITH

85292ACAP, REAR WIPER ARM HEAD

main85292-0K010iTGN40..TH;TGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..(DLX,GL)..(GCC,IDN,PHL,VN)200808

main85292-0K020iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

REAR WINDOW DEFOGGER-WITH

9011906067

main90119-06067

9011906915

main90119-06915

90182T0012

main90182-T0012

9 parts on this diagram · 1 diagram in section
