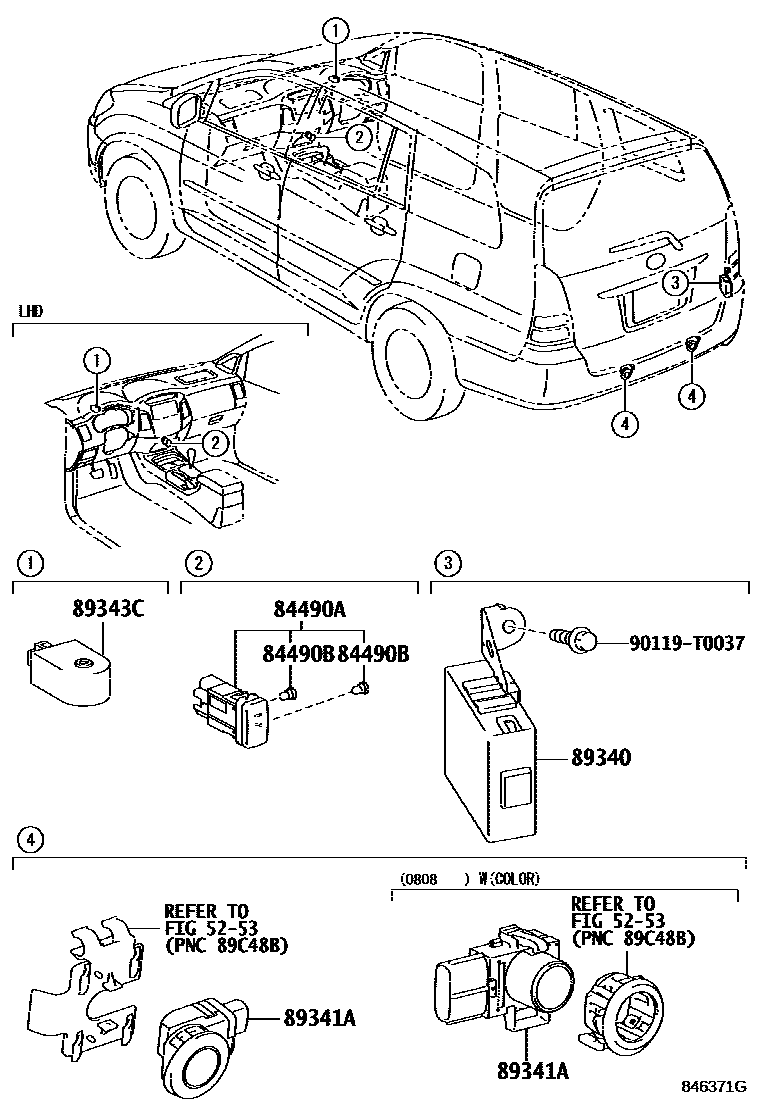

CLEARANCE & BACK SONAR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-0K010iTGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,PHL,TAIW,TH)200408-201111

84490BBULB(FOR BACK SONAR SWITCH)

main90011-01055iTGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,PHL,TAIW,TH)200408-201111

14V 0.84W,W(CAP)

main90011-01056iKUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)200808

14V 0.91W

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-71010iTGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,PHL,TAIW,TH)200408-201111

main89340-71030iKUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)200808

89341ASENSOR, ULTRASONIC, NO.1

main89341-48010-C1×2iKUN40,TGN40..WG..GL..IND200812-201201

DUMMY-MAT BLACK,040 ,1E3 ,1E7 ,209 ,3Q3 ,3R3 ,587 ,8S4

main89341-71010×2iTGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,PHL,TAIW,TH)200408-201111

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iTGN40..5F..GL..VN;KUN40,TGN4#..GL..(IDN,PHL,TAIW,TH)200408-201111

90119T0037

main90119-T0037

7 parts on this diagram · 1 diagram in section
