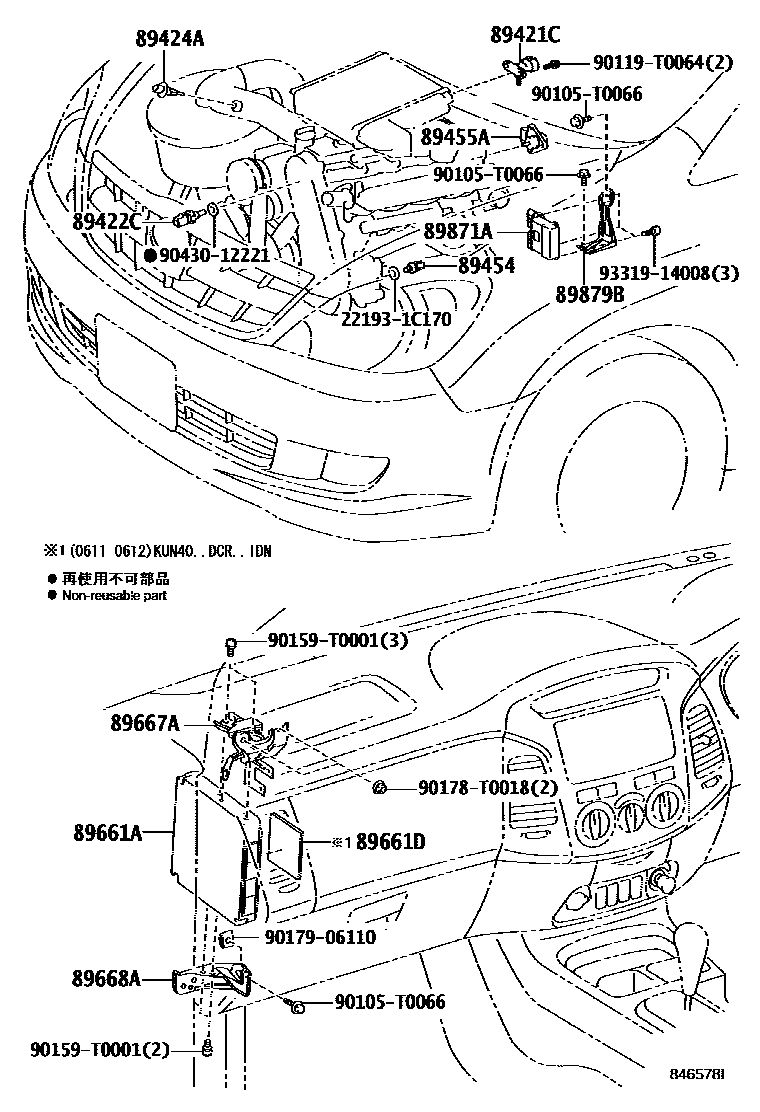

ELECTRONIC CONTROLED DIESEL (ECD)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89455ASENSOR, EGR VALVE POSITION
89661ACOMPUTER, ENGINE CONTROL
P/N LABEL=896610K460
P/N LABEL=896610K470
P/N LABEL=896610K490
P/N LABEL=896610K500
P/N LABEL=896610K890
P/N LABEL=896610KB70
P/N LABEL=896610KD50
P/N LABEL=896610KG30
P/N LABEL=896610KG40
P/N LABEL=896610KP60
P/N LABEL=896610KR90
P/N LABEL=896610KV20
P/N LABEL=896610KV30
P/N LABEL=896610KV40
89661DCUSHION, ENGINE CONTROL COMPUTER
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89879BBRACKET, INJECTOR DRIVER
221931C170RING, O(FOR LEVER CONNECTING PIN)
main22193-1C170
90105T0066
main90105-T0066
90119T0064
main90119-T0064
90159T0001
main90159-T0001
90178T0018
main90178-T0018
9017906110
main90179-06110
9043012221
main90430-12221
9331914008
main93319-14008
19 parts on this diagram · 3 diagrams in section
