SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1DOOR,ROOF,FLOOR & BACK DOOR

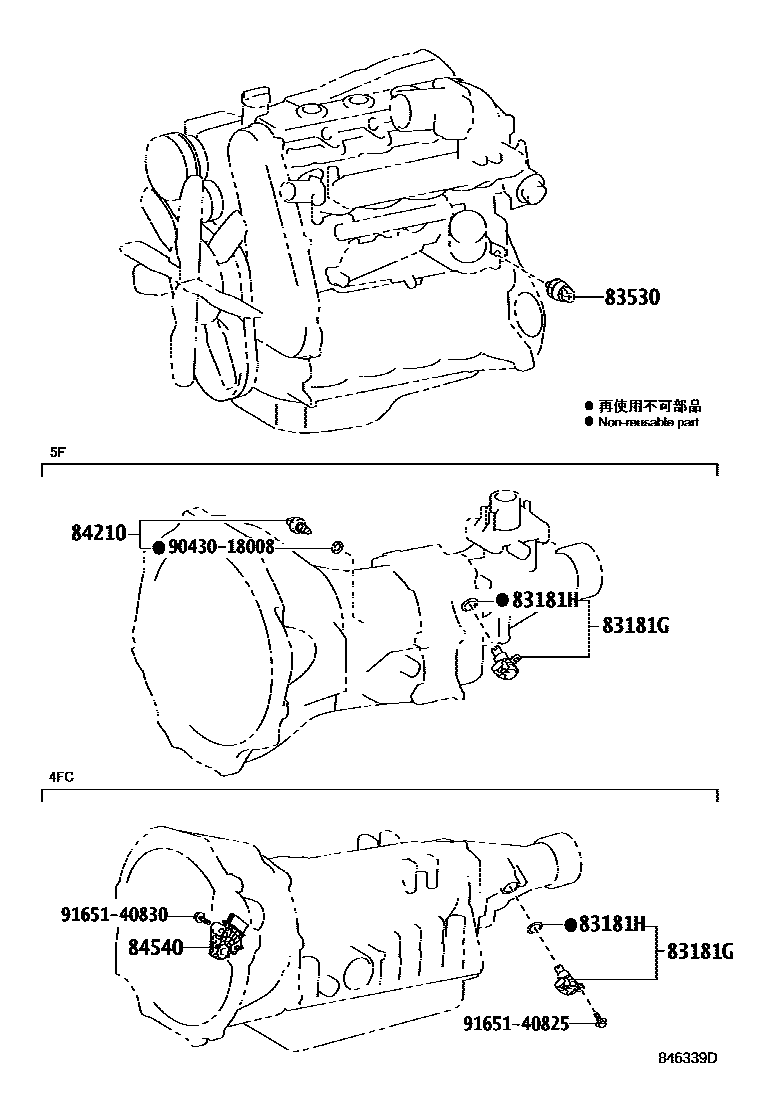

83181GSENSOR, SPEEDOMETER

main83181-12020iTGN41..5F..GCC200507-201111

main83181-24050iTGN40..4FC..(IDN,PHL,TH,VN)200408-201606

main83181-35040iKUN40,TGN40..5F200408-200906

main83181-35041iKUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200907-201606

main83181-35070iKUN40,TGN41..4FC..(GCC,IDN,PHL)200408-201202

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iKUN40,TGN41..4FC;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH)200408-201606

main90301-18018iKUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200408-201606

main96711-24030iTGN41..5F..GCC200507-201111

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN40200808-201202

DENSO

main83530-28010iKUN40200408-200812

main83530-28020iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201202

DENSO

main83530-28020iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main83530-60010iKUN40200808-201202

YAZAKI

main83530-60020iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201202

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN40,TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201606

main84210-12040iKUN40,TGN40..IND200502-200608

sub84210-52050

main84210-71020iTGN41..5F200507-201111

84540SWITCH ASSY, NEUTRAL START

main84540-35050iTGN41..4FC..GCC200412-201111

main84540-71010iKUN40..HDCR200408-201202

main84540-71020iTGN40..4FC..TAIW200408-201606

9043018008

main90430-18008

9165140825

main91651-40825

9165140830

main91651-40830

8 parts on this diagram · 10 diagrams in section
