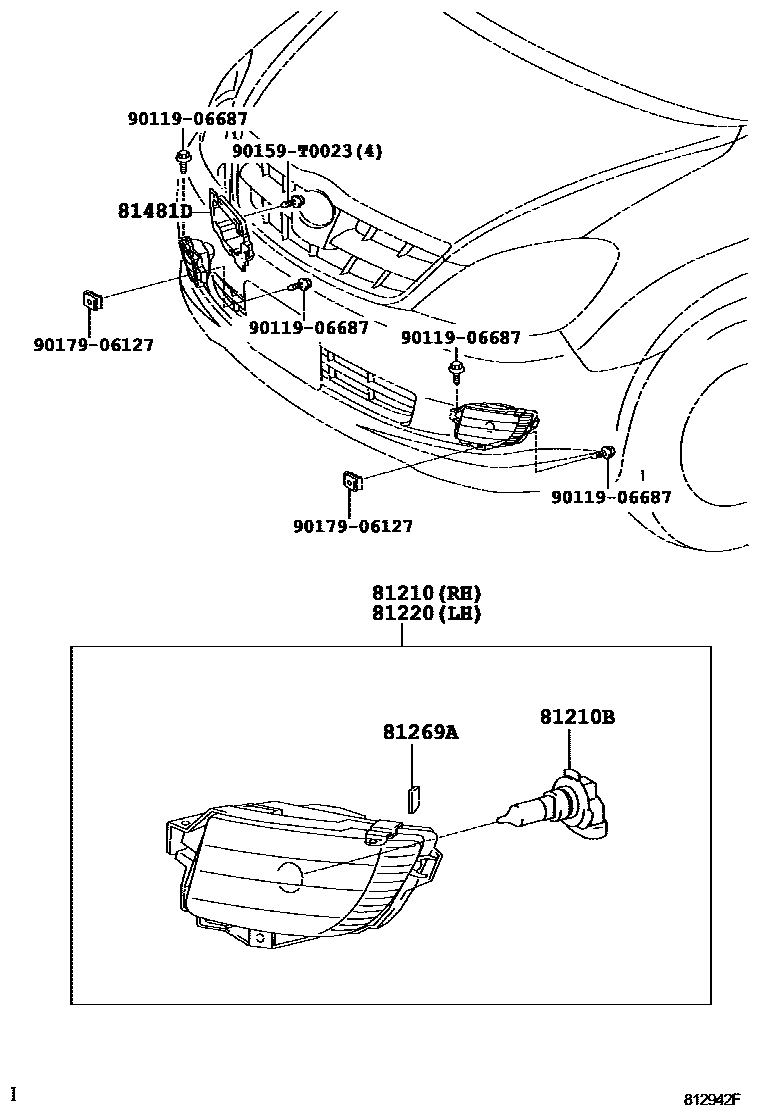

FOG LAMP

0001 1 0002 1 0006 1

81210LAMP ASSY, FOG

main81210-0K030iKUN40,TGN40..DLX,GL200408-200411

main81210-0K031iTGN40..5F..GL..VN;TGN40..DLX..(IDN,TH);KUN40..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TH)200411-200812

main81210-0K070iTGN4#..GL..TAIW200707

main81210-0K090iTGN40..4FC..MA;TGN40..5F..DLX..MA; TGN41..5F..GL; TGN41..DLX..GCC200808-201107

FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT

81210BBULB, FOG LAMP

main90981-13047×2iTGN40..5F..GL..VN;TGN40..DLX..(IDN,TH);KUN40..WG..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200408

12V 51W,HALOGEN

81220LAMP ASSY, FOG, LH

main81220-0K030iKUN40,TGN40..DLX,GL200408-200411

main81220-0K031iTGN40..5F..GL..VN;TGN40..DLX..(IDN,TH);KUN40..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TH)200411-200812

main81220-0K070iTGN4#..GL..TAIW200707

main81220-0K090iTGN40..4FC..MA;TGN40..5F..DLX..MA; TGN41..5F..GL; TGN41..DLX..GCC200808-201107

FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT

81269ASEAL, FOG LAMP

main81269-0K010×2iKUN40,TGN40..DLX,GL200408-200411

81481DCOVER, FOG LAMP, RH

main81481-0K040iKUN40,TGN41..HDCR,HTWC;KUN40,TGN40..GL..(DCR,HTWC);KUN40,TGN40..DLX..(DCR,HTWC)..IDN200408-200608

9011906687

main90119-06687

90159T0023

main90159-T0023

9017906127

main90179-06127

8 parts on this diagram · 3 diagrams in section
