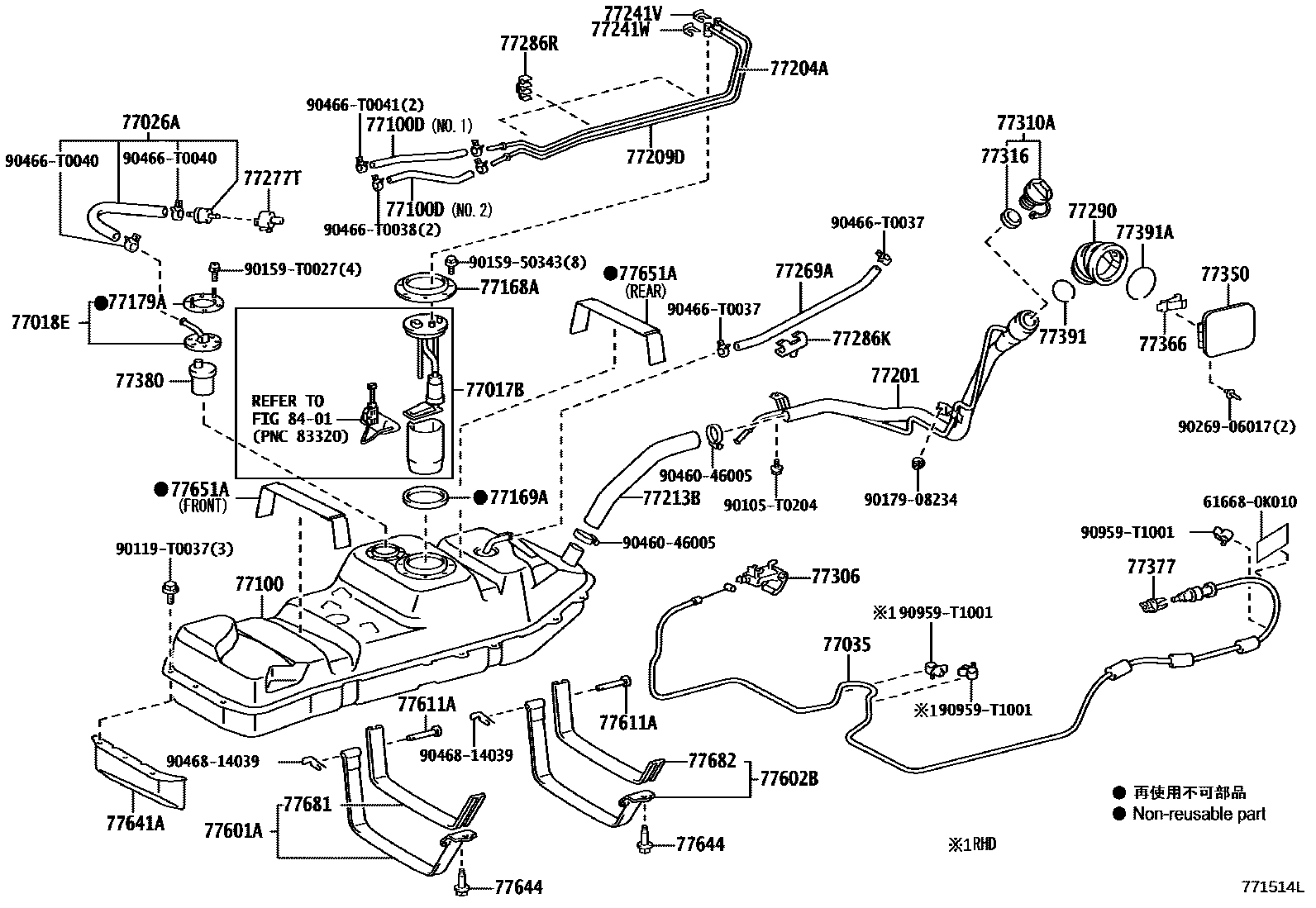

FUEL TANK & TUBE

0001 1FUEL TANK=STEEL 0003 1FUEL TANK 0004 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK=STEEL 0010 1FUEL TANK=PLASTIC 0011 1FUEL TANK=STEEL 0012 1FUEL TANK=PLASTIC 0013 1FUEL TANK 0014 1FUEL TANK 0016 1FUEL TANK 0017 1FUEL TUBE 0019 1FUEL TUBE 0020 1FUEL TUBE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-0K030iKUN40..IDN,PHL200808-201204

main77010-0K050iKUN40..IND200812-201004

main77010-0K060iKUN40200502-200506

FUEL TANK=PLASTIC

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0K020iTGN40..IDN200408-200612

main77018-0K030iTGN40..IDN200612-200812

main77018-0K040iTGN4#..TAIW200707

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0K020iTGN40..IND200412-200506

main77027-0K020iKUN40200502-200506

FUEL TANK=PLASTIC

main77027-0K030iKUN40200408-200812

FUEL TANK=STEEL

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0K020iTGN4#..GCC,VN200507-200809

main77035-0K021iTGN4#..GCC,VN201008

main77035-0K090iKUN40,TGN40..IDN,TH200808-201003

main77035-0K091iKUN40,TGN40..IDN,TH201004-201107

main77035-0K100iKUN40,TGN40..IND200812

main77035-0K150iKUN40,TGN40..PHL200809

main77035-0K160iTGN40..MA200809-201110

main77035-0K250iTGN4#..TAIW200707

77100TANK ASSY, FUEL

main77001-0K030iTGN41..GCC,IDN200412-200808

main77001-0K050iKUN40..PHL200408-200809

FUEL TANK=STEEL

main77001-0K060iTGN40..IDN200612-200809

main77001-0K180iTGN40..IND200502-200812

FUEL TANK=STEEL

main77001-0K190iKUN40..IND200502-200812

FUEL TANK=STEEL

main77001-0K200iTGN40..IND200502-200506

FUEL TANK=PLASTIC

main77001-0K210iKUN40200502-200506

FUEL TANK=PLASTIC

main77001-0K230iTGN4#..TAIW200707

main77001-0K310iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN40..IDN,IND,PHL,TH,VN200808-201204

main77001-0K320iKUN40200808-201204

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95332-10018iKUN40200502-200506

L=200(*H,L=180),NO.2

main95332-10020iKUN40..IDN,TH200408-200808

L=200,NO.2

main95333-08020iKUN40200502-200506

L=200(*H,L=180),NO.1

main95333-08030iKUN40..PHL200408-200809

L=300(*H,L=220),NO.1

main95337-08044iKUN40..WG..IND201004

L=440,NO.1

main95338-08022iKUN40..IND200808-201004

L=220,NO.1

main95338-10020iKUN40200808

L=200,NO.2

77168APLATE, FUEL TANK VENT TUBE SET

main77168-0K020iKUN40;TGN40..IND,MA,PHL,TH,VN200408-200712

(L)

main77168-52010iKUN40;TGN40..IND,MA,PHL,TH,VN200408-200712

(J)

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K010iTGN41..GCC,IDN200412-200808

main77169-0K020iKUN40200408-200501

(L)

main77169-33020×2iTGN40..(DLX,GL)..IND200501-200706

(J)

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-0B010iKUN40..PHL200408-200809

PLANT TKM

main77179-0K010iKUN40..IDN,TH200408-200506

PLANT TMMIN

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0K151iTGN41;TGN40..5F..VN;TGN40..MA,PHL,TAIW,TH200411

main77201-0K161iKUN40..IDN,PHL200808-201204

main77201-0K190iTGN40..IND200506-200812

77204ATUBE, FUEL TANK RETURN

main77204-0K030iTGN40..IND200502-200506

FUEL TANK=PLASTIC

main77204-0K040iKUN40200502-200506

FUEL TANK=PLASTIC

main77204-0K050iTGN41..TAIW;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408

main77204-0K060iKUN40200408-200812

FUEL TANK=STEEL

main77204-0K070iKUN40..IND201106-201204

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K030iTGN41..GCC,IDN200412-200808

main77209-0K040iKUN40200502-200506

FUEL TANK=PLASTIC

main77209-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;TGN40..IDN,IND,PHL,TH,VN200808-201204

main77209-0K060iKUN40..IDN,PHL200808-201204

main77209-0K130iKUN40..IND201106-201204

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0K030iKUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408

main77213-0K070iTGN41..GCC200808-201107

77241VCLIP, TUBE JOINT

main77241-35450iKUN40..IND200506-200812

77241WCLIP, TUBE JOINT

main77241-33011iKUN40..IDN,PHL,TH; KUN40..IND; TGN40..IND200502-200506

DENSO; FUEL TANK=PLASTIC

main77241-35450iKUN40..IDN,PHL200808-201204

main77241-60320×2iKUN40; TGN40..5F..VN;TGN40..IDN,IND,MA,PHL,TH200408-200812

HORIE

77269AHOSE, FUEL TANK BREATHER

main77269-0K030iTGN41..GCC,IDN200412-200808

main77269-0K040iKUN40..DCR..PHL;KUN40..GL..HDCR..PHL;TGN40..4FC..(DLX,GL)..IDN;TGN40..5F..(DLX,GL,STD)..IDN;KUN40..(DLX,GL,STD)..(IDN,TH)200506

main77269-0K050iKUN40..IND200502-200812

FUEL TANK=STEEL

77277TBRACKET, CHECK VALVE

main77277-0K010×2iKUN40..IND200502-200506

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K120iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

77286RCLAMP, FUEL TUBE, NO.10

main77286-0K020×3iTGN41..TAIW;KUN40..WG..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main77291-0K040iKUN40,TGN40..IND200502-200812

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

77310ACAP ASSY, FUEL TANK

main77300-28010iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main77300-52030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

main77300-60010iKUN40200408-200812

77316GASKET, FUEL TANK CAP

main77316-16010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main77316-52040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

77350LID ASSY, FUEL FILLER OPENING

main77350-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

main77350-0K070iTGN4#..TAIW200707-201606

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-0K010iKUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH,VN; TGN4#..TAIW201004

main77360-35010iTGN40..5F..VN;KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,IND,MA,PHL,TAIW,TH)200408-201003

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-0K010iKUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH,VN201004-201204

main77377-12050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201003

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iTGN41..TAIW;KUN40..WG..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

77391RING, FUEL INLET BOX

main77371-35010iTGN40..TAIW201112

main77391-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201112

77391ARING, FUEL INLET BOX

main77391-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0K020iKUN40,TGN40..IDN,MA,TH; KUN40,TGN40..IND200502-200506

FUEL TANK=PLASTIC; PLANT TMMIN

main77601-0K030iKUN40,TGN40..IDN,MA,TH200502-200506

PLANT TAM

main77601-0K060iKUN40,TGN40..IND200502-200812

FUEL TANK=STEEL

main77601-0K110iKUN40,TGN40..PHL200501-200809

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0K020iKUN40,TGN40..IDN,MA,TH; KUN40,TGN40..IND200502-200506

FUEL TANK=PLASTIC; PLANT TMMIN

main77602-0K030iTGN40..DLX..MA;KUN40,TGN40..IDN,TH,VN200808

main77602-0K060iKUN40,TGN40..IND200812

main77602-0K100iKUN40,TGN40..PHL200501-200809

77611APIN (FOR FUEL TANK BAND)

main77653-0K040×2iTGN40..(DLX,GL)..IND;TGN40..IDN,MA,PHL,TH,VN;KUN40,TGN41..IDN,IND,PHL,TH200408-200608

main77653-0K041×3iTGN41..GCC200609-200808

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K010iTGN41..TAIW;KUN40..WG..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

77644BOLT, FUEL TANK

main77644-35030×2iTGN40..4FC..GL..MA; TGN41..GCC200808-201107

77651ACUSHION, FUEL TANK, NO.1

main77651-0K010iKUN40200408-200502

FRONT

main77651-0K020iKUN40200408-200502

REAR

main77651-0K040iKUN40,TGN40..IND201002

FRONT

main77652-0K050iKUN40,TGN40..IND201002

REAR

77681SEAT, FUEL TANK BAND, RH

main77681-0K020iKUN40,TGN40..PHL200501-200809

main77681-0K050iKUN40,TGN40..IDN,MA,TH; KUN40,TGN40..IND200502-200506

FUEL TANK=PLASTIC; PLANT TMMIN

77682SEAT, FUEL TANK BAND, LH

main77681-0K030iKUN40,TGN40..PHL200501-200809

main77682-0K010iKUN40,TGN40..IDN,MA,TH; KUN40,TGN40..IND200502-200506

FUEL TANK=PLASTIC; PLANT TMMIN

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

616680K010REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER LH

main61668-0K010

90105T0204

main90105-T0204

90119T0037

main90119-T0037

9015950343

main90159-50343

90159T0027

main90159-T0027

9017908234

main90179-08234

9026906017

main90269-06017

9046046005

main90460-46005

90466T0037

main90466-T0037

90466T0038

main90466-T0038

90466T0040

main90466-T0040

90466T0041

main90466-T0041

9046814039

main90468-14039

90959T1001

main90959-T1001

52 parts on this diagram · 14 diagrams in section
