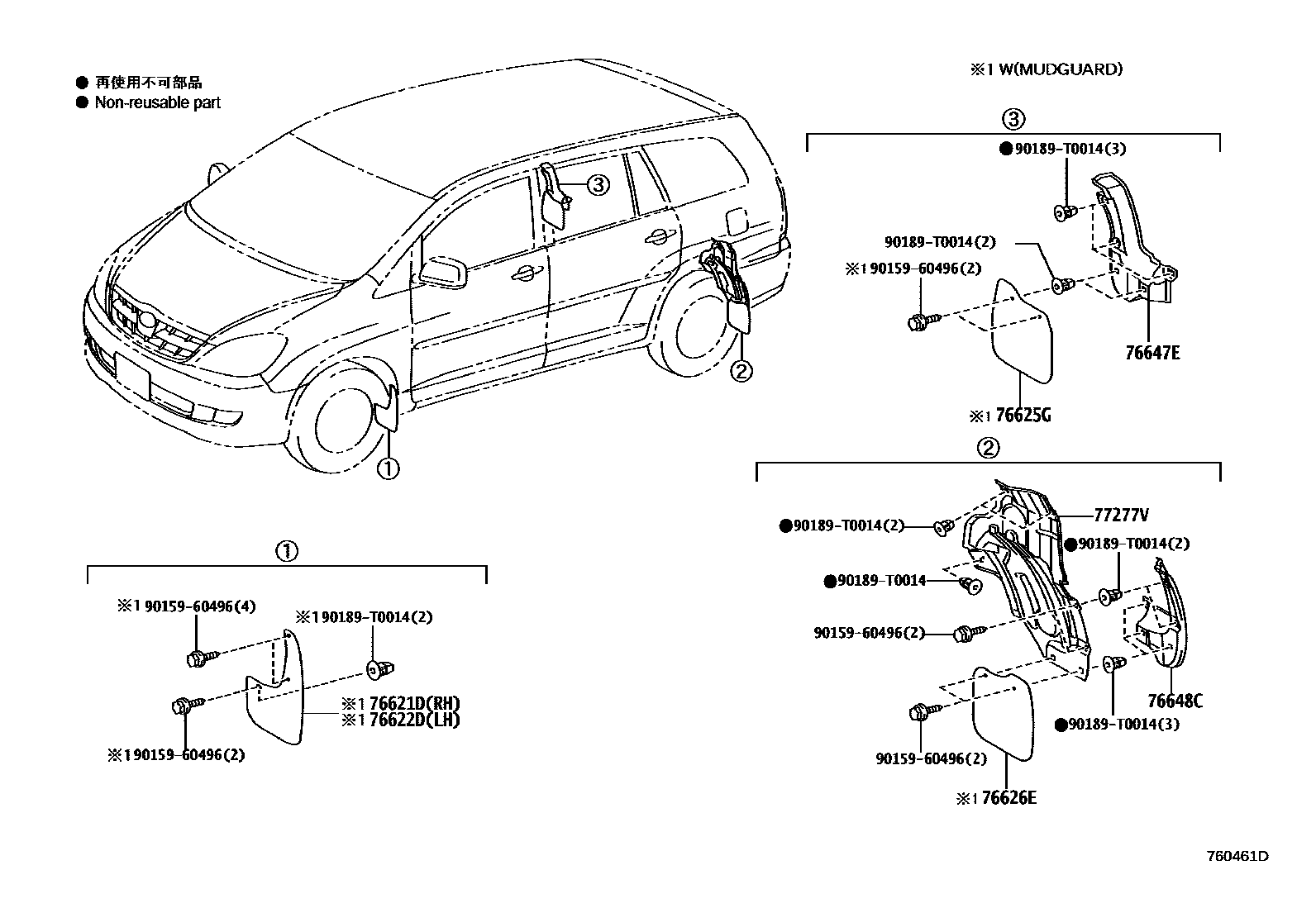

SPOILER & SIDE MUDGUARD

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K090iTGN41..GCC200507-200808

JORDAN SPEC

76622DMUDGUARD, FRONT FENDER, LH

main76621-0K090iKUN40,TGN40..IDN200408-200808

PAPUA NEW GUINEA SPEC

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K040iKUN40,TGN40..(DLX,GL,STD)..IDN; TGN41..GCC200808-201107

JORDAN SPEC; PAPUA NEW GUINEA SPEC

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76625-0K040iKUN40,TGN40..IDN200408-200808

PAPUA NEW GUINEA SPEC

76647ESUPPORT, REAR BODY MUDGUARD, NO.1 RH

main76647-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main76647-0K070iKUN40,TGN40..IND200502-200812

main76647-0K090iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main76647-0K100iKUN40,TGN40..IND200812

76648CSUPPORT, REAR BODY MUDGUARD, LH

main76648-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main76648-0K070iKUN40,TGN40..IND200502-200812

main76648-0K090iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main76648-0K100iKUN40,TGN40..IND200812

77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1

main77277-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main77277-0K050iKUN40,TGN40..IND200502-200812

9015960496

main90159-60496

90189T0014

main90189-T0014

9 parts on this diagram · 1 diagram in section
