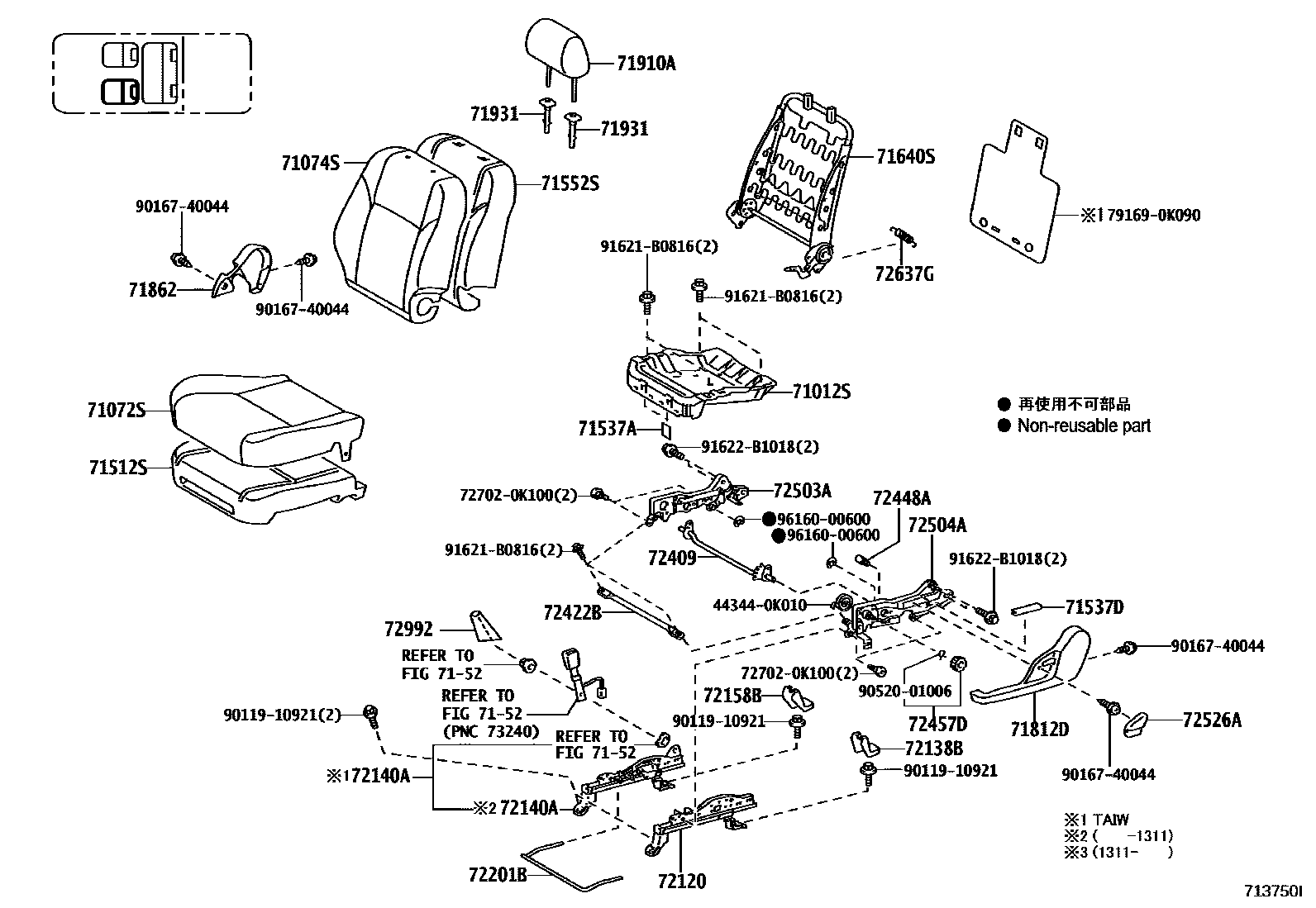

SEAT & SEAT TRACK
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
MID.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
main71072-0K450-E0supersedes 71072-0K510-E0iKUN40,TGN40..DLX..IDN; TGN40..DLX..TH;KUN40,TGN40..GL..IDN200808-201107
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
MID. GRAY,TRIM1#
DK GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,IVORY,TRIM0#
AIR CONDITIONER-AIR CONDITIONER DUAL&SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,GREGE,TRIM4#; SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
main71073-0K120-E0supersedes 71073-0K330-E0iKUN40,TGN40..DLX..IDN; TGN40..DLX..TH;KUN40,TGN40..GL..IDN200808-201107
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#
MID.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
MID. GRAY,TRIM1#
DK GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71073-0KD31-E0supersedes 71073-0K120-E0iKUN40,TGN40..GL..IDN; TGN40..GL..TH; TGN41..GL..GCC201009-201107
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,IVORY,TRIM0#
POWER DOOR LOCK-WITH&AIR CONDITIONER-AIR CONDITIONER DUAL&SEAT COVER MATERIAL-SEMIFABRIC FOR MINI-VAN,GREGE,TRIM4#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,GREGE,TRIM4#
GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
7152SEAT BELT
71537APROTECTOR, FRONT SEAT CUSHION
main71537-0K020×4iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200501
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-71010iKUN40..INDWG;TGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0K020iTGN41..GCC;TGN41..(DLX,STD)..TAIW;KUN40..(DLX,GL,STD)..IDN;KUN40,TGN40..WG..GL..(IND,PHL);TGN40..4FC..(DLX,GL)..(IDN,MA);KUN40,TGN40..DLX..(PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW,TH,VN)200408
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0K020-A0iKUN40..IND,TH;TGN40..IND,MA;TGN40..(DLX,GL)..(IDN,TH);KUN40,TGN41..(DLX,GL)..IDN200408-200812
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
main71812-0K040-A0iTGN41..DLX..GCC;TGN40..LHD..5F..GL;TGN40..4FC..GL..PHL;KUN40,TGN41..LHD..GL200501-201111
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0K020-A0iKUN40..IND,TH;TGN40..IND,MA;TGN40..(DLX,GL)..(IDN,TH);KUN40,TGN41..(DLX,GL)..IDN200408-200812
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
main71862-0K040-A0iTGN41..DLX..GCC;TGN40..LHD..5F..GL;TGN40..4FC..GL..PHL;KUN40,TGN41..LHD..GL200501-201111
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
IVORY,TRIM0#
MID.GRAY,TRIM1#
GREGE,TRIM4#
IVORY,TRIM0#
main71910-0K110-E0×2supersedes 71910-0K100-E0iKUN40,TGN40..DLX..IDN; TGN40..DLX..TH;KUN40,TGN40..GL..IDN; TGN41..GL..GCC200808-201107
GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-FULL FABRIC FOR MINI-VAN,GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
GREGE,TRIM4#; GREGE,TRIM41
IVORY,TRIM0#
GREGE,TRIM4#
IVORY,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
GRAY,TRIM1#
IVORY,TRIM0#
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM1#
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
main71910-0K821-E0×2supersedes 71910-0K110-E0iKUN40,TGN40..GL..IDN; TGN40..GL..TH; TGN41..GL..GCC201009-201107
GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
GREGE,TRIM4#
GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,IVORY,TRIM01; SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,IVORY,TRIM0#
SEAT COVER MATERIAL-SEMI FABRIC FOR MINI-VAN,GREGE,TRIM41
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#,RH SEAT; SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#,RH SEAT
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#; SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#,LH SEAT; SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#,LH SEAT
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-A0×2iTGN41..GL;TGN40..LHD..5F..GL;TGN40..4FC..GL..PHL;TGN4#..DLX..(GCC,MA);KUN40..WG..GL..(IND,PHL);TGN40..(GL,STD)..(IND,MA);KUN40,TGN40..(DLX,GL)..(IDN,TH)200408-201111
W(LOCK),IVORY,TRIM0#
W(LOCK),DK.GRAY,TRIM1#
W(LOCK),GRAY,TRIM1#
main71930-02050-E1×2iKUN40..GL..PHL;TGN40..LHD..5F..GL;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,TH;TGN40..4FC..(MA,VN);TGN40..4FC..GL..PHL200808-201202
W(LOCK),GREGE,TRIM4#
W(LOCK),GREGE,TRIM4#
W/O(LOCK),IVORY,TRIM0#
W/O(LOCK),DK.GRAY,TRIM1#
W/O(LOCK),GRAY,TRIM1#
main71931-02030-E1×2iKUN40..GL..PHL;TGN40..LHD..5F..GL;TGN40..5F..DLX..MA;TGN40..4FC..(MA,VN);TGN40..4FC..GL..PHL;KUN40,TGN40..IDN,IND,TH200808-201202
W/O(LOCK),GREGE,TRIM4#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,TH;KUN40,TGN40..STD..(PHL,VN)200808-201202
main72120-0K050iTGN41..DLX..GCC;TGN40..5F..GL..VN;TGN4#..GL..(GCC,TAIW);KUN40,TGN40..(DLX,GL)..PHL200501
72138BCOVER, SEAT TRACK, LH
main72137-0K030-A0iTGN41..GL;TGN40..STD..IND;TGN41..DLX..GCC;TGN40..LHD..5F..GL;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN40..4FC..GL..PHL;KUN40,TGN40..(DLX,GL)..(IDN,MA,TH)200408-201111
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main72137-0K030-E0iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,IND,TH,VN200808-201202
GREGE,TRIM4#
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,TH;KUN40,TGN40..STD..(PHL,VN)200808-201202
main72140-0K050iTGN41..DLX..GCC;TGN40..5F..GL..VN;TGN4#..GL..(GCC,TAIW);KUN40,TGN40..(DLX,GL)..PHL200501-201311
72158BCOVER, SEAT TRACK BRACKET, INNER LH
main72158-0K020-A0iTGN41..GL;TGN40..STD..IND;TGN41..DLX..GCC;TGN40..LHD..5F..GL;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN40..4FC..GL..PHL;KUN40,TGN40..(DLX,GL)..(IDN,MA,TH)200408-201111
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main72158-0K020-E0iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,IND,TH,VN200808-201202
GREGE,TRIM4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
72409SHAFT SUB-ASSY, VERTICAL ADJUSTING
main72409-0K030iKUN40..GL..IND;TGN40..RHD..GL;TGN40..DLX..(IDN,MA,TH);KUN40,TGN41..(DLX,GL)..(IDN,TH)200408-200812
72422BROD, FRONT SEAT ADJUSTTER
main72422-0K020iTGN41..DLX..GCC;TGN40..5F..GL..VN;TGN4#..GL..(GCC,TAIW);KUN40,TGN40..(DLX,GL)..PHL200501
72448PIN, FR SEAT ADJUSTER, NO.2 RH
main72448-0K010iKUN40..GL..IND;TGN40..4FC..MA;TGN40..5F..DLX..MA;TGN40..DLX..(IDN,TH);KUN40..(DLX,GL)..IDN;TGN40..GL..(IDN,IND,TH)200808-201204
72448APIN, FR SEAT ADJUSTER, NO.2 LH
72457DKNOB, VERTICAL SEAT ADJUSTER, LH
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
72503ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K050iKUN40..GL..IND;TGN40..RHD..GL;TGN40..DLX..(IDN,MA,TH);KUN40,TGN41..(DLX,GL)..(IDN,TH)200408-200812
main72503-0K080iKUN40,TGN40..STD;TGN40..5F..GL..VN;KUN40,TGN40..DLX..IND;KUN40,TGN4#..(DLX,GL)..(GCC,PHL)200408-200812
72503AARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K070iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,TH;KUN40,TGN40..STD..(PHL,VN)200808-201202
72504ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K050iKUN40..GL..IND;TGN40..RHD..GL;TGN40..DLX..(IDN,MA,TH);KUN40,TGN41..(DLX,GL)..(IDN,TH)200408-200812
main72504-0K070iKUN40,TGN40..STD;TGN40..5F..GL..VN;KUN40,TGN40..DLX..IND;KUN40,TGN4#..(DLX,GL)..(GCC,PHL)200408-200812
72504AARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0K040-A0iTGN41..GL;TGN40..LHD..5F..GL;TGN40..4FC..GL..PHL;TGN4#..DLX..(GCC,MA);KUN40..WG..GL..(IND,PHL);TGN40..(GL,STD)..(IND,MA);KUN40,TGN40..(DLX,GL)..(IDN,TH)200408-201111
IVORY,TRIM0#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main72526-0K040-E0iKUN40..GL..PHL;TGN40..LHD..5F..GL;TGN40..5F..DLX..MA;TGN40..4FC..(MA,VN);TGN40..4FC..GL..PHL;KUN40,TGN40..IDN,IND,TH200808-201202
GREGE,TRIM4#
72637GSPRING, SEATBACK, LH
72992COVER, FRONT SEAT CUSHION, LH
main72991-0K020iTGN41;KUN40..STD..IDN;KUN40..RHD..WG..GL;TGN40..4FC..GL..(IDN,TAIW,TH);KUN40,TGN40..DLX..(MA,PHL,TAIW,TH);TGN40..5F..(GL,STD)..(IDN,IND,TAIW,TH,VN)200408
443440K010SEAT, SPRING(FOR VANE PUMP)
main44344-0K010
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
791690K090ROD, REAR SEAT HINGE CONNECTOR
main79169-0K090
9011910921
main90119-10921
9016740044
main90167-40044
9052001006
main90520-01006
91621B0816
main91621-B0816
91622B1018
main91622-B1018
9616000600
main96160-00600
39 parts on this diagram · 19 diagrams in section
