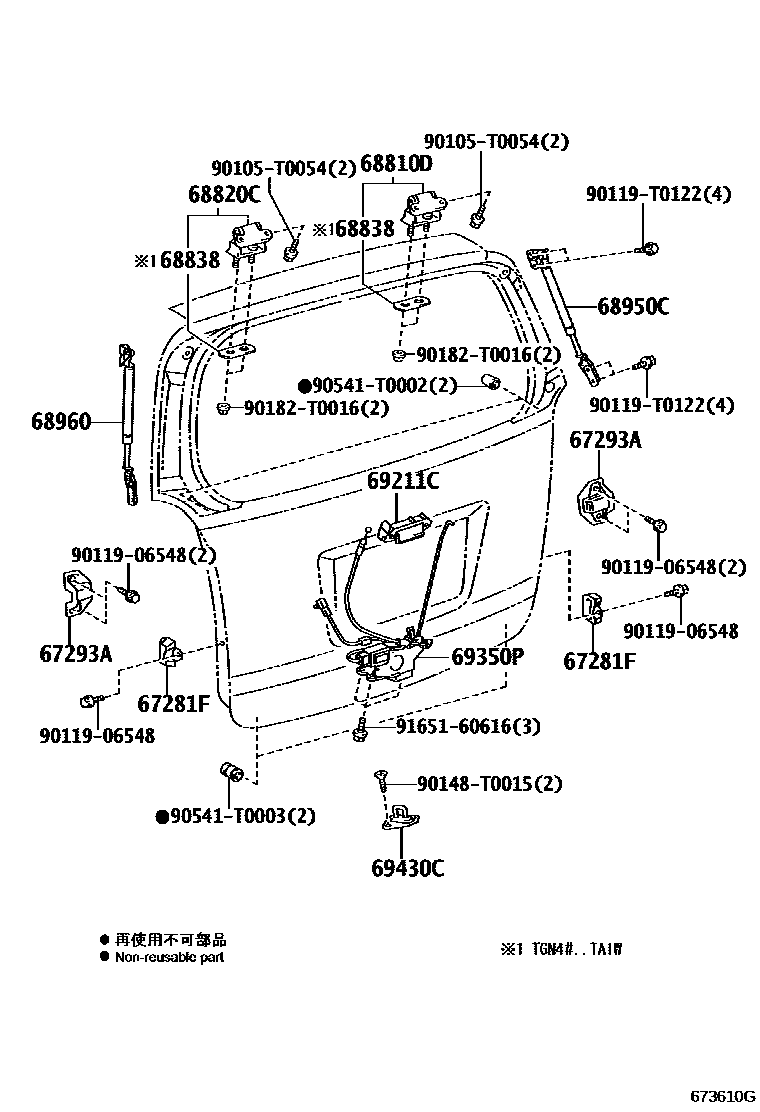

BACK DOOR LOCK & HINGE

67281FSTOPPER, BACK DOOR, LOWER

main67281-0K020iKUN40,TGN41..GCC,IDN,IND,PHL;TGN40..5F..(IDN,IND,MA,PHL,TH,VN);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH,VN)200408-200909

main67281-0K021iTGN41..TAIW200910-201006

sub67281-0K020

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-201106

main67293-0K030iKUN40,TGN40..IND201106

68810DHINGE ASSY, BACK DOOR, RH

main68810-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

main68810-0K050iKUN40,TGN40..IND200502-200812

main68810-21050iTGN4#..TAIW200707-201606

68820CHINGE ASSY, BACK DOOR, LH

main68810-0K040iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200809

main68810-0K050iKUN40,TGN40..IND200502-200812

main68810-21050iTGN4#..TAIW200707-201606

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iTGN4#..TAIW200707

68950CSTAY ASSY, BACK DOOR, RH

main68950-0K030iTGN41;TGN40..MA,TH;KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..(DLX,GL)..(IDN,PHL,VN)200408-200804

sub68950-0K070

main68950-0K040iKUN40,TGN40..STD..(IDN,PHL,VN)200408-200804

sub68950-0K080

main68950-0K050iKUN40,TGN40..GL..IND200502-200804

REAR WINDOW DEFOGGER-WITH

sub68950-0K090

main68950-0K060iKUN40,TGN40..(DLX,STD)..IND200502-200804

sub68950-0K100

main68950-0K070iKUN40..DLX..HDCR..PHL200805-201111

sub68950-0K130

sub68950-0K210

main68950-0K080iKUN40..STD..IDN;TGN40..STD..(IDN,PHL,VN)200805-201111

sub68950-0K081

sub68950-0K140

sub68950-0K220

main68950-0K090iKUN40,TGN40..GL..IND200805-201111

REAR WINDOW DEFOGGER-WITH

sub68950-0K091

sub68950-0K150

sub68950-0K230

main68950-0K100iKUN40,TGN40..(DLX,STD)..IND200805-201111

sub68950-0K101

sub68950-0K160

sub68950-0K240

main68950-0K210iKUN40,TGN40..(DLX,GL)..(PHL,VN)201111

sub68950-0K211

main68950-0K210iTGN40..DLX..TAIW201111-201210

AIR CONDITIONER DUAL

sub68950-0K211

main68950-0K211iTGN40..DLX201211

AIR CONDITIONER DUAL

main68950-0K220iTGN40..(DLX,STD)..TAIW201111-201210

sub68950-0K221

main68950-0K221iTGN40..DLX,STD201211

main68950-0K230iKUN40,TGN40..GL..IND201111

REAR WINDOW DEFOGGER-WITH

sub68950-0K231

main68950-0K240iKUN40,TGN40..(DLX,STD)..IND201111

sub68950-0K241

68960STAY ASSY, BACK DOOR, LH

main68960-0K030iTGN41;TGN40..MA,TH;KUN40..(DLX,GL)..(IDN,PHL,TH);TGN40..(DLX,GL)..(IDN,PHL,VN)200408-200804

sub68960-0K070

main68960-0K040iKUN40,TGN40..STD..(IDN,PHL,VN)200408-200804

sub68960-0K080

main68960-0K050iKUN40,TGN40..GL..IND200502-200804

REAR WINDOW DEFOGGER-WITH

sub68960-0K090

main68960-0K060iKUN40,TGN40..(DLX,STD)..IND200502-200804

sub68960-0K100

main68960-0K070iTGN40..TH;TGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..(DLX,GL)..(GCC,IDN,PHL,VN)200805-201111

sub68960-0K130

sub68960-0K210

main68960-0K080iKUN40..STD..IDN;TGN40..STD..(IDN,PHL,VN)200805-201111

sub68960-0K081

sub68960-0K140

sub68960-0K220

main68960-0K090iKUN40,TGN40..DLX..IND200805-201111

REAR WINDOW DEFOGGER-WITH

sub68960-0K091

sub68960-0K150

sub68960-0K230

main68960-0K100iKUN40,TGN40..(DLX,STD)..IND200805-201111

sub68960-0K101

sub68960-0K160

sub68960-0K240

main68960-0K210iTGN40..DLX..TAIW201111-201210

AIR CONDITIONER DUAL

sub68960-0K211

main68960-0K210iKUN40,TGN40..(DLX,GL)..(PHL,VN)201111

sub68960-0K211

main68960-0K211iTGN40..DLX201211

AIR CONDITIONER DUAL

main68960-0K220iKUN40,TGN40..STD..(PHL,VN)201111-201210

sub68960-0K221

main68960-0K221iTGN40..DLX,STD201211

main68960-0K230iKUN40,TGN40..GL..IND201111

REAR WINDOW DEFOGGER-WITH

sub68960-0K231

main68960-0K240iKUN40,TGN40..(DLX,STD)..IND201111

sub68960-0K241

69211CHANDLE, BACK DOOR OUTSIDE

main69023-0K030iTGN40..5F..VN;KUN40..GL..HDCR..PHL;TGN40..IDN,IND,MA,PHL,TH;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN41..GCC,IDN,IND,TH200408-200812

main69023-13010iTGN4#..TAIW200707

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K030iKUN40..GL..HDCR..PHL;TGN41..GL..(GCC,IDN);KUN40,TGN40..IDN,MA,TH;KUN40,TGN40..LHD..(DLX,GL)..(DCR,HTWC)200408-201202

sub69350-0K200

main69350-0K040iKUN40..STD..PHL200501-201202

sub69350-0K220

main69350-0K050iKUN40,TGN40..DLX..IND200502-201201

POWER DOOR LOCK-WITH

main69350-0K060iKUN40,TGN40..(DLX,STD)..IND200502-201201

sub69350-0K240

main69350-0K080iTGN4#..TAIW200707-201308

sub69350-0K250

main69350-0K250iTGN40201309-201606

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

sub69430-0K150

main69430-0K040iKUN40,TGN40..IND200502-200812

sub69430-0K110

main69430-0K050iTGN4#..TAIW200707-201308

sub69430-0K130

main69430-0K130iTGN40201309

90105T0054

main90105-T0054

9011906548

main90119-06548

90119T0122

main90119-T0122

90148T0015

main90148-T0015

90182T0016

main90182-T0016

90541T0002

main90541-T0002

90541T0003

main90541-T0003

9165160616

main91651-60616

18 parts on this diagram · 1 diagram in section
