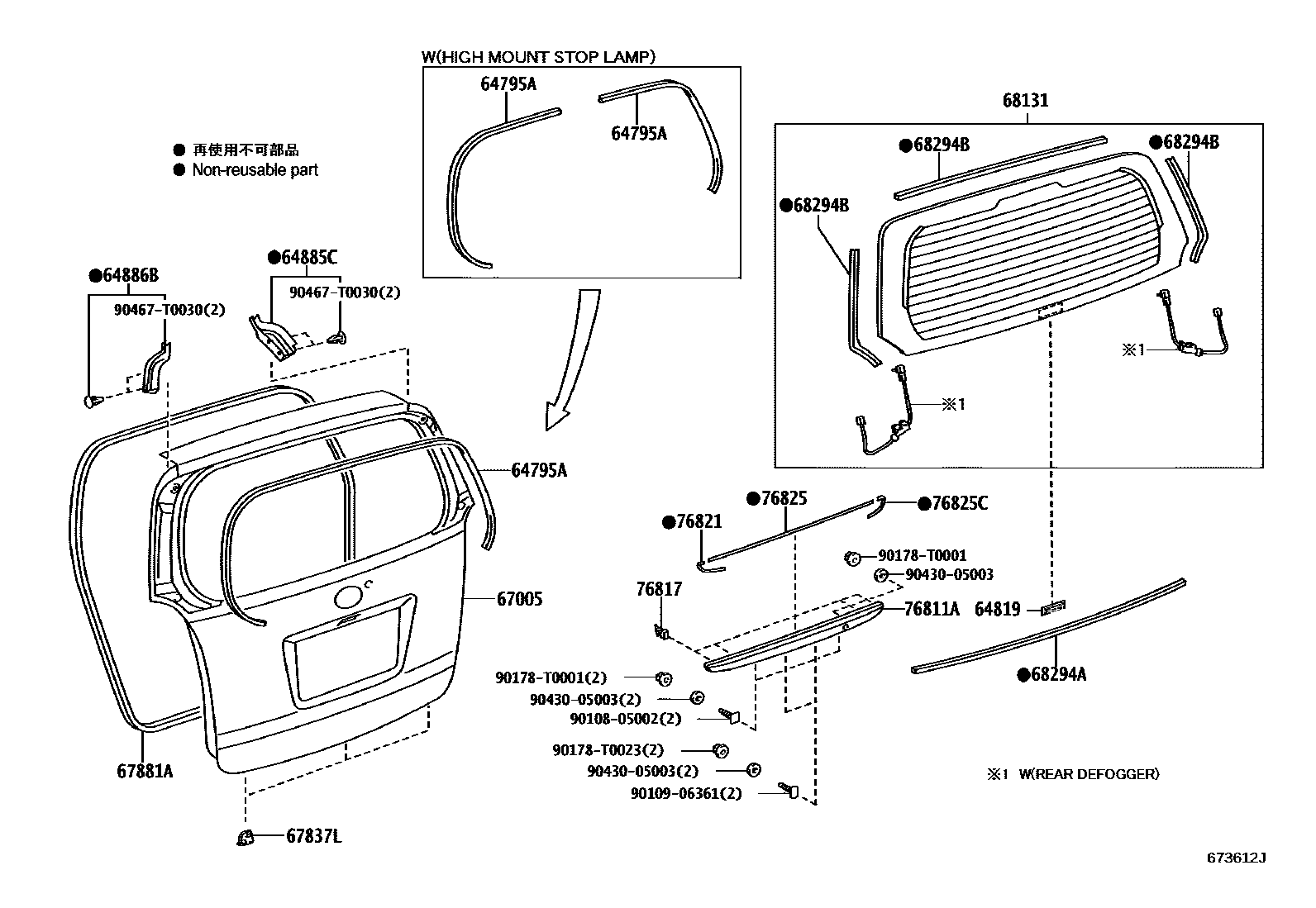

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64795ATRIM, BACK WINDOW OPENING

main64795-0K020×2iTGN41..GCC;TGN40..4FC..MA;TGN40..DLX..TH;TGN40..5F..DLX..MA;KUN40,TGN40..GL..(IDN,PHL,TH,VN)200808

main64795-0K030iTGN40..DLX..(IDN,PHL);KUN40..(DLX,LO,STD)..(IDN,PHL);TGN40..(LO,STD)..(IDN,PHL,TH,VN)200808

main64795-0K040×2iKUN40,TGN40..IND200812

main64795-0K060×2iTGN4#..TAIW200707

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0K050iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0K030iTGN40..5F..VN;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408-200909

main64885-0K040iKUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH,VN; TGN4#..TAIW200910

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0K030iTGN40..5F..VN;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408-200909

main64886-0K040iKUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH,VN; TGN4#..TAIW200910

67005PANEL SUB-ASSY, BACK DOOR

main67005-0K030iKUN40,TGN40..(LO,STD)..(IDN,PHL,VN)200808-200911

main67005-0K031iKUN40,TGN40..(LO,STD)..(IDN,PHL,VN)200912

main67005-0K040iKUN40,TGN40..DLX..IDN; TGN41..GCC;TGN40..4FC..MA;TGN40..DLX..TH;TGN40..5F..DLX..MA;KUN40,TGN40..GL..(IDN,PHL,TH,VN)200808-200911

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

main67005-0K041iTGN41..GCC;TGN40..DLX..(MA,TH);KUN40,TGN40..GL..(IDN,MA,PHL,TH,VN)200912

main67005-0K050iKUN40,TGN40..(DLX,STD)..IND200812-200911

main67005-0K051iKUN40,TGN40..(DLX,STD)..IND200912

main67005-0K070iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200812-200911

REAR WINDOW DEFOGGER-WITH

main67005-0K071iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200912

REAR WINDOW DEFOGGER-WITH

main67005-0K080iTGN41..TAIW200707-200911

main67005-0K081iTGN41..TAIW;TGN40..GL..TAIW200912-201606

main67005-0K090iKUN40,TGN40..STD..IDN200607-200808

main67005-0K110iTGN41..GCC;KUN40..DLX..IDN;KUN40..DLX..DCR..PHL;TGN40..(DLX,STD)..TH;TGN40..DLX..(IDN,PHL)200408-200809

main67005-0K111iTGN40..STD..TH;KUN40,TGN40..DLX..(IDN,PHL)200912

main67005-0K220iTGN40..(DLX,STD)..TAIW201111-201606

main67005-0K091iKUN40..STD..IDN200912-201107

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH

67837LSEAL, DOOR DUST PROOF

main67837-0K020×3iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200505-200808

main67837-0K050×3iTGN40..MA200809-201110

67881AWEATHERSTRIP, BACK DOOR

main67881-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

68131GLASS, BACK DOOR

main68105-0K030iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

*TT,T=3.1,GREEN

main68105-0K040iTGN41..GCC;TGN40..4FC..MA;TGN40..DLX..TH;TGN40..5F..DLX..MA;KUN40,TGN40..GL..(IDN,PHL,TH,VN)200808-201204

*EHTT,T=3.1,GREEN

main68105-0K050iKUN40..STD..IND200812-201204

*TT,T=3.1,CLEAR

main68105-0K070supersedes 68105-0K060iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

*EHTT,T=3.1,GREEN; *EHTT,T=3.1,GREEN,REAR WINDOW DEFOGGER-WITH

main68105-0K100iTGN4#..GL..TAIW200707

*TT,T=3.1,PRIVACY

main68105-0K110iTGN41..(DLX,STD)..TAIW200707-201111

*TT,T=3.1,GREEN

main68105-0K180iTGN40..(DLX,STD)..TAIW201111

*TT,T=3.1,GREEN

main68105-0K170iTGN40..DLX..TAIW201111

*TT,T=3.1,PRIVACY,TIRE & DISC WHEEL-205/65R15 6JJ ALMINIUM

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-0K060iKUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);KUN40..(DLX,GL)..DCR..PHL;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

68294BDAM, BACK DOOR GLASS ADHESIVE

main68294-0K040iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

UPR

main68294-0K050iKUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);KUN40..(DLX,GL)..DCR..PHL;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

RH

main68294-0K100iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

LH

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-0K040iTGN40..5F..GL..VN;KUN40,TGN4#..WG..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200408-201606

PLATED

main76811-0K902iKUN40,TGN40..STD..(IND,PHL)200809-201202

PAINT REQ.

main76811-0K903iKUN40,TGN4#..DLX..(GCC,IDN,TH)200408-200808

PAINT REQ.

main76811-0K908iTGN40..DLX..PHL;KUN40..DLX..(IND,PHL);KUN40,TGN41..(DLX,LO,STD)..(GCC,IDN);TGN40..(DLX,LO,STD)..(IDN,IND,MA,TH,VN)200808-201202

PAINT REQ.

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0K020×4iTGN40201403

(L)

main76817-12070×4iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76835-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

9010805002

main90108-05002

9010906361

main90109-06361

90178T0001

main90178-T0001

90178T0023

main90178-T0023

9043005003

main90430-05003

90467T0030

main90467-T0030

21 parts on this diagram · 2 diagrams in section
