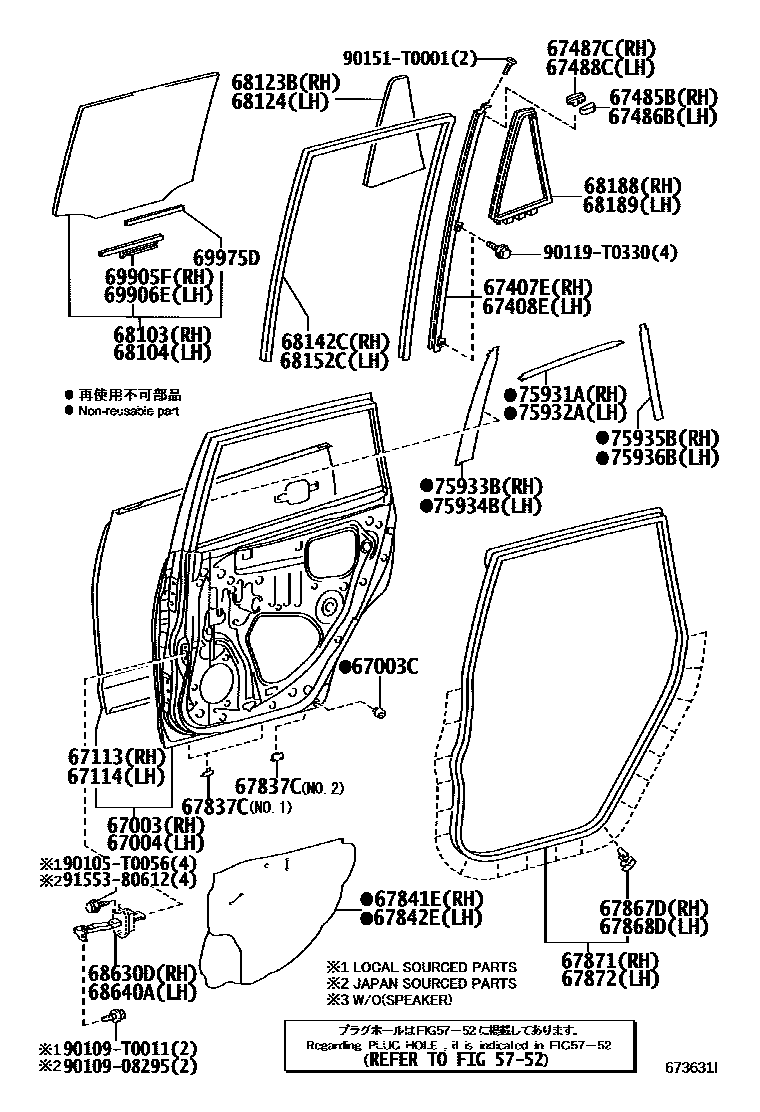

REAR DOOR PANEL & GLASS
5752HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
main67004-0K030iKUN40..IDN;TGN4#..IDN,MA,PHL,VN;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL200408-200809
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
main67114-0K030iKUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201606
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
main67407-0K030iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
main67407-71010iKUN40..IND;TGN40..5F..VN;TGN40..IND,MA,PHL;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL200501-200812
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
main67408-0K030iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH
main67485-0K010iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH
main67486-0K010iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
67487CSEAL, REAR DOOR REAR GUIDE, RH
main67487-0K010iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
67488CSEAL, REAR DOOR REAR GUIDE, LH
main67488-0K010iTGN40..4FC..(DLX,GL)..(IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
67837CSEAL, REAR DOOR DUST PROOF
NO.1
main67837-71010×4iTGN40..5F..VN;KUN40..GL..HDCR..PHL;TGN40..IDN,IND,MA,PHL,TH;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN41..GCC,IDN,IND,TH200505-200812
NO.1
NO.2
67841ECOVER, REAR DOOR SERVICE HOLE, RH
main67841-0K080iTGN40..IND,TH,VN;TGN40..5F..DLX..MA;TGN40..4FC..(MA,PHL);TGN40..5F..(DLX,GL)..PHL;KUN40,TGN41..(DLX,GL)..(GCC,IND,PHL)200808
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.1,GREEN
*TEM,T=3.1,CLEAR
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,TIRE & DISC WHEEL-205/65R15 6JJ ALMINIUM
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.1,GREEN
*TEM,T=3.1,CLEAR
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,TIRE & DISC WHEEL-205/65R15 6JJ ALMINIUM
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TT,T=3.1,GREEN
*TEM,T=3.1,CLEAR
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,TIRE & DISC WHEEL-205/65R15 6JJ ALMINIUM
68124GLASS, REAR DOOR WINDOW, LH
main68124-0K030iKUN40..IDN,TH;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809
*TT,T=3.1,GREEN
*TEM,T=3.1,CLEAR
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,TIRE & DISC WHEEL-205/65R15 6JJ ALMINIUM
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
main68188-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
main68189-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH)200408
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
main68640-0K040iKUN40..IDN,TH;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
main69975-0K090×2iKUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201606
75931ATAPE, BLACK OUT, OUTER UPPER RH
main75931-0K010iTGN40..4FC..GL..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..GL..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN)200808
75932ATAPE, BLACK OUT, OUTER UPPER LH
main75932-0K010iTGN40..4FC..GL..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..GL..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN)200808
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
75935BTAPE, BLACK OUT, OUTER REAR RH
75936BTAPE, BLACK OUT, OUTER REAR LH
90105T0056
main90105-T0056
9010908295
main90109-08295
90109T0011
main90109-T0011
90119T0330
main90119-T0330
90151T0001
main90151-T0001
9155380612
main91553-80612
44 parts on this diagram · 2 diagrams in section
