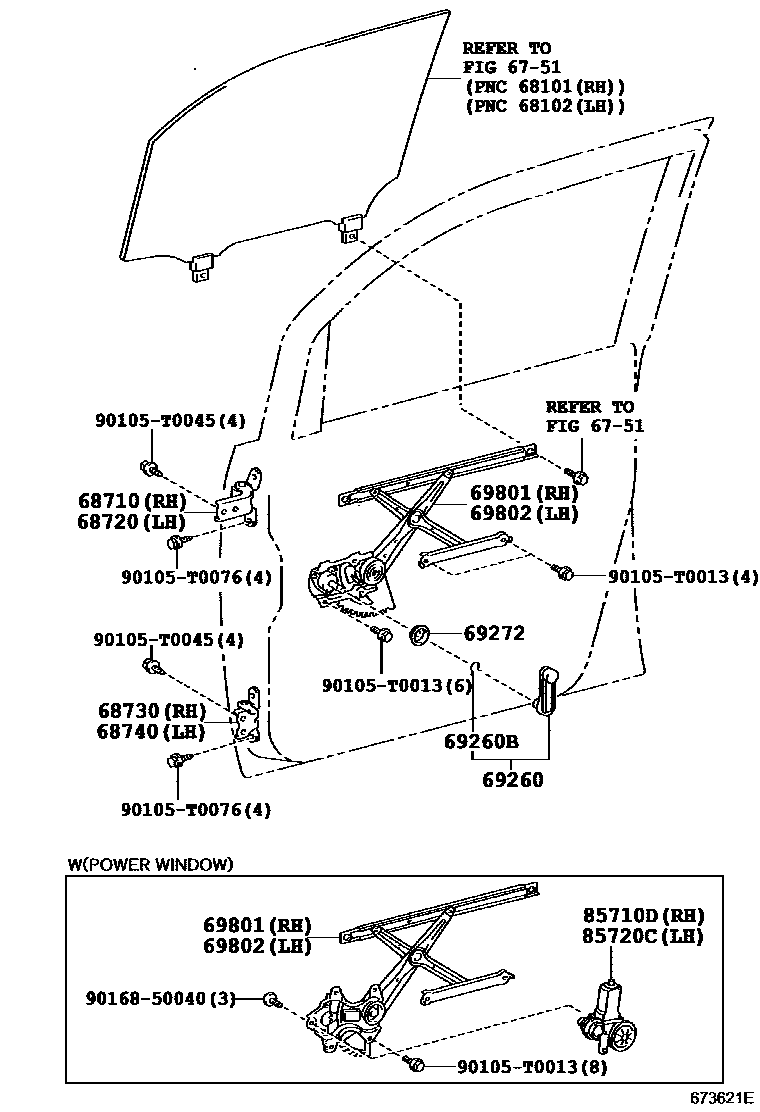

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iTGN4#..TAIW200707-201606

main68710-0K020iKUN40..IDN,TH;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main68710-0K030iKUN40,TGN40..IND200812-201201

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iTGN4#..TAIW200707-201606

main68720-0K020iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

main68720-0K030iKUN40,TGN40..IND200812

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0K020iKUN40..IDN,TH;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main68730-0K030iKUN40,TGN40..IND200812

main68730-52010iTGN4#..TAIW200707-201606

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0K020iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

main68740-0K030iKUN40,TGN40..IND200812

main68740-52010iTGN4#..TAIW200707-201606

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-0K030-A0×2iKUN40,TGN40..(DLX,STD)..IND200502-200812

IVORY,TRIM0#

main69260-0K030-E0×2iKUN40,TGN40..(DLX,STD)..IND200812-201201

GREGE,TRIM4#

main69260-0K050-A0×2iTGN41..DLX..GCC200708-200808

IVORY,TRIM0#

main69260-0K050-B0×2iTGN40..STD..VN200809-201202

GRAY,TRIM1#

main69260-0K050-E0×2iKUN40,TGN40..LO;TGN4#..(DLX,STD)..(GCC,VN)200808-201107

GREGE,TRIM4#

main69260-22030-B8×2iKUN40..STD..PHL200501-200808

GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iTGN40..DLX..IND;KUN40..(DLX,STD)..IND200501-200812

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020×2iKUN40,TGN40..LO;TGN4#..(DLX,STD)..(GCC,VN)200808

main69285-22010×2iTGN40..DLX..IND;TGN40..STD..(IND,PHL);KUN40..(DLX,STD)..IND200501-200812

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K030iTGN41..GL..GCC;TGN40..5F..DLX..MA;KUN40..(DLX,GL)..PHL;TGN40..4FC..(MA,PHL,VN);TGN40..LHD..5F..(DLX,GL);KUN40,TGN40..(DLX,GL,STD)..(IDN,TH)200808

main69801-0K040iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200812

POWER DOOR LOCK-WITH

main69801-0K060iTGN4#..TAIW200707

main69810-0K050iTGN40..LHD..STD;TGN41..DLX..GCC200501-200809

main69810-0K070iKUN40,TGN40..(DLX,STD)..IND200502-200812

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K030iTGN41..GL..GCC;TGN40..5F..DLX..MA;KUN40..(DLX,GL)..PHL;TGN40..4FC..(MA,PHL,VN);TGN40..LHD..5F..(DLX,GL);KUN40,TGN40..(DLX,GL,STD)..(IDN,TH)200808

main69802-0K040iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200502-200812

POWER DOOR LOCK-WITH

main69802-0K060iTGN4#..TAIW200707

main69820-0K050iKUN40,TGN40..LO;TGN41..DLX..GCC;KUN40,TGN40..STD..(PHL,VN)200808

main69820-0K070iKUN40,TGN40..(DLX,STD)..IND200502-200812

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02380iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200904

POWER DOOR LOCK-WITH

main85710-06090iTGN4#..TAIW200707

main85710-0K010iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200808-200903

POWER DOOR LOCK-WITH

main85710-0K030iTGN40..5F..DLX..MA;TGN40..4FC..(MA,TH);KUN40,TGN40..(DLX,GL,STD)..IDN200808-201110

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02360iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200904

POWER DOOR LOCK-WITH

main85720-06120iTGN4#..(DLX,STD)..TAIW200707

main85720-0K010iKUN40,TGN40..DLX..IND; KUN40,TGN40..GL..IND200808-200903

POWER DOOR LOCK-WITH

main85720-0K050iKUN40,TGN40..(DLX,GL)..PHL200909

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

16 parts on this diagram · 2 diagrams in section
