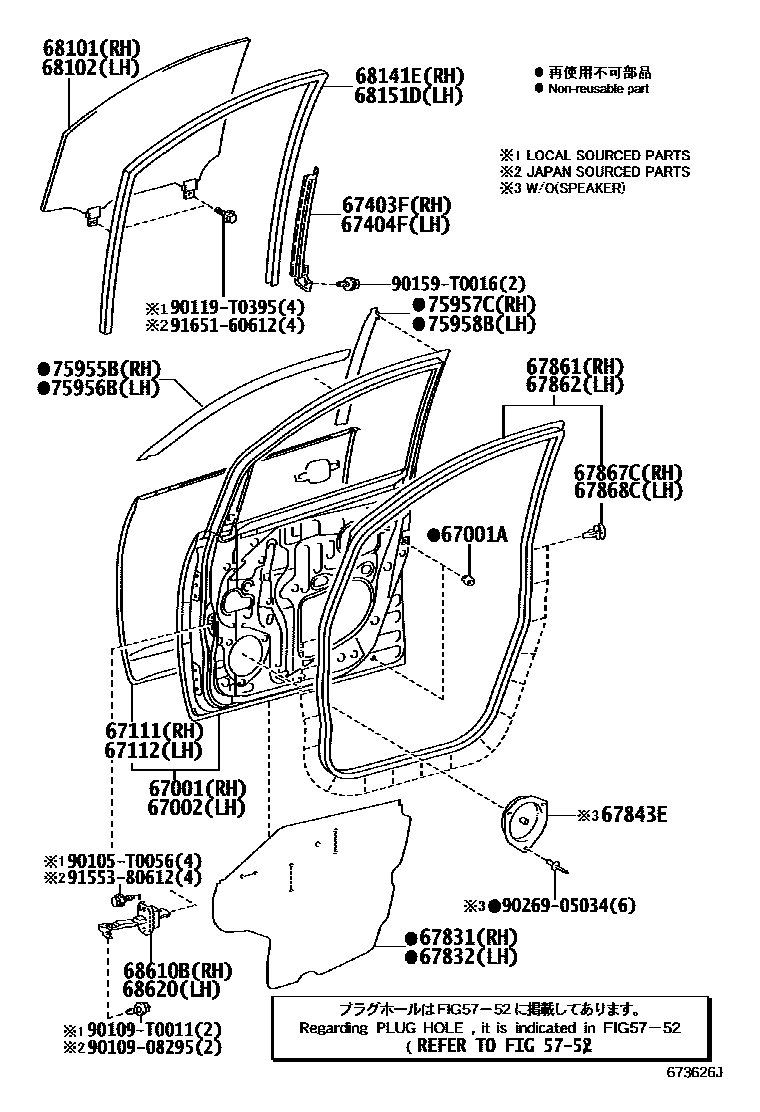

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K030iKUN40..IDN;TGN4#..IDN,MA,PHL,VN;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL200408-200809

main67001-0K040iKUN40,TGN4#..GCC,TH200411-200808

main67001-0K050iKUN40,TGN40..IND200812-200907

main67001-0K100iTGN4#..TAIW200707-201606

main67001-0K120iKUN40,TGN40..IND200907-201004

main67001-0K121iKUN40,TGN40..IND201004

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4iTGN41..GCC200408-200508

main90541-09124×4iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K030iKUN40..IDN;TGN4#..IDN,MA,PHL,VN;KUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL200408-200809

main67002-0K040iKUN40,TGN4#..GCC,TH200411-200808

main67002-0K050iKUN40,TGN40..IND200502-200812

main67002-0K100iTGN4#..TAIW200707-201606

main67002-0K120iKUN40,TGN40..IND200907-201004

main67002-0K121iKUN40,TGN40..IND201004

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K030iKUN40..GL..HDCR..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408-201606

main67111-0K040iKUN40,TGN40..IND200502-200812

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

main67112-0K040iKUN40,TGN40..IND200502-200812

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K020iTGN40..5F..VN;KUN40..GL..HDCR..PHL;TGN40..IDN,IND,MA,PHL,TH;KUN40..(DLX,GL)..DCR..PHL;KUN40,TGN41..GCC,IDN,IND,TH200408-200812

main67403-0K030iTGN4#..TAIW200707

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K020iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

main67404-0K030iTGN4#..TAIW200707

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K050iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0K050iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

67843ECOVER, FRONT DOOR SERVICE HOLE, NO.2

main67843-60030×2iKUN40..STD..IND200702-200812

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main67861-0K031iKUN40,TGN4#..IDN200508-200511

main67861-0K040iKUN40,TGN40..IND200502-200812

main67861-0K060iTGN4#..TAIW200707-201606

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K030iKUN40,TGN4#..GCC,MA,PHL,TH200508-200511

main67862-0K031iKUN40,TGN4#..IDN200508-200511

main67862-0K040iKUN40,TGN40..IND200502-200812

main67862-0K060iTGN4#..TAIW200707-201606

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0B010×17iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

main67867-12150×17iKUN40,TGN40..IND200812

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iKUN40,TGN40..IND200812

main67868-0B010×17iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201112

*TT,T=3.5,GREEN

main68101-0K051iKUN40,TGN40..PHL,VN201112

*TT,T=3.5,GREEN

main68101-0K060iKUN40,TGN40..STD..IND200502-200812

*TT,T=3.5,CLEAR

main68101-0K061iKUN40..STD..IND201112

*TT,T=3.5,CLEAR

main68101-0K090iKUN40,TGN40..(DLX,GL)..IND200812-201112

*TEM,T=3.5,GREEN

main68101-0K091iKUN40,TGN40..(DLX,GL)..IND201112

*TEM,T=3.5,GREEN

main68101-0K100iTGN4#..TAIW200707-201112

*TT,T=3.5,GREEN

main68101-0K101iTGN40..TAIW201112

*TT,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K050iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

*TT,T=3.5,GREEN

main68102-0K051iKUN40,TGN40..PHL,VN201112

*TT,T=3.5,GREEN

main68102-0K060iKUN40..STD..IND200812-201112

*TT,T=3.5,CLEAR

main68102-0K061iKUN40..STD..IND201112

*TT,T=3.5,CLEAR

main68102-0K090iKUN40,TGN40..(DLX,GL)..IND200812-201112

*TEM,T=3.5,GREEN

main68102-0K091iKUN40,TGN40..(DLX,GL)..IND201112

*TEM,T=3.5,GREEN

main68102-0K100iTGN4#..TAIW200707-201112

*TT,T=3.5,GREEN

main68102-0K101iTGN40..TAIW201112

*TT,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K030iKUN40,TGN40..MA,PHL200809

main68141-0K040iKUN40,TGN40..MA,PHL200408-200506

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K030iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200506-200808

main68151-0K040iKUN40,TGN40..MA,PHL200408-200506

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201202

main68610-0K050iKUN40,TGN40..IND200812-201201

main68620-0K060iTGN4#..TAIW200707-201209

main68620-0K061iTGN40201209

68620CHECK ASSY, FRONT DOOR, LH

main68620-0K040iKUN40..STD..PHL;KUN40..DLX..HDCR..PHL200408-200808

main68620-0K050iKUN40,TGN40..IND200812-201201

main68620-0K060iTGN4#..TAIW200707-201209

main68620-0K061iTGN40201209

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-0K010iTGN41..GL;TGN40..GL..TAIW;TGN41..DLX..GCC;KUN40,TGN40..(DLX,GL)..(IDN,TH)200408

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-0K010iTGN41..GL;TGN40..GL..TAIW;TGN41..DLX..GCC;KUN40,TGN40..(DLX,GL)..(IDN,TH)200408

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-0K010iTGN40..4FC..GL..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..GL..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN)200808

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-0K010iTGN40..4FC..GL..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..GL..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL)..(GCC,IDN)200808

90105T0056

main90105-T0056

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0395

main90119-T0395

90159T0016

main90159-T0016

9026905034

main90269-05034

9155380612

main91553-80612

9165160612

main91651-60612

33 parts on this diagram · 2 diagrams in section
