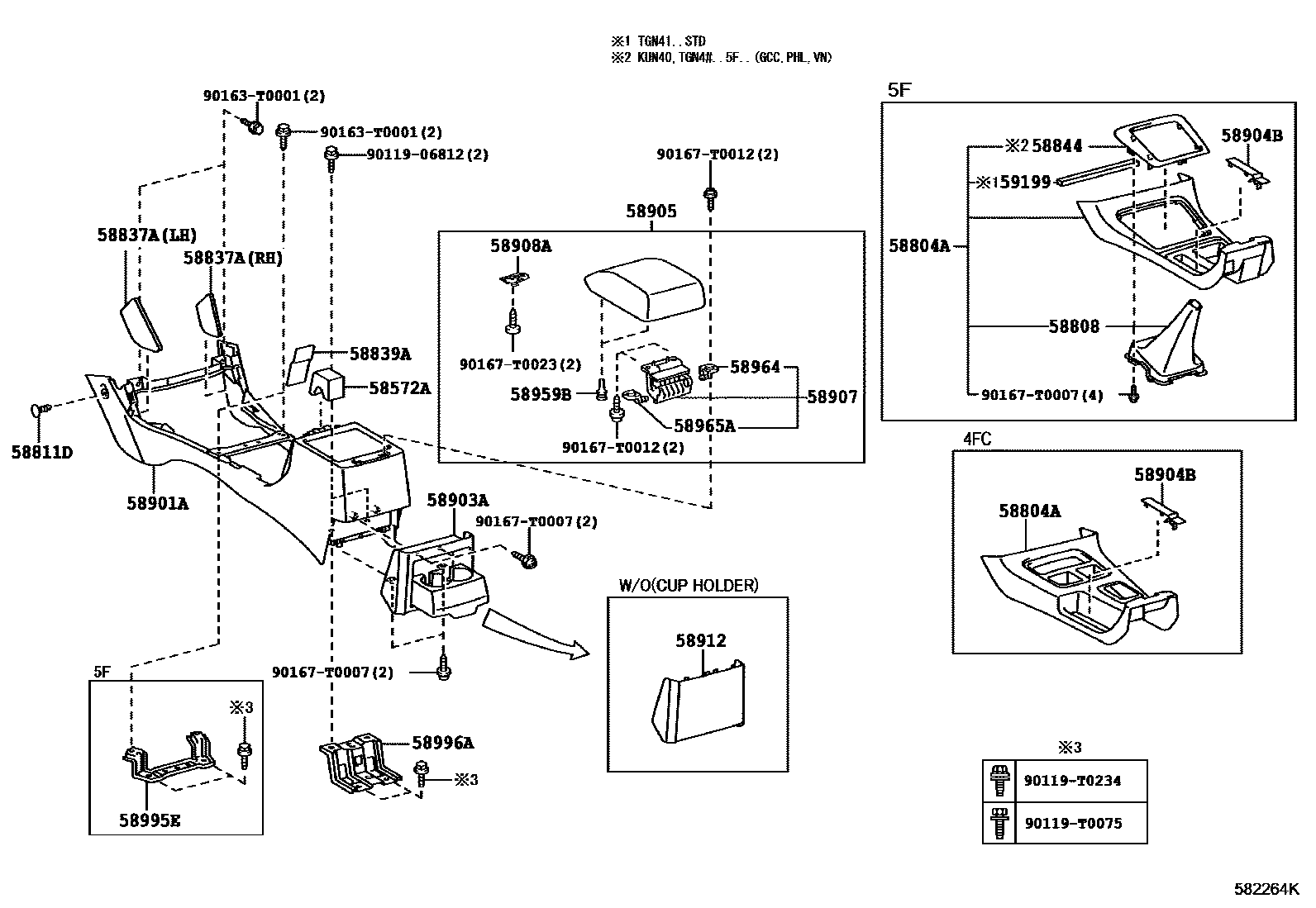

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58572ACUSHION, CONSOLE BOX

main58872-0K010iKUN40..GL..IND;TGN40..4FC..MA;TGN40..5F..DLX..MA;TGN40..DLX..(IDN,PHL,TH);TGN40..(GL,STD)..(IDN,IND,PHL,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL)200412-201202

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0K031-A0iTGN40..5F..MA200505-200809

IVORY,TRIM0#

sub58804-0K170

main58804-0K061-A0iTGN41..5F..GCC;KUN40,TGN40..LHD..5F..GL200501-200809

IVORY,TRIM0#

sub58804-0K200

main58804-0K061-B0iKUN40,TGN40..LHD..5F..(DLX,STD)200501-200809

GRAY,TRIM1#

sub58804-0K200

main58804-0K070-A0iKUN40,TGN40..5F..(DLX,GL)200408-200411

IVORY,TRIM0#

sub58804-0K071

main58804-0K070-B0iKUN40,TGN40..5F..(DLX,STD)200408-200411

GRAY,TRIM1#

sub58804-0K071

main58804-0K071-A0iKUN40,TGN40..5F..DLX..IDN;KUN40,TGN40..5F..GL..(IDN,IND)200412-200812

IVORY,TRIM0#

main58804-0K071-B0iKUN40,TGN40..STD..(IDN,TH)200412-200808

GRAY,TRIM1#

main58804-0K080-A1iKUN40,TGN40..4FC200408-200412

IVORY,TRIM0#

sub58804-0K081

sub58839-0K010

sub58872-0K010

main58804-0K081-A1iKUN40,TGN4#..RHD..4FC200412-200809

IVORY,TRIM0#

main58804-0K081-E0iTGN40..4FC..MA200808-200904

GREGE,TRIM4#

main58804-0K091-A1iTGN41..4FC..GCC;KUN40,TGN40..4FC..GL..PHL200501-200809

IVORY,TRIM0#

main58804-0K091-B1iKUN40,TGN40..4FC..DLX..PHL200608-200904

GRAY,TRIM1#

main58804-0K091-E0iTGN41..4FC..GCC;KUN40,TGN40..LHD..4FC..GL200808-200904

GREGE,TRIM4#

main58804-0K100-E0iKUN40..WG..GL..IND201004-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),GREGE,TRIM4#

main58804-0K100-E0iKUN40..WG..DLX..IND201004-201201

GREGE,TRIM4#

main58804-0K250-B0iTGN41..STD200707-201111

GRAY,TRIM1#

main58804-0K250-B1iTGN40..STD..TAIW201111-201606

DK.GRAY,TRIM1#

main58804-0K290-B0iKUN40,TGN40..5F..(DLX,STD)..(PHL,VN)200809-201202

GRAY,TRIM1#

sub58804-0K330

sub58804-0K290

main58804-0K290-E0iTGN4#..5F..(GCC,VN);KUN40,TGN40..5F..GL..PHL200808-201202

GREGE,TRIM4#

sub58804-0K330

sub58804-0K290

main58804-0K340-A0iTGN41..GL..TAIW200707-201111

IVORY,TRIM0#

main58804-0K340-B0iTGN41..DLX..TAIW200707-201111

GRAY,TRIM1#

main58804-0K340-B1iTGN40..4FC..TAIW201111-201606

DK.GRAY,TRIM1#

main58804-0K350-E0iKUN40..INDWG..GL;TGN40..5F..DLX..(IDN,MA);KUN40..(DLX,GL,STD)..DCR..IDN;TGN40..5F..(GL,STD)..(IDN,IND,TH)200808-201201

GREGE,TRIM4#

main58821-0K041-E0iKUN40,TGN40..4FC..(IDN,TH)200902-201110

GREGE,TRIM4#

main58821-0K081-B0iKUN40,TGN40..4FC..DLX..PHL200904-201202

GRAY,TRIM1#

sub58821-0K081

main58821-0K081-E0iTGN41..4FC..GCC;KUN40,TGN40..4FC..GL..(PHL,VN)200904-201202

GREGE,TRIM4#

sub58821-0K081

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0K040-B0iKUN40,TGN40..5F..DLX..PHL;KUN40,TGN4#..5F..STD..(IDN,PHL,TAIW,TH,VN)200408-201606

DK.GRAY,TRIM1#

main58808-0K040-E0iTGN41..5F..GCC;KUN40,TGN40..5F..GL;KUN40,TGN40..5F..DLX..(IDN,MA)200408-200812

SANDAL WOOD,TRIM0#

main58808-0K130-B0iKUN40,TGN40..5F..(DLX,STD)..(PHL,VN)200809-201202

DK.GRAY,TRIM1#

main58808-0K130-E0iKUN40..GL..DCR;TGN41..5F..GCC;TGN40..5F..GL..PHL;TGN40..5F..DLX..(IDN,MA);KUN40..(DLX,STD)..DCR..IDN;TGN40..5F..(GL,STD)..(IDN,IND,TH,VN)200808-201202

ASH BROWN,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-T0002-A0iTGN41..DLX..GCC200408-201111

IVORY,TRIM0#

main90467-T0002-B0iKUN40,TGN40..STD..(IDN,TH)200408-201202

GRAY,TRIM1#

main90467-T0002-B2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

main90467-T0002-E0iTGN40..LHD..5F..GL;TGN40..5F..DLX..MA;TGN40..4FC..(MA,VN);TGN40..4FC..GL..PHL;TGN40..DLX..(IDN,TH);KUN40..GL..(IND,PHL);TGN40..(GL,STD)..(IDN,IND,TH);KUN40,TGN41..(200808-201202

GREGE,TRIM4#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-0K010iKUN40..GL..IND;TGN40..4FC..MA;TGN40..5F..DLX..MA;TGN40..DLX..(IDN,PHL,TH);KUN40,TGN41..GCC,IDN,PHL;TGN40..(GL,STD)..(IDN,IND,PHL,TH,VN)200408-201201

RH

main58837-0K010iKUN40..WG..GL..IND201004-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),RH

main58837-0K020iKUN40..WG..GL..IND200408-201201

LH

main58837-0K020iKUN40..WG..GL..IND201004-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),LH

58839ACOVER, CONSOLE BOX HOLE

main58839-0K010-A0iKUN40..WG..GL..IND;TGN40..DLX..(IDN,MA,TH);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(IDN,IND,MA,TAIW,TH)200412-201111

IVORY,TRIM0#

sub58839-0K010

main58839-0K010-B0iKUN40,TGN40..DLX..PHL;TGN41..(DLX,STD)..TAIW;KUN40,TGN40..5F..STD..(IDN,PHL,TH,VN)200412-201202

GRAY,TRIM1#

sub58839-0K010

main58839-0K010-B2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

sub58839-0K010

main58839-0K010-E0iTGN40..STD..VN200808-201202

GREGE,TRIM4#

sub58839-0K010

58844BEZEL, CONSOLE BOX

main58844-0K010-A0iTGN41..5F..GCC200501-200809

IVORY,TRIM0#

main58844-0K010-B0iKUN40,TGN40..LHD..5F..(DLX,STD)200501-200809

GRAY,TRIM1#

main58844-0K020-B0iKUN40,TGN40..5F..(DLX,STD)..(PHL,VN)200809-201202

GRAY,TRIM1#

sub58844-0K020

main58844-0K020-E0iTGN4#..5F..(GCC,VN);KUN40,TGN40..5F..GL..PHL200808-201202

GREGE,TRIM4#

sub58844-0K020

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0K010-A0iKUN40..STD..IND200502-200812

IVORY,TRIM0#

sub58901-0K010

main58901-0K010-E0iKUN40,TGN40..DLX..IND200812-201201

GREGE,TRIM4#

sub58901-0K010

main58911-0K010-A0iKUN40,TGN40..RHD..5F..GL;KUN40,TGN40..5F..DLX..(IDN,MA)200408-200812

IVORY,TRIM0#

sub58911-0K010

sub58911-0K130

main58911-0K010-B0iKUN40,TGN40..5F..DLX..PHL;KUN40,TGN40..STD..(IDN,PHL,TH,VN)200408-201202

GRAY,TRIM1#

sub58911-0K010

sub58911-0K130

main58911-0K010-E0iTGN40..LHD..5F..GL;KUN40,TGN41..5F..GL;TGN40..5F..DLX..(IDN,MA);KUN40..(DLX,STD)..DCR..IDN;TGN40..5F..(GL,STD)..(IDN,IND,TH)200808-201202

GREGE,TRIM4#

sub58911-0K010

sub58911-0K130

main58911-0K020-A0iKUN40,TGN4#..RHD..4FC200408-200809

IVORY,TRIM0#

sub58911-0K010

main58911-0K020-B0iKUN40,TGN40..4FC..DLX200408-200412

GRAY,TRIM1#

sub58911-0K010

main58911-0K020-E0iKUN40,TGN40..RHD..4FC200808-201110

GREGE,TRIM4#

sub58911-0K010

main58911-0K050-A0iTGN41..4FC..DLX..GCC200501-200809

IVORY,TRIM0#

sub58911-0K010

sub58911-0K160

main58911-0K050-B0iKUN40,TGN40..4FC..DLX..PHL200608-201202

GRAY,TRIM1#

sub58911-0K010

sub58911-0K160

main58911-0K050-E0iTGN41..4FC..GCC;KUN40,TGN40..4FC..GL..(PHL,VN)200808-201202

GREGE,TRIM4#

sub58911-0K010

sub58911-0K160

main58911-0K110-B0iTGN41..STD200707-201111

GRAY,TRIM1#

sub58911-0K111

main58911-0K110-B1iTGN40..STD..TAIW201111-201406

DK.GRAY,TRIM1#

sub58911-0K111

main58911-0K111-B1iTGN40..STD201407-201606

DK.GRAY,TRIM1#

main58911-0K120-A0iTGN41..GL..TAIW200707-201111

IVORY,TRIM0#

sub58911-0K121

main58911-0K120-B0iTGN41..DLX..TAIW200707-201111

GRAY,TRIM1#

sub58911-0K121

main58911-0K120-B1iTGN40..4FC..TAIW201111-201406

DK.GRAY,TRIM1#

sub58911-0K121

main58911-0K121-B1iTGN40..4FC201407-201606

DK.GRAY,TRIM1#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0K010-A0iKUN40,TGN40..GL200408-201111

IVORY,TRIM0#

sub58903-0K010

main58903-0K010-B2iTGN40..GL..TAIW201111-201606

DK.GRAY,TRIM1#

sub58903-0K010

main58903-0K010-E0iTGN40..4FC..GL..MA;KUN40,TGN4#..GL..(GCC,IDN,IND,PHL,TH,VN)200808-201202

GREGE,TRIM4#

sub58903-0K010

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-0K010-A0iTGN40..5F..GL..VN;TGN40..DLX..(IDN,MA,TH);KUN40..WG..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);KUN40,TGN41..DLX..(DCR,HTWC)..(GCC,PHL);TGN4#..GL..(GCC,IDN,IND,MA,PHL,200408-201111

IVORY,TRIM0#

sub58904-0K010

main58904-0K010-B0iKUN40,TGN40..(DLX,STD)..(PHL,VN)200408-201202

GRAY,TRIM1#

sub58904-0K010

main58904-0K010-B2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

sub58904-0K010

main58904-0K010-E0iTGN40..4FC..MA;TGN40..GL..PHL;TGN40..5F..DLX..MA;KUN40..GL..(IND,PHL);TGN40..DLX..(IDN,TH);TGN40..(GL,STD)..(IDN,IND,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN)200808-201202

GREGE,TRIM4#

sub58904-0K010

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0K010-A0iTGN40..5F..GL..VN;TGN40..DLX..(IDN,MA,TH);KUN40..WG..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200408-201111

IVORY,TRIM0#

sub58905-0K010

main58905-0K010-B0iTGN41..DLX..GCC200408-201111

GRAY,TRIM1#

sub58905-0K010

main58905-0K010-B2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

sub58905-0K010

main58905-0K010-E0iKUN40,TGN40..GL..IND200808-201201

GREGE,TRIM4#

sub58905-0K010

main58905-0K030-B0iKUN40,TGN40..(DLX,STD)..(PHL,VN)201008-201202

GRAY,TRIM1#

main58905-0K030-E0iKUN40,TGN40..GL..(PHL,VN);KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,TH)201008-201202

GREGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-0K050iKUN40..WG..GL..IND201012-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER)

main58907-12050iTGN40..GL..IND;KUN40..INDWG..GL200408-201201

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iTGN40..DLX..(TAIW,TH);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL);KUN40,TGN40..WG..GL..(DCR,HTWC)..(IND,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH);TGN40..5F..200408-201606

58912BOX, REAR CONSOLE, NO.2

main58912-0K020-A0iKUN40,TGN4#..DLX..(GCC,IDN,MA,TH)200408-200809

IVORY,TRIM0#

sub58912-0K020

main58912-0K020-B0iKUN40,TGN40..(DLX,STD)..(PHL,VN)200408-201202

GRAY,TRIM1#

sub58912-0K020

main58912-0K020-B2iTGN40..(DLX,STD)..TAIW201111-201606

DK.GRAY,TRIM1#

sub58912-0K020

main58912-0K020-E0iTGN40..STD..VN200808-201110

GREGE,TRIM4#

sub58912-0K020

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-04079iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,PHL,TH,VN)200408-201201

main90541-04079iKUN40..WG..GL..IND201109-201201

(J)

main90541-04079iKUN40..WG..GL..IND201109-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(J)

main90541-T0008iKUN40..WG..GL..IND201109-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(L)

main90541-T0008iKUN40..WG..GL..IND201109-201201

(L)

main90541-T0008iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,TH,VN)201008-201202

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-0K020iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,TH,VN)201008-201202

main58964-0K050iKUN40..WG..GL..IND201012-201201

(L)

main58964-0K050iKUN40..WG..GL..IND201012-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(L)

main58964-20030iKUN40..WG..GL..IND201004-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(J)

sub58964-0K020

main58964-20030iKUN40..WG..DLX..IND200808-201201

(J)

sub58964-0K020

main58964-20030iTGN40..DLX..(TAIW,TH);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL);KUN40,TGN40..WG..GL..(DCR,HTWC)..(IND,TAIW,TH);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH);TGN40..5F..200408-201201

sub58964-0K020

main58964-20030iKUN40..GL..IND200904-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER)

sub58964-0K020

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-0K040iKUN40,TGN4#..(DLX,GL,STD)..(GCC,IDN,MA,PHL,TH,VN)201008-201202

main58965-0K070iKUN40..WG..DLX..IND201012-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(L)

main58965-0K070iKUN40..WG..DLX..IND201012-201201

(L)

main58965-20040iKUN40..INDWG..GL200408-201201

sub58965-0K040

main58965-20040iKUN40..IDN;TGN40..4FC..MA;TGN40..DLX..(IDN,TH);TGN40..5F..DLX..(MA,PHL);KUN40,TGN41..GL..(GCC,IND,PHL);TGN40..(GL,STD)..(IDN,IND,PHL,TH,VN);KUN40,TGN41..5F..(DLX,ST200808-201201

(J)

sub58965-0K040

main58965-20040iKUN40..GL..IND200904-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER)

sub58965-0K040

main58965-20040iKUN40..WG..GL..IND201004-201201

CONSOLE BOX-WITH(COMPARTMENT DOOR & REAR CUP HOLDER),(J)

sub58965-0K040

58995EBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0K010iTGN40..GL..IND;KUN40..WG..GL..DCR;KUN40..(DLX,STD)..DCR..(IDN,PHL);TGN4#..5F..(DLX,GL,STD)..(GCC,IDN,MA,PHL,TAIW,TH,VN)200408-201202

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0K010iKUN40..STD..IND200408-201202

59199SEAL, NOISE SHUTTER(CONSOLE BOX)

main59199-0K010iTGN40..GL..IND;KUN40..RHD..WG..GL..DCR;TGN40..5F..(DLX,GL,STD)..(IDN,TAIW,TH);KUN40,TGN41..5F..(DLX,STD)..(IDN,TAIW)200408-201009

9011906812

main90119-06812

90119T0075

main90119-T0075

90119T0234

main90119-T0234

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90167T0023

main90167-T0023

27 parts on this diagram · 3 diagrams in section
