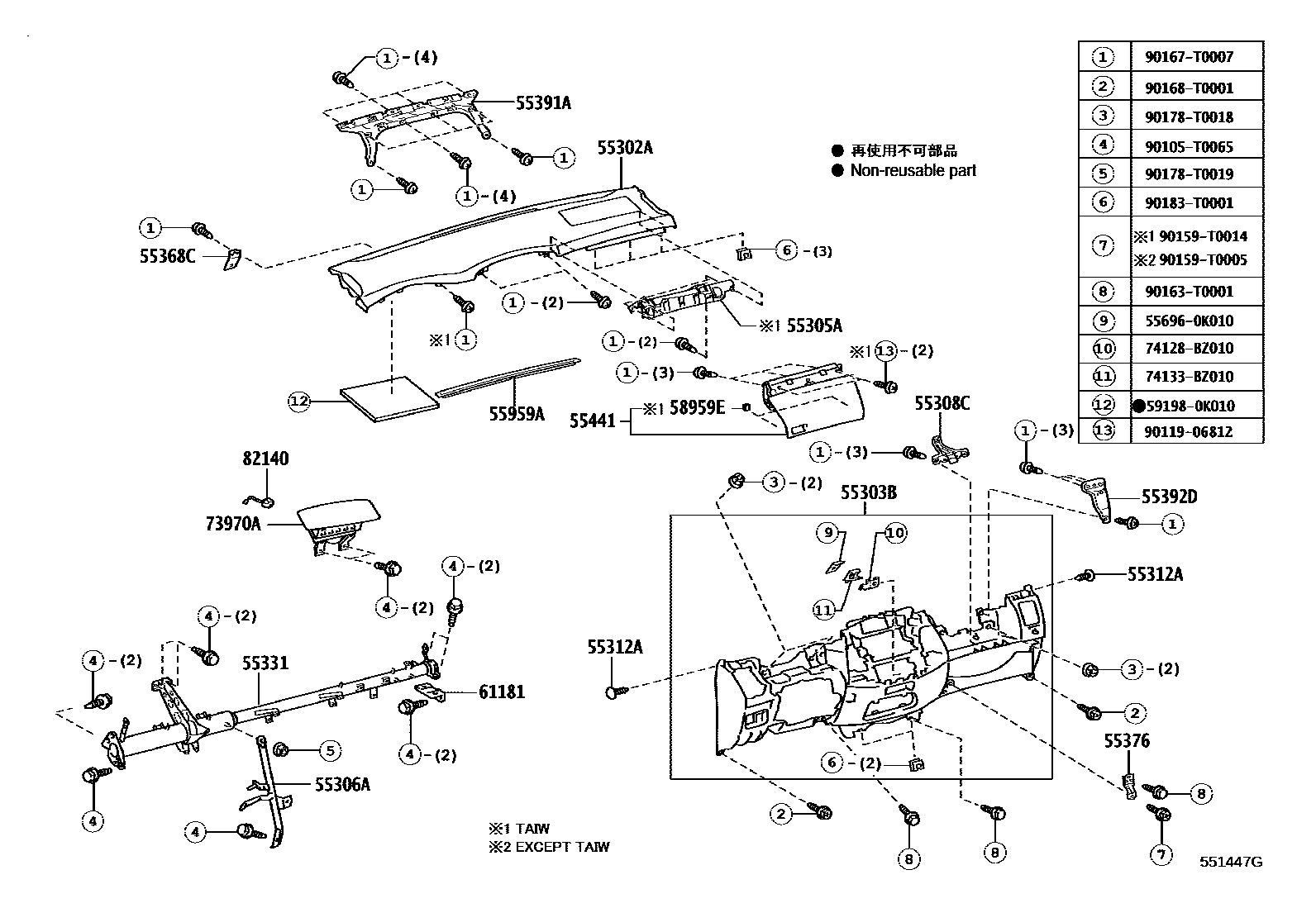

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0K030-B0iKUN40,TGN40..STD..(IDN,TH)200408-200808

DK.GRAY,TRIM1#

main55302-0K030-E0iTGN40..DLX..TH;KUN40,TGN4#..(DLX,GL)..(IDN,MA)200408-200809

SANDAL WOOD,TRIM0#

main55302-0K030-E1iKUN40,TGN40..(DLX,STD)..(IDN,MA,TH)200808-201110

ASH BROWN,TRIM4#

main55302-0K040-E0iKUN40,TGN40..GL..TH200411-200808

SANDAL WOOD,TRIM0#

main55302-0K040-E1iTGN40..4FC..GL..MA;KUN40,TGN40..GL..(IDN,TH)200808-201110

ASH BROWN,TRIM4#

main55302-0K050-B0iKUN40,TGN40..LHD..(DLX,STD)..(DCR,HTWC)200501-200809

DK.GRAY,TRIM1#

main55302-0K050-E0iKUN40..DLX..DCR..PHL;TGN4#..(DLX,GL)..(GCC,VN)200501-200809

SANDAL WOOD,TRIM0#

main55302-0K060-E0iKUN40,TGN40..GL..PHL200709-200809

SANDAL WOOD,TRIM0#

main55302-0K070-E0iKUN40,TGN40..DLX..IND; KUN40,TGN40..STD..IND200502-200812

SANDAL WOOD,TRIM0#

main55302-0K070-E1iKUN40,TGN40..(DLX,STD)..IND200812-201201

ASH BROWN,TRIM4#

main55302-0K080-E0iKUN40,TGN40..GL..IND200502-200812

SANDAL WOOD,TRIM0#

main55302-0K080-E1iTGN40..GL..IND;KUN40..INDWG..GL200812-201201

ASH BROWN,TRIM4#

main55302-0K090-B0iTGN4#..TAIW200910-201606

DK.GRAY,TRIM1#

main55302-0K100-B0iTGN41..(DLX,STD)..TAIW200707-200910

DK.GRAY,TRIM1#

main55302-0K110-B0iKUN40,TGN40..(DLX,STD)..(PHL,VN)200809-201202

DK.GRAY,TRIM1#

main55302-0K120-E0supersedes 55302-0K110-E0iKUN40,TGN40..GL..(PHL,VN)200809-201202

ASH BROWN,TRIM4#

main55302-0K150-E0iKUN40,TGN40..LO200908-201107

ASH BROWN,TRIM4#

main55302-0K160-E0iKUN40..WG..GL..IND201004-201201

ASH BROWN,TRIM4#

main55302-0K090-E0supersedes 55302-0K100-E0iTGN41..GL..TAIW200707-200910

SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0K030-A0iKUN40,TGN4#..(DLX,GL)..(IDN,MA,TH)200408-200809

IVORY,TRIM0#

main55303-0K030-B0iKUN40,TGN40..STD..(IDN,TH)200408-200808

GRAY,TRIM1#

main55303-0K030-E0iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..(DLX,GL,STD)..(IDN,TH)200808-201110

GREGE,TRIM4#

main55303-0K040-A0iKUN40,TGN40..LHD..GL..(HDCR,HTWC);KUN40,TGN41..(DLX,GL)..(DCR,HTWC)..(GCC,PHL)200501-200809

IVORY,TRIM0#

main55303-0K040-B0iKUN40,TGN40..LHD..(DLX,STD)..(DCR,HTWC)200501-200809

GRAY,TRIM1#

main55303-0K040-E0iTGN4#..GCC,VN;KUN40,TGN40..GL..PHL200808-201202

GREGE,TRIM4#

main55303-0K050-A0iKUN40,TGN40..IND200502-200812

IVORY,TRIM0#

main55303-0K050-E0iKUN40,TGN40..IND200812-201201

GREGE,TRIM4#

main55303-0K070-A0iTGN41..GL..TAIW200707-201111

IVORY,TRIM0#

main55303-0K070-B0iTGN41..(DLX,STD)..TAIW200707-201111

GRAY,TRIM1#

main55303-0K070-B1iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

main55303-0K130-E0iKUN40,TGN40..LO200908-201107

GREGE,TRIM4#

55305AREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH

main55305-0K010iTGN4#..TAIW200707

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0K050iKUN40,TGN4#..RHD200408-200812

main55306-0K060iKUN40,TGN4#..GCC,PHL,VN200808

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

55312ACLIP, INSTRUMENT PANEL

main90467-T0002-A0×2iTGN41..GL;TGN40..IND,MA;TGN41..DLX..GCC;TGN40..LHD..5F..GL;KUN40..WG..(IND,TH);KUN40..(DLX,GL)..IDN;KUN40,TGN40..4FC..GL..PHL;KUN40..(DLX,GL)..DCR..PHL;TGN40..(DLX,GL)..(IDN,TH)200408-201111

IVORY,TRIM0#

main90467-T0002-B0×2iTGN41..(DLX,STD)..TAIW;KUN40,TGN40..DLX..(DCR,HTWC)..PHL;KUN40,TGN40..5F..STD..(IDN,PHL,TH,VN)200408-201111

GRAY,TRIM1#

main90467-T0002-B2×2iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

main90467-T0002-E0×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..GL..PHL;KUN40,TGN4#..GCC,IDN,IND,TH,VN200808-201202

GREGE,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0K090iTGN40..DLX..IND;KUN40..(DLX,STD)..IND200408-200512

main55330-0K100iKUN40,TGN40..GL..IND200502-200512

main55330-0K110iKUN40,TGN40..RHD..4FC..(DLX,STD)200808-201110

main55330-0K120iKUN40,TGN40..RHD..4FC..GL200808-201110

main55330-0K130iKUN40,TGN40..5F..GL..PHL200501-200709

main55330-0K140iKUN40,TGN40..5F..GL..PHL200709-200809

main55330-0K150iTGN41..4FC..GCC;KUN40,TGN40..4FC..DLX..PHL200501-200809

main55330-0K160iKUN40,TGN40..4FC..GL..(PHL,VN)200809

main55330-0K170iTGN40..DLX..IND;KUN40..(DLX,STD)..IND200512-200812

main55330-0K180iKUN40,TGN40..GL..IND200812

main55330-0K190iTGN41..STD200707-200910

main55330-0K200iTGN41..4FC..TAIW200707-200910

main55330-0K210iTGN4#..4FC..TAIW200910

main55330-0K340iTGN4#..STD..TAIW200910

55368CBRACKET, METER MOUNTING

main55368-0K020iKUN40..DCR..PHL;KUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0K010iKUN40..DCR..PHL;KUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

55391APANEL, INSTRUMENT PANEL REINF, INNER NO.1

main55391-0K010iKUN40..DCR..PHL;KUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

55392DPANEL, INSTRUMENT PANEL REINFORCEMENT, INN NO.2

main55392-0K010iKUN40..DCR..PHL;KUN40..GL..HDCR..PHL;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(GCC,IDN,IND,TAIW,TH)200408

55441BOX, INSTRUMENT PANEL

main55440-0K030-A0iKUN40,TGN4#..(DLX,GL)..(IDN,MA,TH)200408-200809

IVORY,TRIM0#

main55440-0K030-B1iTGN40..DLX..MA;KUN40,TGN40..STD..(IDN,TH)200408-200809

GRAY,TRIM1#

main55440-0K030-E1iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,TH200808-201110

GREGE,TRIM4#

main55440-0K040-A0iKUN40,TGN40..LHD..GL..(HDCR,HTWC);KUN40,TGN41..(DLX,GL)..(DCR,HTWC)..(GCC,PHL)200501-200809

IVORY,TRIM0#

main55440-0K040-B1iKUN40,TGN40..(DLX,STD)..(PHL,VN)200809-201202

GRAY,TRIM1#

main55440-0K040-E1iTGN4#..GCC,VN;KUN40,TGN40..GL..PHL200808-201202

GREGE,TRIM4#

main55440-0K060-A0iTGN41..GL..TAIW200707-201111

IVORY,TRIM0#

main55440-0K060-B0iTGN41..(DLX,STD)..TAIW200707-201111

GRAY,TRIM1#

main55440-0K060-B1iTGN40..TAIW201111-201606

DK.GRAY,TRIM1#

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-0K010-B0iKUN40,TGN40..(DLX,STD)..(MA,PHL)200408-200809

DK.GRAY,TRIM1#

main55959-0K010-E0iTGN41..IDN200408-200708

SANDAL WOOD,TRIM0#

main55959-0K010-E1iKUN40..IDN;TGN40..DLX..MA;TGN40..4FC..IDN;TGN40..5F..(IDN,TH)200808-201110

ASH BROWN,TRIM4#

58959ECUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2iTGN4#..TAIW200707

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-0K030iTGN40..LHD..5F..GL;TGN40..LHD..(DLX,STD);KUN40,TGN41..LHD..(DCR,HTWC);KUN40,TGN40..4FC..GL..(PHL,TAIW)200501

main61182-0K010iKUN40,TGN4#..RHD200408-200812

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0K030-E0iKUN40,TGN40..GL..(IND,TH)200411-200503

SANDAL WOOD,TRIM0#

main73970-0K031-E0iKUN40,TGN40..GL..IND200504-200603

SANDAL WOOD,TRIM0#

main73970-0K031-E1iTGN40..4FC..GL..MA;KUN40,TGN40..GL..(IDN,TH)200808-201110

ASH BROWN,TRIM4#

main73970-0K041-B0iTGN4#..TAIW200910-201606

DK.GRAY,TRIM1#

main73970-0K041-E0iKUN40,TGN40..GL..PHL200709-201111

SANDAL WOOD,TRIM0#

main73970-0K041-E1iKUN40,TGN40..GL..(PHL,VN)200809-201202

ASH BROWN,TRIM4#

main73970-0K060-E0iKUN40,TGN40..GL..IND200603-200812

SANDAL WOOD,TRIM0#

main73970-0K060-E1iKUN40,TGN40..GL..IND200812-201201

ASH BROWN,TRIM4#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0K010iTGN40..(DLX,STD)..TAIW;KUN40,TGN40..WG..GL..(IND,TAIW,TH)200411

556960K010

main55696-0K010

591980K010SEAL, NOISE SHUTTER

main59198-0K010

74128BZ010SUPPORT, FRONT ASH RECEPTACLE RETAINER

main74128-BZ010

74133BZ010SEAL, FRONT ASH RECEPTACLE

main74133-BZ010

90105T0065

main90105-T0065

9011906812

main90119-06812

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90168T0001

main90168-T0001

90178T0018

main90178-T0018

90178T0019

main90178-T0019

90183T0001

main90183-T0001

31 parts on this diagram · 8 diagrams in section
