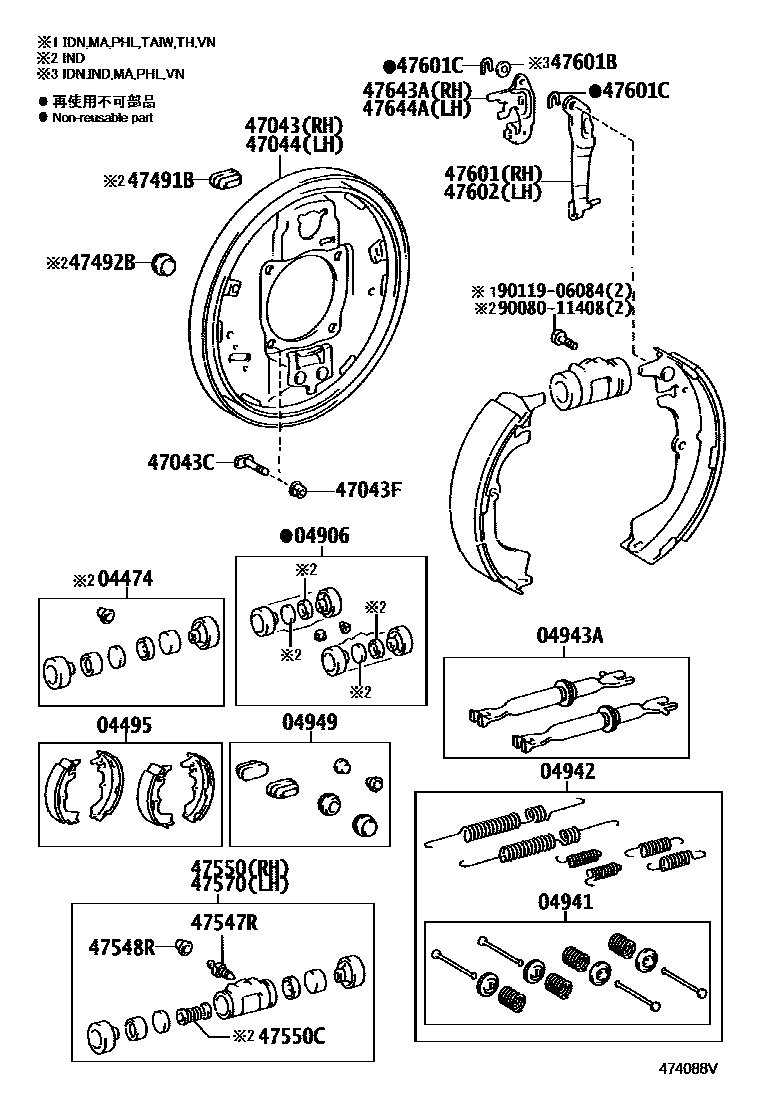

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0004 1

04474CYLINDER KIT, REAR WHEEL

main04474-71010×2iTGN40..IND200812-201204

04495SHOE KIT, REAR BRAKE

main04495-0K010iTGN41..GCC200808-201107

MARK NSA LN512

main04495-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN)200408

MARK NSA D9033

main04495-0K110iKUN40..IND200812-201111

MARK RANE D9033

04906CUP KIT, REAR WHEEL CYLINDER

main04906-0K010×2iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN)200408

main04906-0K020iTGN41..LHD200507-201111

main04906-0K090iTGN41..GCC200808-201107

main04906-71010iTGN40..IND200812-201204

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-0K010iTGN41..LHD200507-201111

main04941-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

main04941-0K050iKUN40..IND200812-201111

04942SPRING KIT, REAR BRAKE

main04942-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

main04942-0K080iTGN41..GCC200808-201107

main04942-0K090iKUN40,TGN40..IND200502-200812

04943ASTRUT KIT, REAR BRAKE

main04943-0K010iTGN41..LHD200507-201111

main04943-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN)200408

main04943-0K060iKUN40..IND200812-201111

04949PLUG KIT, REAR BRAKE

main04949-0D010iTGN41..GCC200808-201107

main04949-0K010iTGN41..LHD200507-201111

main04949-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TH,VN)200408

main04949-0K090iKUN40..IND200812-201111

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K011iTGN41..GCC200808-201107

main47043-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

main47043-0K040iKUN40..IND200812-201111

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010×8iKUN40..WG..GL..IND200808-201107

*10-1.25PX46-21

main90114-10002×8iTGN41..GCC200808-201107

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-10026×8iTGN41..GCC200509-200609

main90178-T0075×8iTGN41..GCC200507-200508

main90178-T0077×8iTGN41..DLX..GCC;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TH)200408

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K011iTGN41..LHD200507-201111

main47044-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

main47044-0K040iKUN40..IND200812-201111

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-0B020×2iTGN40..STD..IND200502-200602

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-0B020×2iTGN40..STD..IND200502-200602

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iTGN40..TAIW201112

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iKUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH,VN)200408

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-0K010iTGN41..LHD200507-201111

main47550-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808-201204

main47550-0K080iKUN40,TGN40..TH200411

main47550-71020iKUN40..IND201111-201204

TYPE A:REFER ILLUST.

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90016-AY002×2iTGN41..GCC200808-201107

main90029-60011×2iTGN40..IND200812-201201

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-0K010iTGN41..GCC200808-201107

main47550-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808-201204

main47550-0K080iTGN40..TAIW201112

main47550-71020iKUN40,TGN40..IND200502-200812

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-0B020iTGN40..IND200812-201201

main47601-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201202

main47611-0K010iTGN41..GCC200808-201107

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90016-AX101iKUN40,TGN40..IDN200408-200808

T=0.2

main90016-AX102iKUN40,TGN40..IDN200408-200808

T=0.3

main90016-AX103iKUN40,TGN40..MA,PHL,VN200408-200809

T=0.4

main90016-AX104iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808-201204

T=0.5

main90016-AX105iTGN41..IDN200408-200708

T=0.6

main90016-AX106iKUN40,TGN40..MA,PHL,VN200408-200809

T=0.9

main90080-56066iTGN40..STD..IND200502-200602

T=0.2

main90080-56067iTGN40..STD..IND200502-200602

T=0.3

main90080-56068iTGN40..IND200812-201204

T=0.4

main90564-09003iTGN40..STD..IND200502-200602

T=0.5

main90564-09185iTGN40..IND200812-201204

T=0.6

main90564-09186iTGN40..STD..IND200502-200602

T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90080-21016×2iKUN40,TGN40..IND200502-200812

T=1.2

main90080-21017×2iKUN40,TGN40..IND200502-200812

T=1.6

main90213-06013×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

T=1.2

main90213-07010×2iTGN41..LHD200507

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-0B020iKUN40..IND201111-201201

TYPE A:REFER ILLUST.

main47602-0K030iKUN40..IND201111-201201

TYPE B:REFER ILLUST.

main47612-0K010iTGN41..GCC200808-201107

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0B020iKUN40,TGN40..IND200502-200812

main47643-0K010iTGN41..LHD200507-201111

main47643-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,TH,VN200808-201204

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0B020iKUN40..IND201111-201204

TYPE A:REFER ILLUST.

main47644-0K010iTGN41..GCC200808-201107

main47644-0K030iKUN40..IND201111-201204

TYPE B:REFER ILLUST.

9008011408

main90080-11408

9011906084

main90119-06084

26 parts on this diagram · 3 diagrams in section
