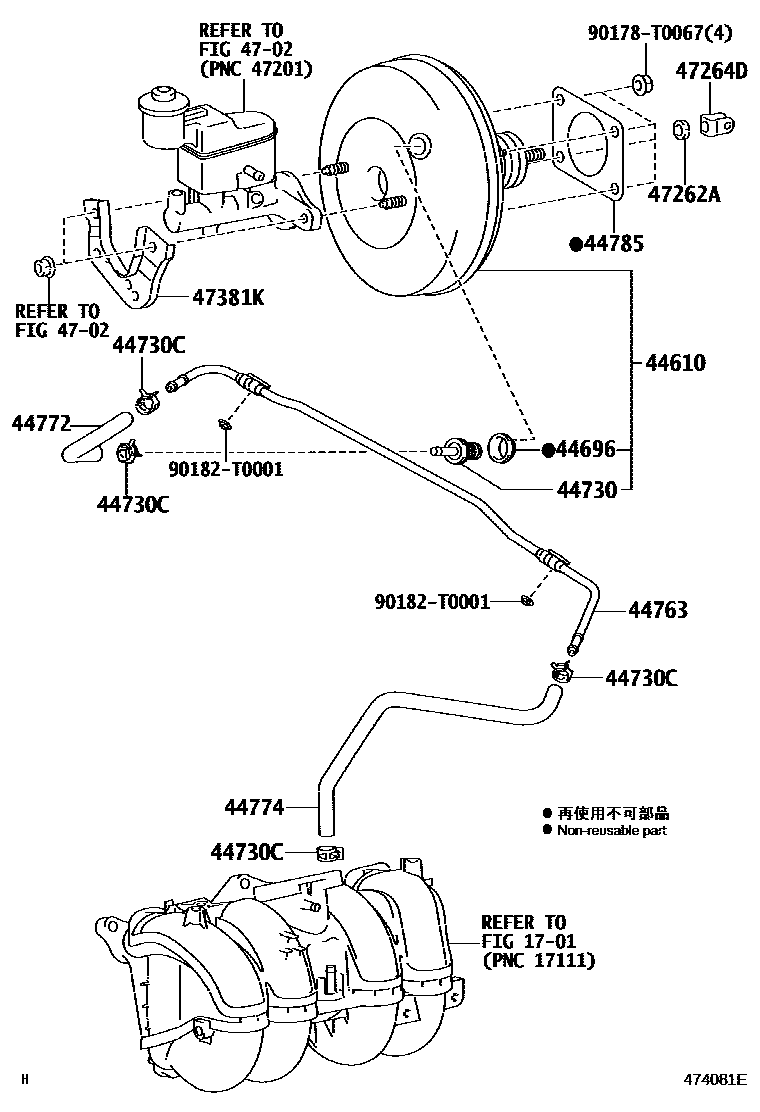

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-09300iKUN40..IND200502-200812

main44610-09320iTGN40..IND200812

main44610-0K010iTGN4#..IDN,MA,TH200408-200809

main44610-0K020iTGN4#..GCC,PHL,VN200808

main44610-0K030iKUN40..IDN,TH200408-200808

main44610-0K040iKUN40..PHL200501-200809

44696GROMMET, CHECK VALVE

main90080-48050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201204

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201202

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019×6iKUN40..IND; KUN40..PHL;TGN40..IND; TGN40..PHL,VN200808

44763TUBE, BOOSTER VACUUM

main44763-0K010iKUN40,TGN40..IDN,TH200808-201107

main44763-0K040iTGN41..IDN200408-200708

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN40,TGN4#..IDN,MA,TH200408-200809

main44772-0K020iKUN40,TGN40..IND200502-200812

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K010iTGN4#..RHD200408-200812

main44774-0K020iKUN40..IND,PHL200808

44785GASKET, BRAKE BOOSTER

main44785-17010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iKUN40,TGN40..IND200812-201204

main94120-41000iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201204

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0B010iKUN40,TGN40..IND200502-200812

main47264-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main47264-0K040iTGN4#..TAIW200707

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09030iKUN40,TGN40..IND200502-200812

main47381-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

90178T0067

main90178-T0067

90182T0001

main90182-T0001

15 parts on this diagram · 6 diagrams in section
