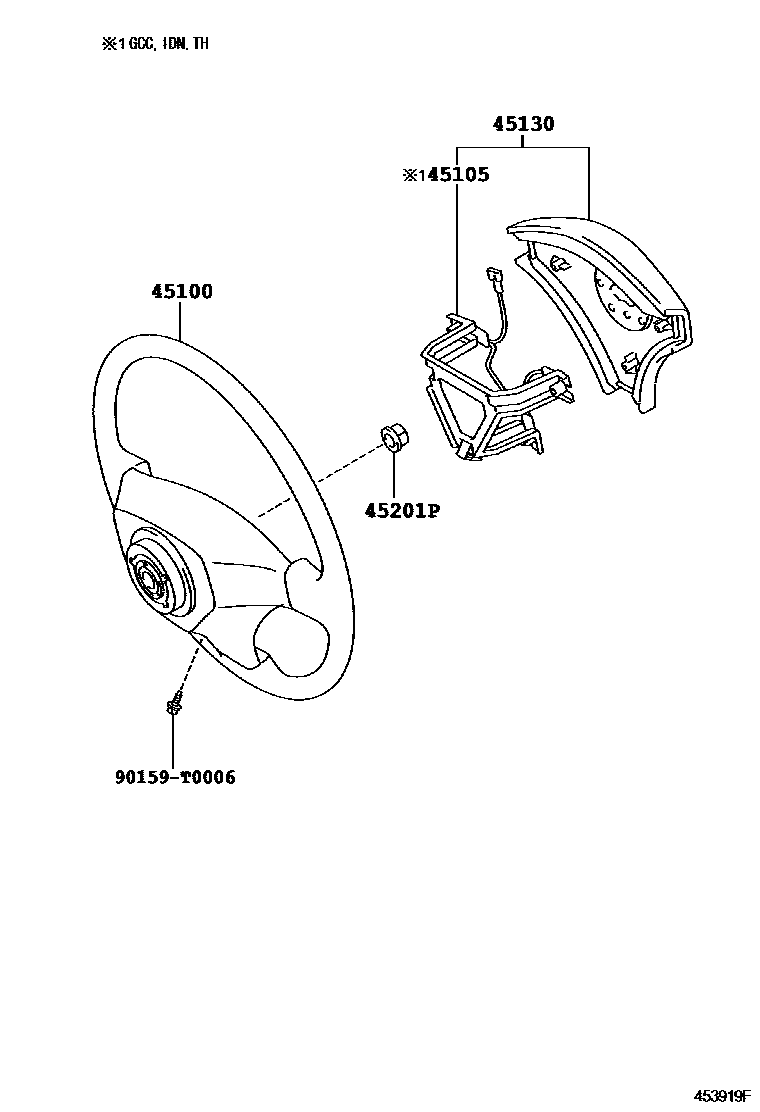

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
main45100-0K070-B0iTGN40..4FC..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..5F..(DLX,STD)..(IDN,TH)200408-200808
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
main45100-0K070-E1iTGN41..GCC;TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN200808-201107
3-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
2-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#; 3-SPOKE,URETHANE,STEERING-POWER STEERING,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER ONLY),SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-WITH,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER)&MULTI INFORMATION DISPLAY-WITH,SANDAL WOOD,TRIM0#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-0K010iTGN41..GCC;TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN200808-201107
45130BUTTON ASSY, HORN
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
SANDAL WOOD,TRIM0#
SANDAL WOOD,TRIM0#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
main45130-0K010-E1iTGN40..DLX..TH;TGN40..5F..GL..VN;TGN40..5F..DLX..MA;TGN40..4FC..(MA,VN)200808-201202
ASH BROWN,TRIM4#
main45130-0K020-B0iTGN40..4FC..DLX..IDN;KUN40..(DLX,STD)..IDN;TGN40..5F..(DLX,STD)..(IDN,TH)200408-200808
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
main45130-0K020-E1iTGN41..GCC;TGN40..4FC..DLX..IDN;KUN40..(DLX,LO,STD)..IDN;TGN40..5F..(DLX,LO,STD)..(IDN,TH)200808-201007
ASH BROWN,TRIM4#
main45130-0K021-E1iTGN41..GCC;TGN40..DLX..IDN;TGN40..RHD..(LO,STD);KUN40..(DLX,LO,STD)..IDN201008-201107
ASH BROWN,TRIM4#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
ASH BROWN,TRIM4#; STEERING-POWER STEERING,ASH BROWN,TRIM4#
SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#
MULTI INFORMATION DISPLAY-WITH,DK.GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
90159T0006
main90159-T0006
5 parts on this diagram · 6 diagrams in section
