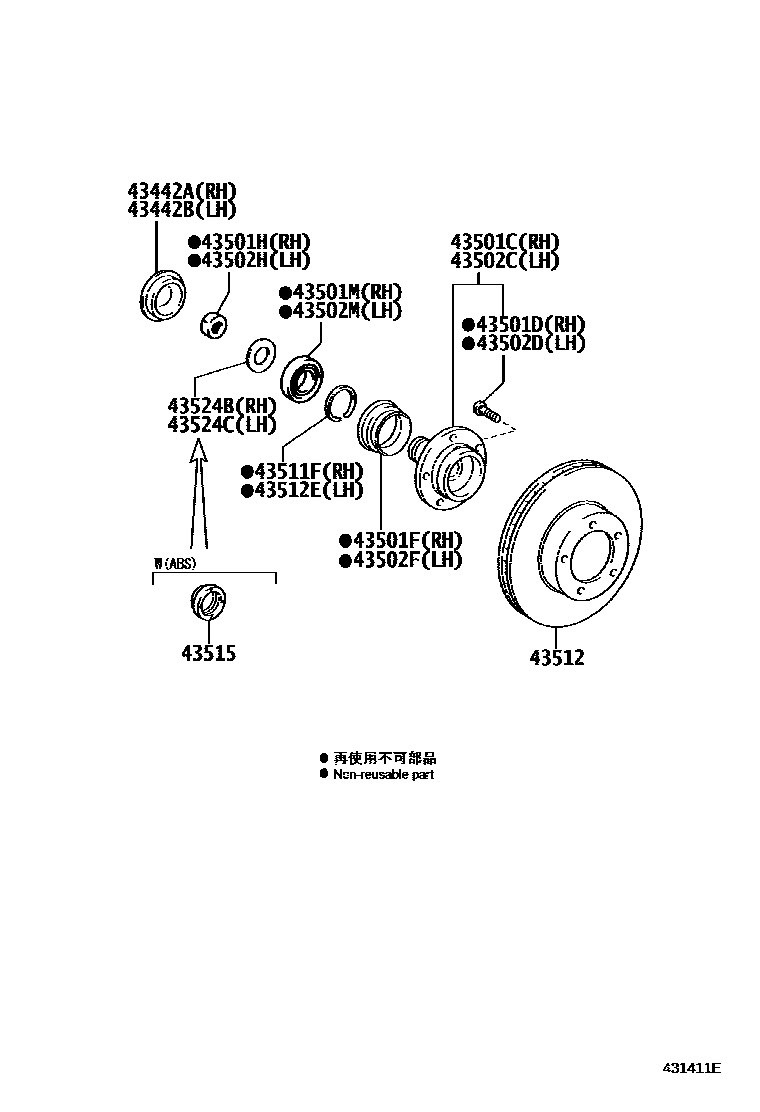

FRONT AXLE HUB

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main43502-0K070iTGN40..IND;KUN40..INDWG..GL;KUN40..(DLX,STD)..IND200812-201111

main43502-0K080iTGN4#..TAIW200707

main43502-0K090iKUN40,TGN40..MA,PHL,VN200904-201204

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iTGN40..IND200808-201111

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0010×2iKUN40..IND201111-201204

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-T0002iKUN40,TGN4#200408-200605

main90179-24010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200606

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-T0007iKUN40..IND201111-201204

main90366-T0008iKUN40,TGN4#..GCC,IDN,TH200808-201112

main90366-T0043iTGN4#..TAIW200707

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0K010iTGN40..IND201111-201204

main43502-0K070iKUN40..INDWG..GL;KUN40..(DLX,STD)..IND200812-201112

main43502-0K080iTGN4#..TAIW200707

main43502-0K090iKUN40,TGN40..MA,PHL,VN200904-201204

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-T0002iKUN40,TGN4#200408-200605

main90179-24010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-T0007iKUN40..GL..PHL;KUN40..INDWG..GL;TGN40..IND,MA,PHL,VN;KUN40..(DLX,STD)..(IND,PHL)200809-201204

main90366-T0008iKUN40,TGN4#..GCC,IDN,TH200808-201112

main90366-T0043iTGN4#..TAIW200707

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

43512DISC, FRONT

main43512-0K010×2iKUN40,TGN40..MA,PHL,VN200809-201202

main43512-0K020×2iKUN40,TGN4#..IDN200408-200808

main43512-0K041×2iKUN40,TGN4#..GCC,TAIW,TH200411-201606

main43512-0K051×2iTGN40..IND200812-201201

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010×2iTGN40..DLX..(PHL,TH);KUN40,TGN4#..GL..(IDN,MA,TH,VN)200408-200809

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-0K010iKUN40,TGN40..(DLX,GL)..PHL200408-200709

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-0K010iKUN40,TGN40..(DLX,GL)..PHL200408-200709

18 parts on this diagram · 1 diagram in section
