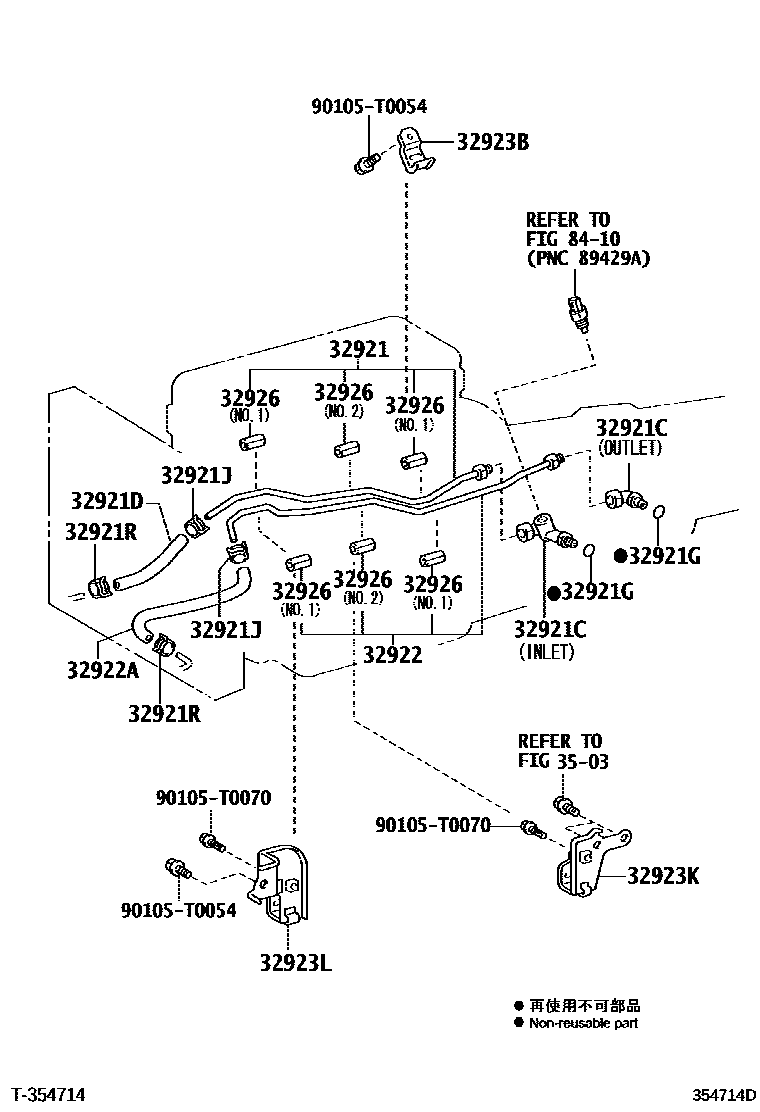

OIL COOLER & TUBE (ATM)

0001 1A340E 0002 1A45DE 0003 1A343E

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main32921-0K020iTGN41..4FC..GCC200808-201107

main32921-0K030iKUN40..HDCR200408-200809

main32921-0K060iTGN41..4FC..TAIW200707-201111

main32921-0K080iTGN40..4FC..TAIW201111

32921CUNION(FOR OIL COOLER TUBE)

main32918-28010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

INLET

main90407-14024iKUN40..HDCR200808

INLET

main90407-16009iKUN40,TGN41..4FC200408-201111

OUTLET

main90407-16010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

OUTLET

main90407-16012iTGN41..4FC..GCC200808-201107

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-0K010iTGN4#..4FC..TAIW200707

main90445-T0012iKUN40,TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)200808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main90301-11030×2iKUN40,TGN41..4FC200408-201111

32921JCLIP(FOR OIL COOLER HOSE)

main90466-T0016×2iKUN40,TGN4#..4FC..(DLX,GL)..(GCC,IDN,MA,PHL,TAIW,TH)200408

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-T0016×2iKUN40,TGN41..4FC;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH)200408

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K010iTGN40..4FC200408-200809

main32922-0K020iTGN41..4FC..(GCC,IDN)200412-200801

main32922-0K021iTGN41..4FC..GCC200808-201107

main32922-0K030iKUN40..HDCR200808

main32922-0K060iTGN41..4FC..TAIW200707-201111

main32922-0K080iTGN40..4FC..TAIW201111

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-0K020iTGN4#..4FC..TAIW200707

main90445-T0013iKUN40,TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)200808

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-0K010iTGN40..4FC..TAIW201112

main32929-0K020iKUN40..DLX..HDCR..PHL200608-200609

main32929-0K030iKUN40,TGN41..4FC200609-201111

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32909-0K020iTGN41..4FC;TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TH)200408

main32909-0K040iKUN40..HDCR200408-200809

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32909-0K030iTGN40..4FC..TAIW201112

main32909-0K050iKUN40..HDCR200408-200809

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-06040×6iTGN4#..4FC..TAIW200707

L=35,ID=10

main32926-26010×2iKUN40..HDCR200808

L=60,ID=10,NO.2

main32926-30020×4iKUN40..HDCR; TGN4#..4FC..(GCC,IDN,MA,PHL,TH,VN)200808

L=35,ID=10; L=35,ID=10,NO.1

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90105T0054

main90105-T0054

90105T0070

main90105-T0070

16 parts on this diagram · 3 diagrams in section
