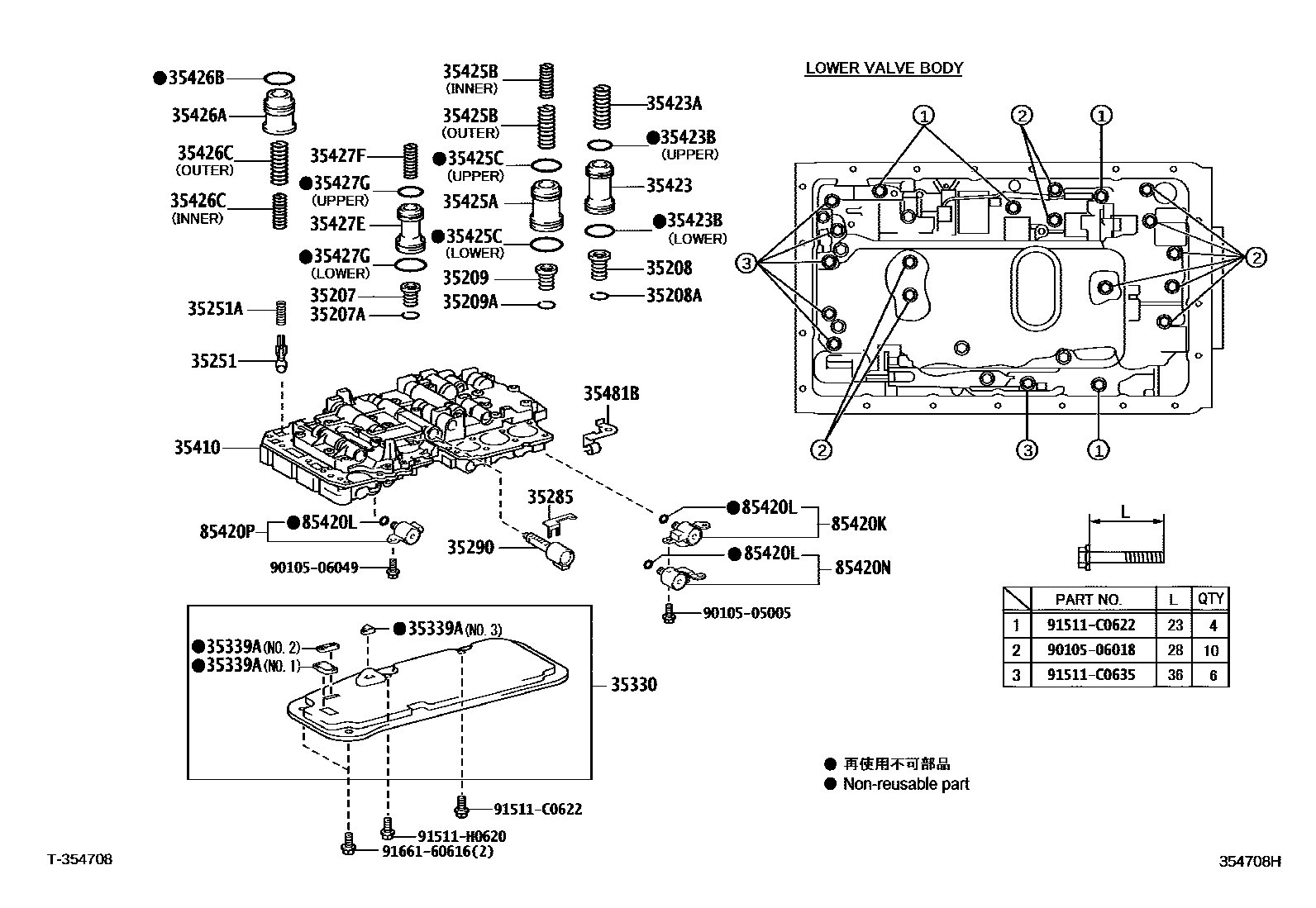

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E,A343E 0002 1A45DE 0003 1A340E,A343E 0004 1A45DE

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iKUN40,TGN41..4FC200408-201111

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-28010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main35208-30010iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKUN40,TGN4#..4FC..(DLX,GL)..(GCC,IDN,MA,PHL,TAIW,TH)200408-201606

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-24010iKUN40..HDCR200408-200809

main35209-50020iTGN41..4FC200412-201111

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iKUN40,TGN41..4FC200408-201111

35251BODY, CHECK BALL

main35251-30020iKUN40,TGN41..4FC200408-201111

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iKUN40,TGN41..4FC200408-201111

35285PLATE, SOLENOID LOCK

main35285-24020iKUN40,TGN41..4FC200408-201111

main35285-28010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-25010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main35290-71010iKUN40,TGN41..4FC200408-201111

35330STRAINER ASSY, VALVE BODY OIL

main35330-53010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main35330-60030iKUN40,TGN41..4FC200408-201111

35339AGASKET, OIL STRAINER, NO.1

main35339-30080iKUN40,TGN41..4FC200408-201111

NO.1

main35339-30090iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

NO.2

main35339-30100iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

NO.3

35410BODY ASSY, TRANSMISSION VALVE

main35410-71010iTGN41..4FC200412-201111

main35410-71050iKUN40..HDCR200408-200809

main35410-71070iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

35423PISTON, B-2 ACCUMULATOR

main35423-30030iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-22015iTGN41..4FC200412-201111

main90501-25026iKUN40..HDCR200408-200809

main90501-25037iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

UPPER

main90301-31010iKUN40,TGN41..4FC200408-201111

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKUN40,TGN41..4FC200408-201111

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23135iKUN40..HDCR200408-200809

OUTER

main90501-24015iTGN41..4FC200412-201111

OUTER

main90501-25027iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

INNER

main90501-25061iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-25010iKUN40,TGN41..4FC200408-201111

UPPER

main90301-31010iKUN40,TGN41..4FC200408-201111

LOWER

35426APISTON, C-0 ACCUMULATOR

main35426-40010iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iKUN40,TGN41..4FC200408-201111

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iKUN40,TGN41..4FC200408-201111

INNER

main90501-23073iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

OUTER

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iKUN40,TGN41..4FC200408-201111

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iTGN41..4FC..GCC200808-201107

main90501-23095iKUN40..HDCR200808

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

UPPER

main90301-26011iKUN40,TGN41..4FC200408-201111

LOWER

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-24010iKUN40,TGN41..4FC200408-201111

85420KSOLENOID ASSY, TRANSMISSION

main35250-30030×2iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main35250-30050iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004×3iKUN40,TGN41..4FC200408-201111

85420NSOLENOID ASSY, TRANSMISSION

main35250-28030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main35250-30070iKUN40,TGN41..4FC200408-201111

85420PSOLENOID ASSY, TRANSMISSION

main35250-50030iKUN40,TGN41..4FC200408-201111

9010505005

main90105-05005

9010506018

main90105-06018

9010506049

main90105-06049

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

37 parts on this diagram · 4 diagrams in section
