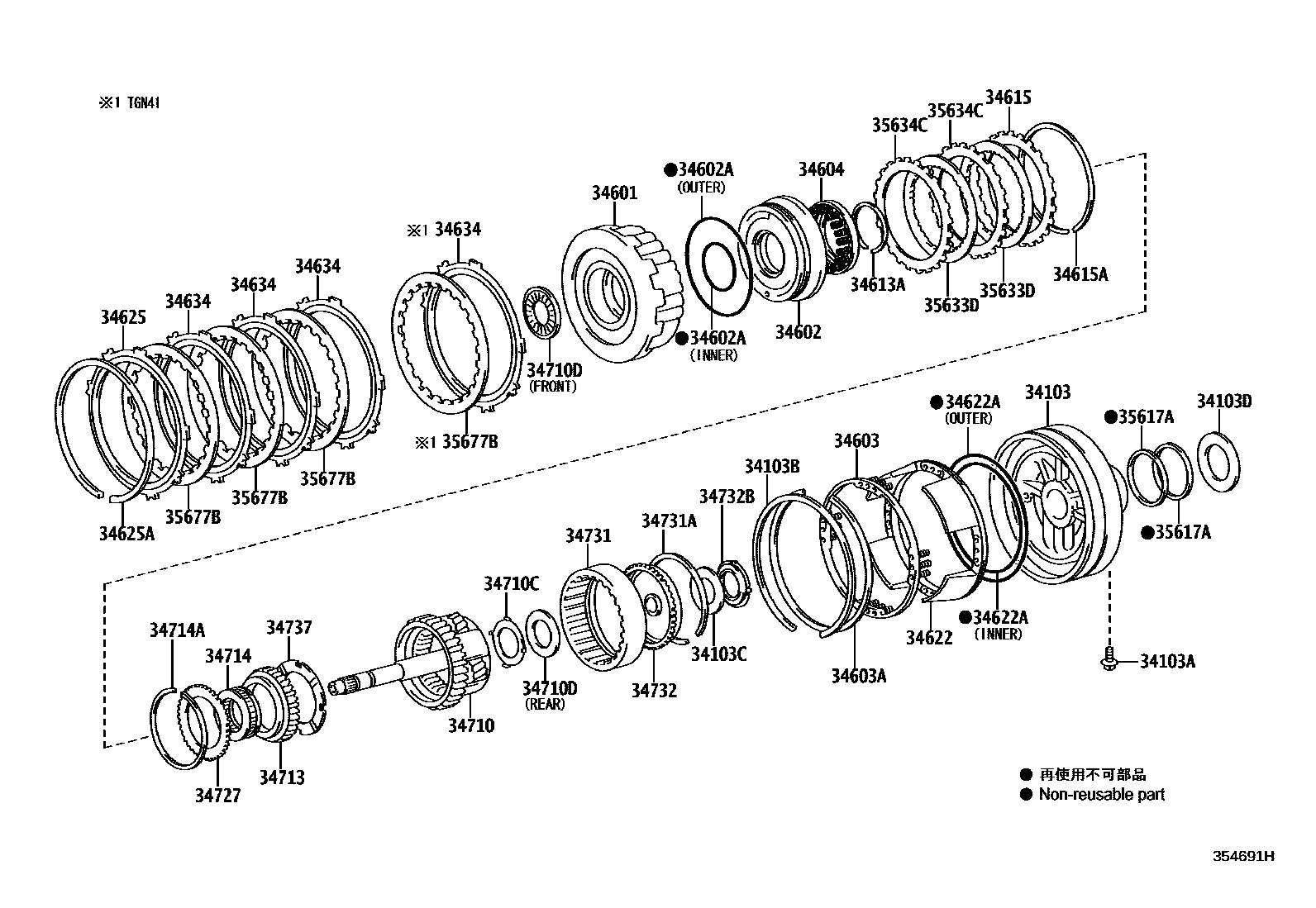

OVERDRIVE GEAR (ATM)

0001 1A340E,A343E 0002 1A45DE

34103SUPPORT SUB-ASSY, OVERDRIVE

main34103-30020iKUN40,TGN41..4FC200408-201111

34103ABOLT (FOR OVERDRIVE SUPPORT)

main90105-08281×2iKUN40,TGN41..4FC200408-201111

34103BRING, HOLE SNAP (FOR OVERDRIVE SUPPORT)

main90521-99033iKUN40,TGN41..4FC200408-201111

34103CRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT)

main35789-22060iKUN40,TGN41..4FC200408-201111

34103DRACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR)

main35789-30090iKUN40,TGN41..4FC200408-201111

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-26020iKUN40..HDCR200408-200809

main34601-28010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main34601-50020iTGN41..4FC200412-201111

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main34602-30020iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

INNER

main90301-65006iKUN40,TGN41..4FC200408-201111

INNER

main90301-99058iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

OUTER

main90301-99086iKUN40,TGN41..4FC200408-201111

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-22010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main34603-30030iKUN40,TGN41..4FC200408-201111

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99039iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main34604-30010iKUN40,TGN41..4FC200408-201111

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-58001iKUN40,TGN41..4FC200408-201111

34615FLANGE, OVERDRIVE CLUTCH

main34615-22010iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.1

main34615-22020iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.2

main34615-22030iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.3

main34615-50030iKUN40,TGN41..4FC200408-201111

T=3.4

main34615-50040iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.5

main34615-50050iKUN40,TGN41..4FC200408-201111

T=3.6

main35634-30070iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

T=2.0

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99001iKUN40,TGN41..4FC200408-201111

34622PISTON, OVERDRIVE BRAKE

main34622-22020iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main34622-30090iKUN40..HDCR200808

main34622-30100iTGN41..4FC200412-201111

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99088iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

INNER

main90301-99090iKUN40,TGN41..4FC200408-201111

OUTER

main90301-99103iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

INNER

main90301-99111iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

OUTER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

T=4.0

main34625-22030iKUN40,TGN41..4FC200408-201111

T=3.3,MARK 33

main34625-22040iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.8,MARK 38

main34625-22050iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.9,MARK 39

main34625-22060iKUN40,TGN41..4FC200408-201111

T=4.0,MARK 40

main34625-50020iKUN40,TGN41..4FC200408-201111

T=3.5,MARK 35

main34625-50030iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=3.6,MARK 36

main34625-50040iKUN40,TGN41..4FC200408-201111

T=3.7,MARK 37

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main90521-99027iKUN40,TGN41..4FC200408-201111

34634PLATE, OVERDRIVE BRAKE

main34634-30021×3iKUN40..HDCR200408-200809

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-22031iKUN40..HDCR200808

main34710-28030iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main34710-60021iTGN41..4FC..GCC200808-201107

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30041iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

FRONT

main35789-22010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

REAR

main35789-30052iKUN40,TGN41..4FC200408-201111

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

REAR

main90374-31005iKUN40,TGN41..4FC200408-201111

FRONT

main90374-31008iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

REAR

main90374-37003iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

FRONT

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main34713-32010iKUN40,TGN41..4FC200408-201111

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

main35791-30060iKUN40,TGN41..4FC200408-200908

main35791-30130iTGN41..4FC..TAIW200908-201111

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-99028iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iKUN40,TGN41..4FC200408-201111

34731GEAR, OVERDRIVE PLANETARY RING

main34731-30030iKUN40..HDCR200808

main34731-50010iTGN41..4FC200412-201111

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99024iKUN40..HDCR200808

main90521-99118iTGN41..4FC200412-201111

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-22011iKUN40..HDCR200408-200809

main34732-40011iTGN41..4FC200412-201111

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-33002iKUN40,TGN41..4FC200408-201111

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main34737-30030iKUN40..HDCR200808

main34737-50010iTGN41..4FC..GCC200808-201107

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-30020×2iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

main35617-43010×2iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-14010×2iKUN40,TGN41..4FC200408-201111

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iKUN40,TGN41..4FC..(GCC,IDN,PHL)200808

T=2.0

main34634-30010iTGN40..4FC..(IDN,MA,PHL,TH,VN)200808

T=2.25-2.35

main35634-30080iTGN40..4FC200408-200809

T=1.95-2.05

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main34633-60010×3iKUN40..HDCR200408-200809

35 parts on this diagram · 2 diagrams in section
