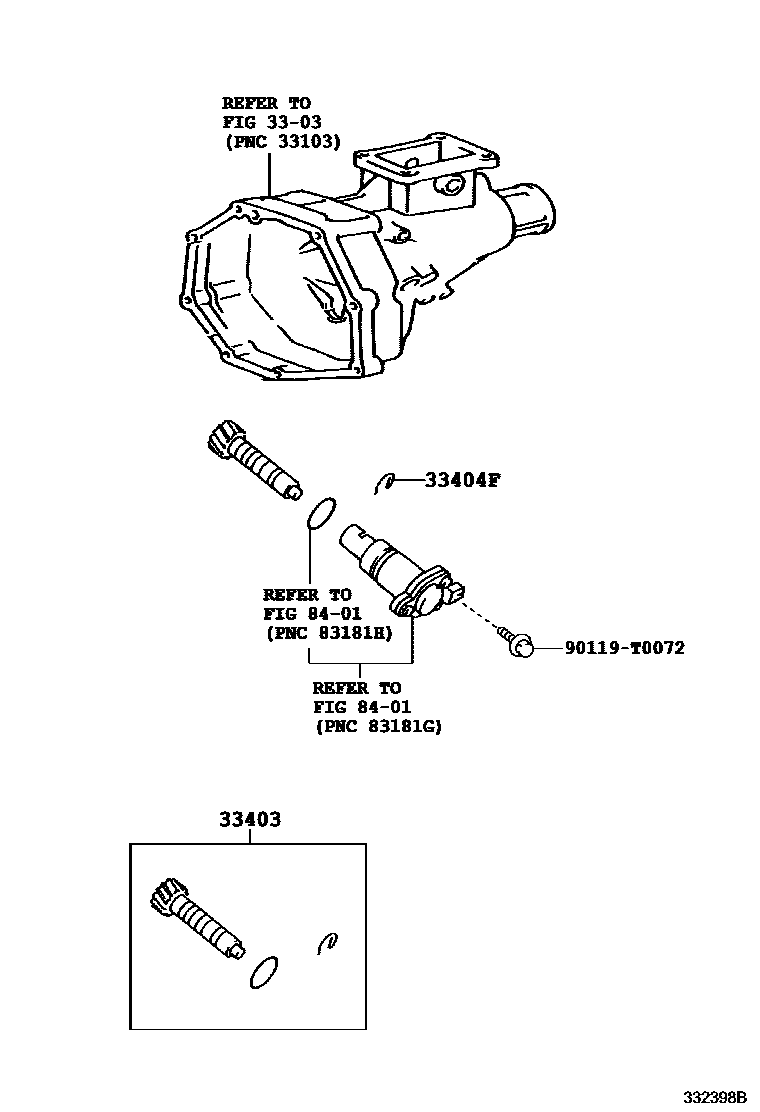

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1G58 0002 1R150

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29545iTGN40..STD..(IDN,VN)200408-200809

N=18,MARK 18:5

main33403-39305iKUN40..DCR200408-200812

N=19,MARK 19:6

main33403-39355iTGN41..STD200801-201111

N=31,MARK 31:10

main33403-39385iTGN40..5F..(IND,MA,PHL,TH);TGN40..5F..(DLX,GL)..(IDN,VN)200408-200812

N=17,MARK 17:5

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKUN40,TGN41..WG..5F..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH,VN)200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0072

main90119-T0072

5 parts on this diagram · 2 diagrams in section
