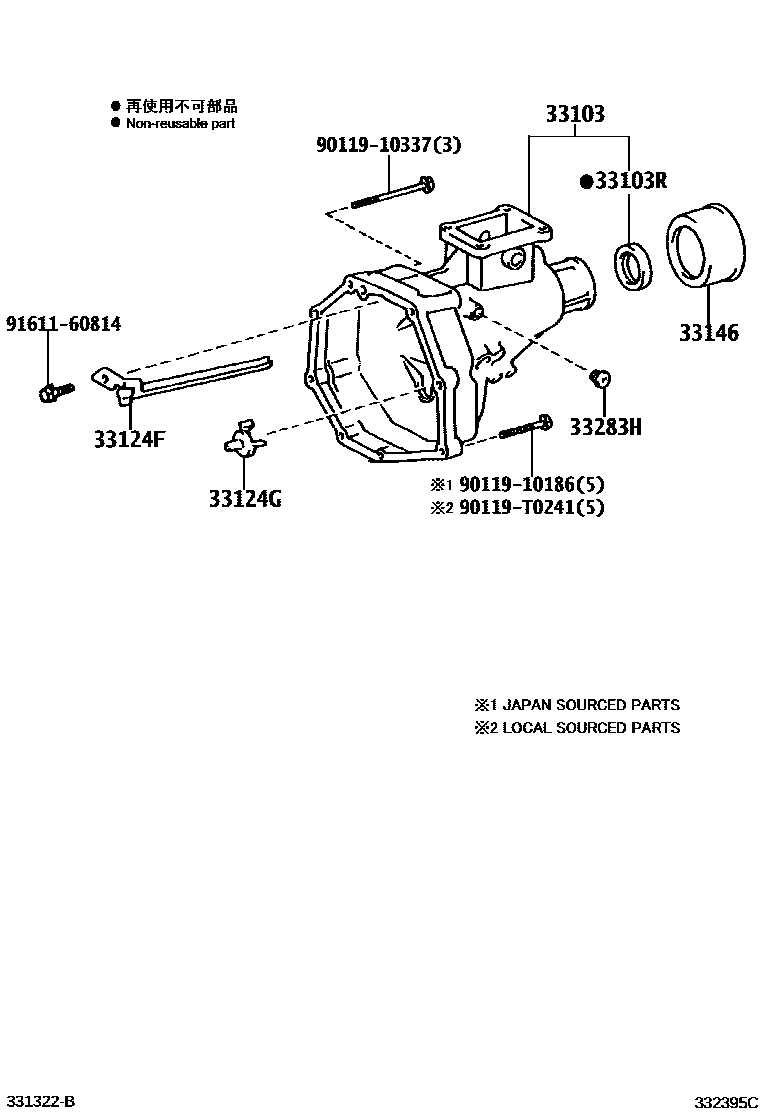

EXTENSION HOUSING (MTM)

0001 1G58 0002 1R150

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K010iTGN41..5F..GCC200808-201107

TYPE C:REFER 33-01

main33103-0K020iKUN40,TGN40..WG..IND200607-201508

main33103-0K030iTGN41..5F..GCC200808-201107

TYPE D:REFER 33-01

main33103-71010iKUN40..IND;TGN40..(DLX,GL)..IND200502-200607

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iKUN40,TGN40..IND200502-200607

main90311-38094iTGN40..STD201508

main90311-40032iTGN41..STD200901-201111

main90311-T0019iTGN41..5F..GCC200808-201107

TYPE C:REFER 33-01

main90311-T0020iKUN40,TGN40..WG..IND200607-201211

main90311-T0050iTGN40..STD201211-201508

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-0K020iTGN41..5F..GCC200808-201107

TYPE C:REFER 33-01

main33124-0K030iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

main33124-0K040iTGN41..STD200901-201111

main33124-35011iKUN40..IND;TGN40..(DLX,GL)..IND200502-200607

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0K010iTGN41..5F200507-201111

main33124-36010iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-04010iKUN40,TGN4#..WG..5F..(DLX,GL,STD)200408

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-12008iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808

9011910186

main90119-10186

9011910337

main90119-10337

90119T0241

main90119-T0241

9161160814

main91611-60814

10 parts on this diagram · 2 diagrams in section
