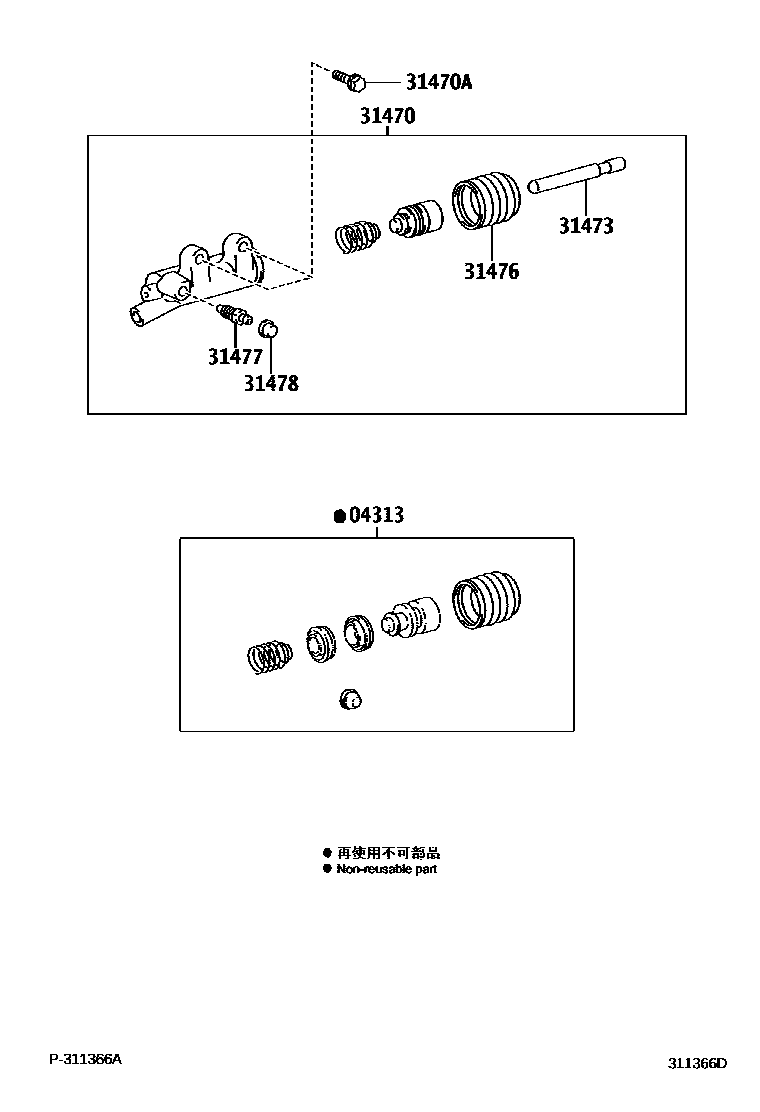

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K010iTGN41..5F..GCC200808-201107

main04313-0K030iKUN40..DCR200808

main04313-0K050iTGN40..STD..TAIW201112

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K020iKUN40..DCR200408-200812

main31470-0K040iTGN40..5F..DLX..MA;TGN40..5F..(IDN,IND,PHL,TH,VN)200808

main31470-0K050iTGN41..5F200507-200612

main31470-0K051iTGN41..5F..GCC200808-201107

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221×2iTGN40..STD..TAIW201112

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-04010iTGN41..5F200408-200612

main31473-0K010iTGN41..5F200701-201111

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iTGN40..STD..TAIW201112

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKUN40,TGN41..WG..5F..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH,VN)200408

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKUN40,TGN41..WG..5F..(DLX,GL,STD);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TH,VN)200408

7 parts on this diagram · 2 diagrams in section
