EXHAUST GAS RECIRCULATION SYSTEM

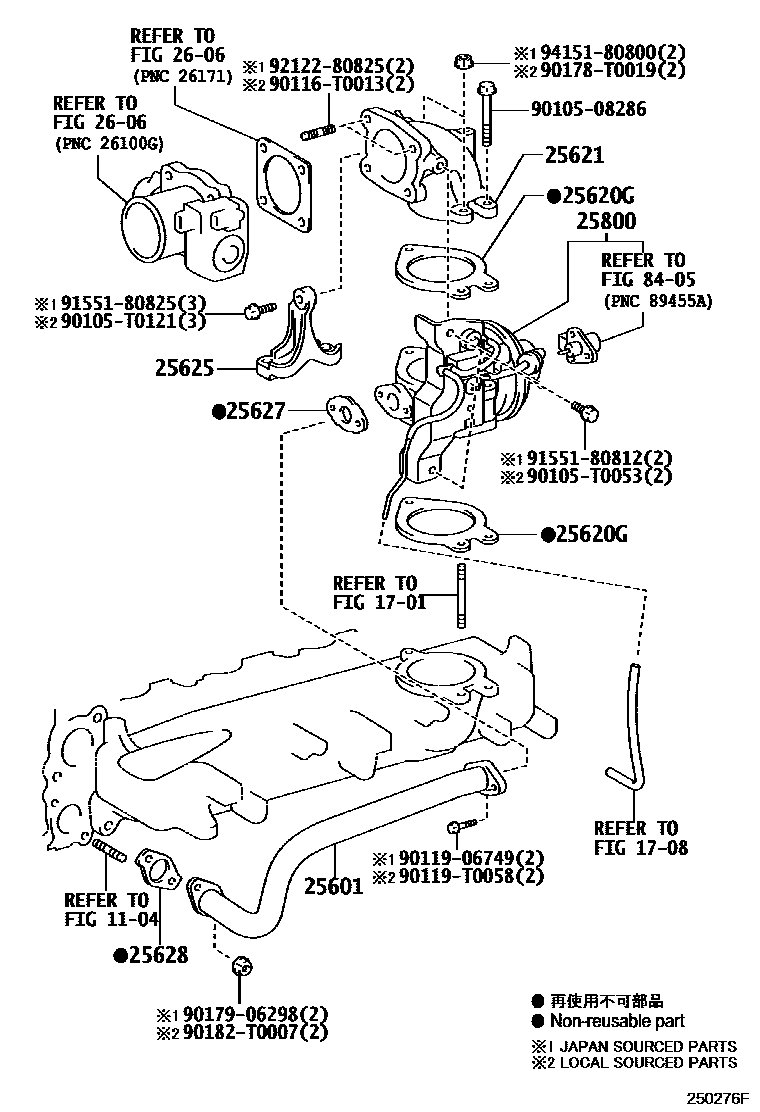

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

25601PIPE SUB-ASSY, EGR, NO.1

main25601-0L010i200408-200812

*130

main25601-0L030i201004-201201

main25601-30070i200808-201202

*163 OR *184

25620GGASKET, DIESEL THROTTLE

main26171-0L010×2i201004-201201

NO.1

main26171-0L030i201004-201201

NO.2

main26171-30030×2i200507-200708

*163 OR *184

25621CONNECTOR, INTAKE AIR(FOR GASKET)

main17861-0L010i200808-201004

*130

main17861-0L040i201004-201201

main17861-30070i201112-201202

*130,(J)

25625BRACKET, EGR VALVE

main26127-0L010i200808-201202

*130

main26127-0L030i201004-201201

main26127-30020i200808-201202

*163 OR *184

25627GASKET, EGR VALVE

main25627-0L010i200408-200812

*130

main25627-30030i200808-201202

*163 OR *184

main25627-30060i201004-201201

25628GASKET, EGR INLET

main25628-0L010i200808-201004

*130

main25628-30010i201004-201201

main25628-30020i200507-200809

*163 OR *184

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0L020i200809-201202

*130; *163 OR *184

main25800-0L050i200803-200809

main25800-0L070i201004-201201

2606VENTURI

→ Go to FIG 26-06

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9010508286

main90105-08286

90105T0053

main90105-T0053

90105T0121

main90105-T0121

90116T0013

main90116-T0013

9011906749

main90119-06749

90119T0058

main90119-T0058

90178T0019

main90178-T0019

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180812

main91551-80812

9155180825

main91551-80825

9212280825

main92122-80825

9415180800

main94151-80800

25 parts on this diagram · 2 diagrams in section
