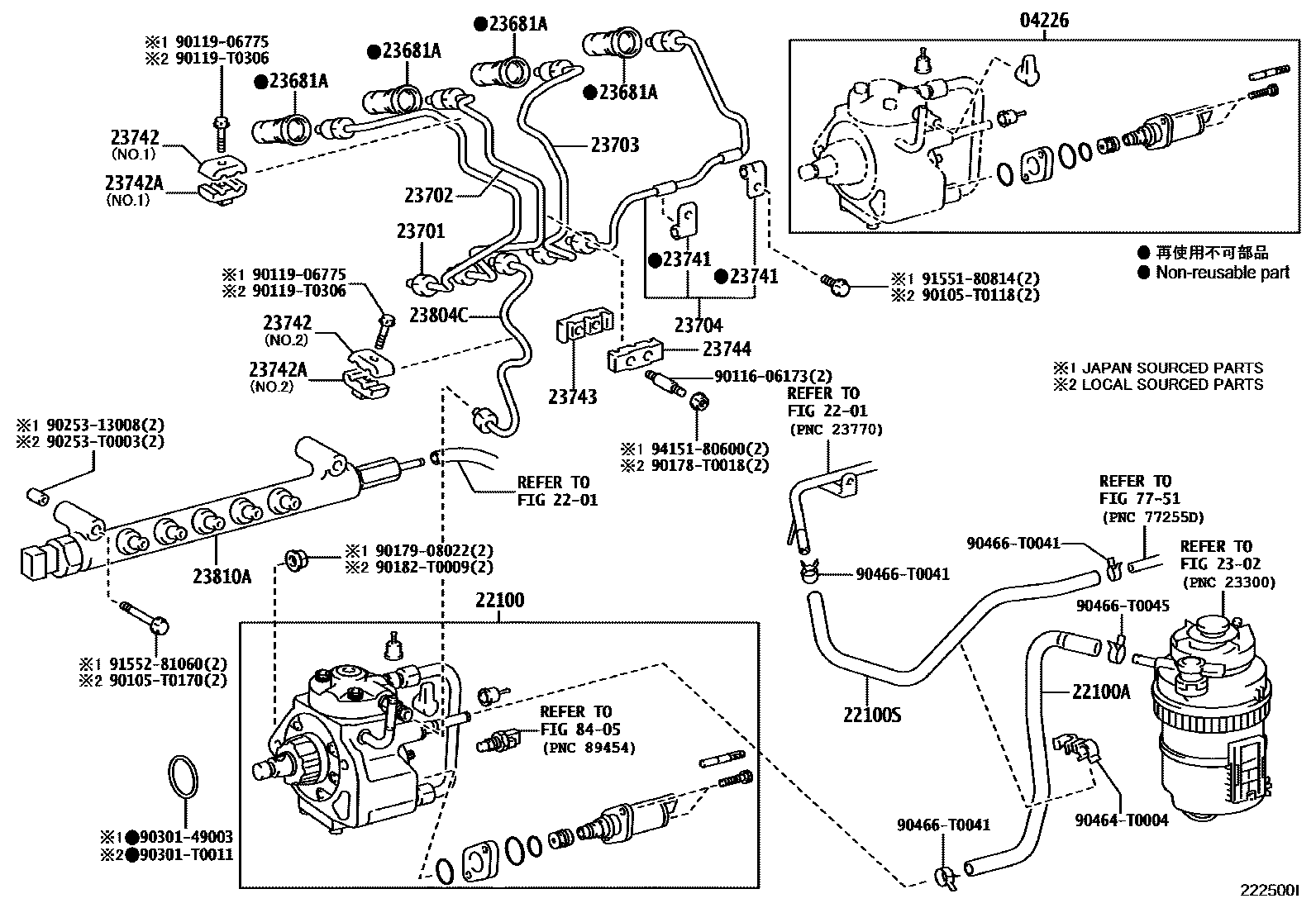

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0004 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L010i2KDFTV..KUN40200408-200801

*130

main04226-0L020i2KDFTV..KUN40..IND200808-201008

2201INJECTION NOZZLE

→ Go to FIG 22-01

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L020i2KDFTV..KUN40..IDN,PHL,TH200408-200801

*130

main22100-0L030i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main22100-0L060i2KDFTV..KUN40..IDN,PHL,TH200801-200805

*163 OR *184

main22100-0L070i2KDFTV..KUN40..IND200812-201101

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L010i2KDFTV..KUN40200408-200812

main23271-0L060i2KDFTV..KUN40200808-201204

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-30150i2KDFTV..KUN40200408-200812

main23273-30250i2KDFTV..KUN40200808-201202

2302FUEL FILTER

→ Go to FIG 23-02

23681ASEAL, NOZZLE HOLDER

main23681-0L010×4i2KDFTV..KUN40..IND200808-201004

*130

main23681-30010×4i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0L010i2KDFTV..KUN40..IND200808-201004

*130

main23701-0L020i2KDFTV..KUN40..WG..IND201004-201201

main23701-30050i2KDFTV..KUN40..IND200507-200708

*163 OR *184

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0L010i2KDFTV..KUN40..IND200808-201004

*130

main23702-0L020i2KDFTV..KUN40..WG..IND201004-201201

main23702-30050i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0L010i2KDFTV..KUN40..IND200808-201004

*130

main23703-0L020i2KDFTV..KUN40..WG..IND201004-201201

main23703-30050i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09015i2KDFTV..KUN40200408-200801

main23704-09050i2KDFTV..KUN40..WG..IND201004-201201

main23704-39075i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L020×2i2KDFTV..KUN40200408-200812

*130

main23741-0L030i2KDFTV..KUN40..WG..IND201004-201201

main23741-30020×2i2KDFTV..KUN40..IND200507-200708

*163 OR *184

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011×2i2KDFTV..KUN40..WG..IND201004-201201

NO.1

main23742-0L050i2KDFTV..KUN40..IND200808-201004

*130,NO.2

main23742-27010i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184,NO.1

main23742-30010i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184,NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i2KDFTV..KUN40..IND200808-201004

*130,NO.1

main23742-0L060i2KDFTV..KUN40200408-200812

*130,NO.2

main23742-30020i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184,NO.2

main23742-58020i2KDFTV..KUN40..IND200507-200708

*163 OR *184,NO.1

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i2KDFTV..KUN40200408-200812

*130

main23743-30011i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

23744CLAMP, INJECTION PIPE, NO.4

main23743-0L012i2KDFTV..KUN40..WG..IND201004-201201

main23743-30011i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0L010i2KDFTV..KUN40..WG..IND201004-201201

main23804-30050i2KDFTV..KUN40..IND200507-200708

*163 OR *184

23810ARAIL ASSY, COMMON

main23810-0L010i2KDFTV..KUN40200408-200712

main23810-0L011i2KDFTV..KUN40..IDN,PHL200909-201008

*163 OR *184,*319,*130,*319

main23810-0L020i2KDFTV..KUN40..IDN,PHL200808-200907

*163 OR *184,*319

main23810-0L030i2KDFTV..KUN40..IDN,PHL201008-201202

*130,*320

main23810-30091i2KDFTV..KUN40..IDN,PHL200907-200909

*163 OR *184,*319

main23810-30100i2KDFTV..KUN40..IDN,PHL201008-201202

*163 OR *184,*320

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

90105T0118

main90105-T0118

90105T0170

main90105-T0170

9011606173

main90116-06173

9011906775

main90119-06775

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

90464T0004

main90464-T0004

90466T0041

main90466-T0041

90466T0045

main90466-T0045

9155180814

main91551-80814

9155281060

main91552-81060

9415180600

main94151-80600

38 parts on this diagram · 3 diagrams in section
