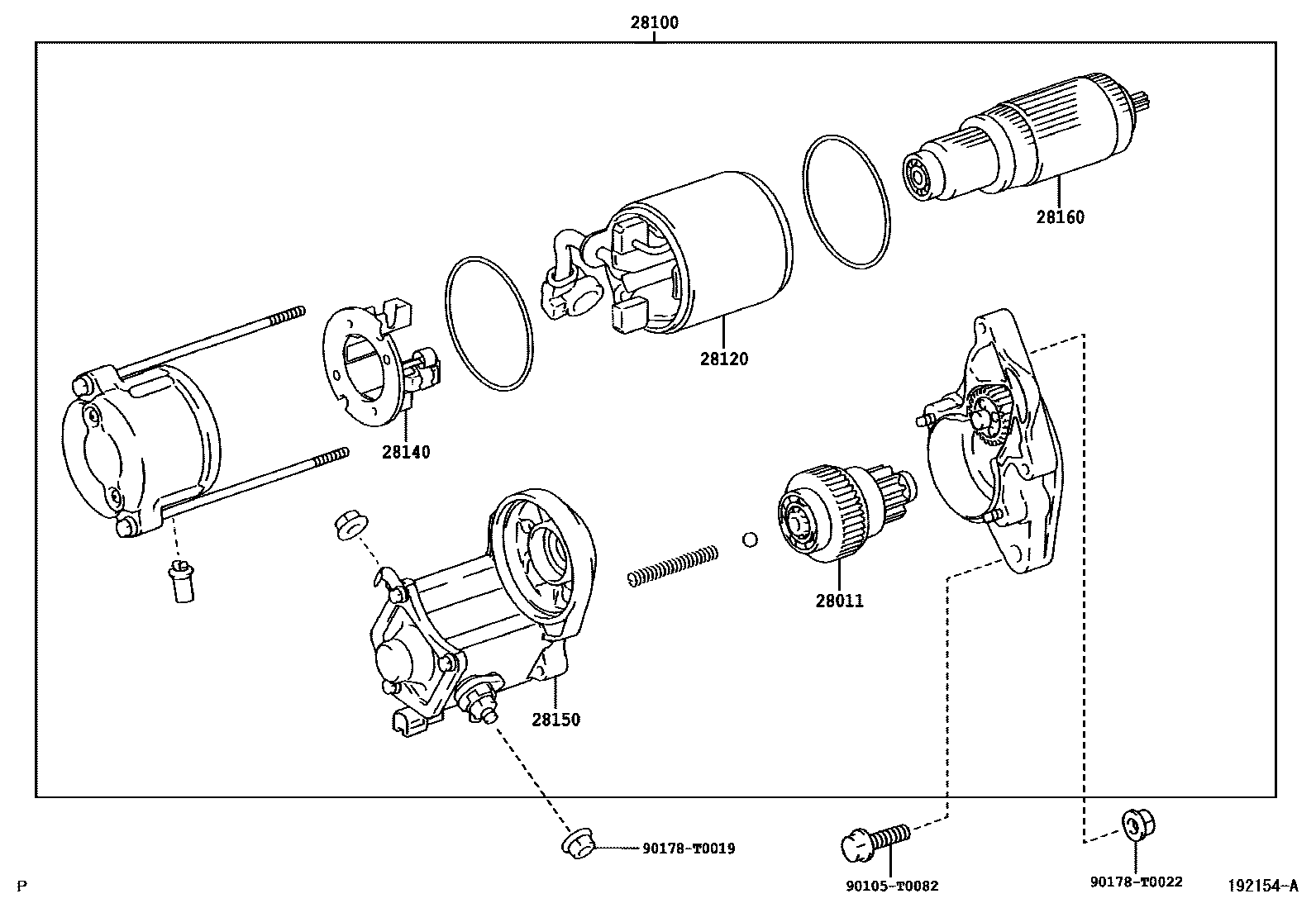

STARTER

0001 112V 2.0KW 0002 112V 2.7KW 0003 112V 1.6KW 0004 112V 2.2KW 0005 112V 1.0KW 0006 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0C070i1TRFE..TGN40..IND200502-200812

main28011-0D120i1TRFE..TGN40..IND201010-201201

main28011-30040i2KDFTV..KUN40..DCR200408-200812

main28011-30050i2KDFTV..KUN40..HDCR200408-200809

main28011-70020i1TRFE..TGN40..IDN,MA,PHL,TH,VN200408-200809

28100STARTER ASSY

main28100-0C030i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,PHL,TH,VN200808-201001

12V 1.0KW

main28100-0C031i1TRFE..TGN40..IDN,PHL,TH,VN201002-201202

12V 1.0KW

main28100-0C070i1TRFE..TGN40..IND200812-201009

12V 1.0KW

main28100-0C071i1TRFE..TGN40..IND201010-201201

12V 1.0KW

main28100-0L040i2KDFTV..KUN40..DCR200408-200710

12V 2.0KW

main28100-0L041i2KDFTV..KUN40..DCR200808-201202

12V 2.0KW

main28100-0L050i2KDFTV..KUN40..HDCR200408-200809

12V 2.7KW

main28100-0L051i2KDFTV..KUN40..HDCR200909-201202

12V 2.7KW

main28100-0L141i1TRFE..TGN40..TAIW201202

12V 2.2KW

main28100-75151i1TRFE..TGN40..TAIW201111

12V 1.0KW

main28100-75190i2TRFE..TGN41200412-200909

12V 1.6KW

main28100-75191i2TRFE..TGN41..TAIW200910-201111

12V 1.6KW

28120YOKE ASSY, STARTER

main28120-0C030i1TRFE..TGN40..IDN,PHL,TH,VN201002-201202

main28120-0C070i1TRFE..TGN40..IND200812-201010

main28120-0L050i2KDFTV..KUN40..HDCR200909-201202

main28120-28040i2TRFE..TGN41200412-200808

main28120-28060i2TRFE..TGN41..TAIW200808-201111

main28120-40130i1TRFE..TGN40..TAIW201111

main28120-67020i2KDFTV..KUN40..HDCR200808-200909

main28120-70050i1TRFE..TGN40..IDN,MA,PHL,TH,VN200408-200809

main28120-YE010i2KDFTV..KUN40..DCR200408-200812

28140HOLDER ASSY, STARTER BRUSH

main28140-0C070i1TRFE..TGN40..IND200812-201010

main28140-54380i2KDFTV..KUN40..DCR200808-201202

main28140-70020i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA200808-201107

main28140-77090i2KDFTV..KUN40..HDCR200808-201202

28150SWITCH ASSY, MAGNET STARTER

main28150-0C070i1TRFE..TGN40..IND200502-200701

main28150-0L040i2KDFTV..KUN40..DCR200408-200711

main28150-0L041i2KDFTV..KUN40..DCR200711-200812

main28150-0L050i2KDFTV..KUN40..HDCR200808-201202

main28150-75150i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA200808-201107

28160ARMATURE ASSY, STARTER

main28160-0C070i1TRFE..TGN40..IND200812-201010

main28160-21060i2TRFE..TGN41..GCC200808-201107

main28160-54140i2KDFTV..KUN40..HDCR200408-200809

main28160-70050i1TRFE..TGN40..IND201010-201202

main28160-YE010i2KDFTV..KUN40..DCR200808-201202

90105T0082

main90105-T0082

90178T0019

main90178-T0019

90178T0022

main90178-T0022

9 parts on this diagram · 6 diagrams in section
