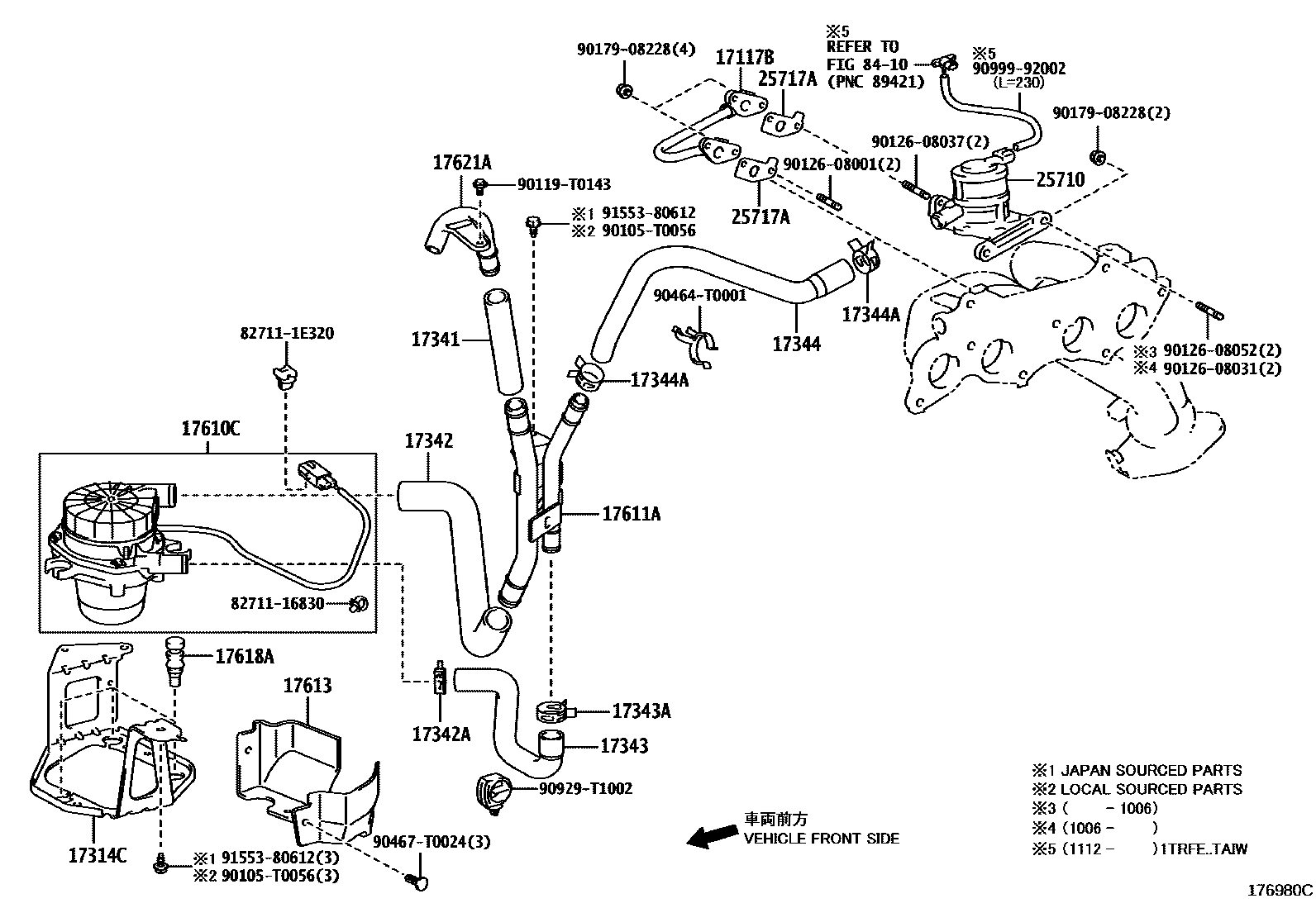

MANIFOLD AIR INJECTION SYSTEM

0001 1 0003 1

17117BPIPE, INTAKE, NO.4

main17117-0C010i1TRFE..TGN40..IND,TH200808-201008

(L)

main17117-0C010i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200710-201008

main17117-0C011i1TRFE,2TRFE..TGN4#..TAIW201008-201112

main17117-0C011i1TRFE..TGN40..IND,TH201008-201412

(L)

main17117-0C020i1TRFE..TGN40201412

main17117-75010i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411-200710

main17117-75011i1TRFE..TGN40..IND201112-201206

(J)

17314CBRACKET, AIR PUMP

main17314-0C010i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0C020i1TRFE..TGN40..IND200502-200812

main17341-0C060i1TRFE..TGN40..TH200411-201107

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-0C020i1TRFE..TGN40..IND200502-200812

main17342-0C060i1TRFE..TGN40..TH200411-201107

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90466-T0034i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-0C020i1TRFE..TGN40..IND200502-201201

main17343-0C060i1TRFE,2TRFE..TGN4#..TAIW,TH200411-201107

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90466-T0034i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-0C020i1TRFE..TGN40..IND200502-201201

main17344-0C060i1TRFE,2TRFE..TGN4#..TAIW,TH200411-201107

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90466-T0034i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

17610CPUMP ASSY, AIR

main17610-0C020i1TRFE..TGN40..IND,TH200411

17611APIPE, AIR PUMP INLET

main17611-0C010i1TRFE,2TRFE..TGN4#..TAIW,TH200411-201107

main17611-0C020i1TRFE..TGN40..IND200502-200812

17613COVER, AIR PUMP

main17613-0C010i1TRFE,2TRFE..TGN4#..TAIW,TH200411-201404

main17613-0C020i1TRFE..TGN40..IND200502-200812

17618AINSULATOR, AIR PUMP

main17618-0C010i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

17621AINLET, AIR PUMP

main17621-0C030i1TRFE..TGN40..IND200502-200812

main17621-0C040i1TRFE,2TRFE..TGN4#..TAIW,TH200411-201107

25710VALVE ASSY, AIR SWITCHING

main25710-75012i1TRFE..TGN40..TAIW201111-201203

main25710-75013i1TRFE..TGN40201203-201208

main25710-75014i1TRFE..TGN40201208-201305

main25710-75015i1TRFE..TGN40201305

main25710-75020i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411-200912

main25710-75021i1TRFE..TGN40..IND,TH200912-201006

main25710-75022i2TRFE..TGN41..TAIW201006-201201

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411-201204

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

90105T0056

main90105-T0056

90119T0143

main90119-T0143

9012608001

main90126-08001

9012608031

main90126-08031

9012608037

main90126-08037

9012608052

main90126-08052

9017908228

main90179-08228

90464T0001

main90464-T0001

90467T0024

main90467-T0024

90929T1002

main90929-T1002

9099992002

main90999-92002

9155380612

main91553-80612

31 parts on this diagram · 2 diagrams in section
