MANIFOLD

0001 1 0003 1 0004 1 0006 1 0009 1

04175GASKET KIT, TURBOCHARGER

main04175-0L010i2KDFTV..KUN40200408-200904

sub04175-0L011

main04175-0L011i2KDFTV..KUN40..INDWG201105-201201

*130,*321

sub04175-0L012

main04175-0L011i2KDFTV..KUN40..INDWG200904-201202

sub04175-0L012

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0L010i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200408-201202

*130

sub15407-0L012

main15407-30031i2KDFTV..KUN40200507-200605

*163 OR *184

sub15407-30032

main15407-30032i2KDFTV..KUN40..IDN,PHL,TH200605-200710

*163 OR *184

sub15407-30033

main15407-30033i2KDFTV..KUN40..IDN,PHL,TH200710-201202

*163 OR *184

main15407-30061i2KDFTV..KUN40..WG..IND201004-201201

*130

sub15407-30090

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main90401-T0004i2KDFTV..KUN40200408-201202

*130

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i2KDFTV..KUN40200408-201202

*130

main90904-30004i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

15471GASKET, TURBO OIL INLET

main15471-0L010i2KDFTV..KUN40200408-200904

*130

sub15471-0L011

main15471-0L011i2KDFTV..KUN40200904-201202

*130

main15471-30010i2KDFTV..KUN40..IDN,PHL200507-200811

*163 OR *184

sub15471-30011

main15471-30011i2KDFTV..KUN40..IDN,PHL200811-201202

*163 OR *184

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0L010i2KDFTV..KUN40200408-201202

*130

main15472-30010i2KDFTV..KUN40..IDN,PHL201005-201202

*163 OR *184

main15472-67010i2KDFTV..KUN40..IDN,PHL,TH200507-201005

*163 OR *184

sub15472-30010

17111MANIFOLD, INTAKE

main17101-0L030i2KDFTV..KUN40..WG..IND201004-201201

main17111-0L020i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200408-201112

*130

main17111-0L020i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(L)

main17111-30100i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(J)

main17111-30100i2KDFTV..KUN40..IND200507-201202

*163 OR *184

main17120-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200408-201508

sub17120-0C011

main17120-0C011i1TRFE..TGN40201509-201606

main17120-0C020i2TRFE..TGN41200412-201111

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-T0011i2KDFTV..KUN40200408-201202

*130

main90126-08026i1TRFE..TGN40201502

(J)

main90126-T0003i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201204

(L)

main92122-80822i2KDFTV..KUN40..IND200507-201202

*163 OR *184

17118STAY, MANIFOLD

main17118-0C030i1TRFE..TGN40..IDN,TH200812-201107

main17118-0L030i2KDFTV..KUN40..IND200408-201202

*130

main17118-0L050i2KDFTV..KUN40..WG..IND201004-201201

main17118-30070i2KDFTV..KUN40..IND200507-201202

*163 OR *184

main17118-75060i2TRFE..TGN41200412-201111

main17118-75070i1TRFE..TGN40..IDN,TH200408-200812

17119STAY, MANIFOLD, NO.2

main17118-0L040i2KDFTV..KUN40..INDWG200408-201202

*130

sub17118-30080

main17118-0L040i2KDFTV..KUN40..INDWG201004-201009

sub17118-30080

main17118-30080i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

17141MANIFOLD, EXHAUST

main17141-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,PHL,VN200808-201204

*191

main17141-0C010i1TRFE,2TRFE..TGN4#..GCC,IDN,MA,PHL,VN200408-200809

main17141-0C030i1TRFE..TGN40..TH200808-201107

*191

main17141-0C030i1TRFE..TGN40..IND,TH200411-200812

main17141-0C070i1TRFE..TGN40..IND200812-201204

*191

main17141-0C070i1TRFE,2TRFE..TGN4#..TAIW200707

main17141-0L010i2KDFTV..KUN40..IND200408-201202

*130

main17141-0L030i2KDFTV..KUN40..WG..IND201004-201201

*130

main17141-30070i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0C010i1TRFE,2TRFE..TGN4#..GCC,IDN,MA,PHL,VN200408-201204

*191

main17173-0C020i1TRFE,2TRFE..TGN4#..IND,TAIW,TH200411

main17173-0C020i1TRFE..TGN40..IND,TH200808-201204

*191

main17173-0L010i2KDFTV..KUN40..IND200408-201112

*130

sub17173-0L011

main17173-0L010i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(L)

sub17173-0L011

main17173-0L020i2KDFTV..KUN40..WG..IND201112-201201

*130,(L)

sub17173-0L021

main17173-0L020i2KDFTV..KUN40..WG..IND201004-201112

*130

sub17173-0L021

main17173-30020i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main17173-30020i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(J)

main17173-30030i2KDFTV..KUN40..WG..IND201112-201201

*130,(J)

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

main17177-0L011i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200408-201202

*130

main17177-0L011i2KDFTV..KUN40..WG..IND201004-201201

main17177-30011i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

17201TURBOCHARGER SUB-ASSY

main17201-0L030i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200608-201202

*163 OR *184,(L)

main17201-0L030i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200408-201202

*130

main17201-0L080i2KDFTV..KUN40..WG..IND201004-201201

main17201-30120i2KDFTV..KUN40..IDN,PHL200608-201202

*163 OR *184,(J)

sub17201-0L030

main17201-30120i2KDFTV..KUN40200507-200608

*163 OR *184

sub17201-0L030

17230AREPAIR ACTUAOR ASSY, W/BRACKET

main17230-39085i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201202

*130

main17230-39085i2KDFTV..KUN40200408-200812

main17230-39085i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

main17230-39135i2KDFTV..KUN40..WG..IND201004-201201

17230BWASHER, PLATE(FOR REPAIR ACTUATOR SET)

main90201-06042i2KDFTV..KUN40..IDN,PHL200808-201202

T=0.5,*163 OR *184

main90201-06042i2KDFTV..KUN40200408-201202

T=0.5

main90201-06043i2KDFTV..KUN40..IDN,PHL200408-201202

T=1.0

main90201-06043i2KDFTV..KUN40..IDN,PHL200808-201202

T=1.0,*163 OR *184

main90201-06044i2KDFTV..KUN40..IDN,PHL200408-201202

T=2.0

main90201-06044i2KDFTV..KUN40..IDN,PHL200808-201202

T=2.0,*163 OR *184

main90201-06045i2KDFTV..KUN40..IDN,PHL200808-201202

T=3.0,*163 OR *184

main90201-06045i2KDFTV..KUN40..IDN,PHL200408-201202

T=3.0

17230CBOLT, W/WASHER(FOR REPAIR ACTUATOR SET)

main91621-60620i2KDFTV..KUN40200808-201202

*163 OR *184

main91621-60620i2KDFTV..KUN40200408-200812

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-0L010i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200408-201111

*130

sub17278-08010

main17278-0L010i2KDFTV..KUN40..WG..IND201004-201112

sub17278-08010

main17278-0L010i2KDFTV..KUN40..WG..IND201112-201201

(L)

sub17278-08010

main17278-0L010i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201111-201202

*130,(L)

sub17278-08010

main17278-67010i2KDFTV..KUN40..IDN,PHL,TH200507-201202

*163 OR *184

main17278-67010i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201111-201202

*130,(J)

main17278-67010i2KDFTV..KUN40..WG..IND201112-201201

(J)

17279GASKET, TURBINE OUTLET ELBOW

main17279-0L020i2KDFTV..KUN40..WG..IND200812-201112

sub17279-0L021

main17279-0L020i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(L)

sub17279-0L021

main17279-0L020i2KDFTV..KUN40200408-201112

*130

sub17279-0L021

main17279-0L020i2KDFTV..KUN40..WG..IND201112-201201

(L)

sub17279-0L021

main17279-30020i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main17279-30020i2KDFTV..KUN40..WG..IND201112-201201

(J)

main17279-30020i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201112-201202

*130,(J)

17291ELBOW, TURBINE OUTLET

main17291-0L030i2KDFTV..KUN40..HDCR200408-201202

*130

main17291-0L081i2KDFTV..KUN40..WG..IND201004-201201

main17291-30020i2KDFTV..KUN40..HDCR200507-201202

*163 OR *184

17294HOSE, ACTUATOR

main90445-12151i2KDFTV..KUN40..IND200507-201202

*163 OR *184,(J)

main90445-T0010i2KDFTV..KUN40..IDN,PHL200408-201202

*130

main90445-T0010i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200608-201202

*163 OR *184,(L)

main90445-T0011i2KDFTV..KUN40..WG..IND201004-201201

17294ACLIP(FOR ACTUATOR HOSE)

main90466-12003i2KDFTV..KUN40..IND200507-201202

*163 OR *184,(J)

main90466-T0008i2KDFTV..KUN40200408-201202

*130

main90466-T0008i2KDFTV..KUN40..IND200608-201202

*163 OR *184,(L)

main90466-T0008i2KDFTV..KUN40..WG..IND201004-201201

17299STAY, TURBINE OUTLET ELBOW

main17299-0L010i2KDFTV..KUN40..INDWG200408-201202

*130

sub17299-30030

main17299-0L010i2KDFTV..KUN40..INDWG201004-201009

sub17299-30030

main17299-0L040i2KDFTV..KUN40..WG..IND201004-201201

main17299-30030i2KDFTV..KUN40..IND200507-201202

*163 OR *184

1901

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0L030i2KDFTV..KUN40..INDWG200411-201202

*114=TOYOTA/0L030/Y,*130

main25051-0L060i2KDFTV..KUN40..IND200603-201004

*130

main25051-0L060i2KDFTV..KUN40..INDWG201004-201009

main25051-30030i2KDFTV..KUN40..HDCR200507-201202

*114=TOYOTA/30030/N,*163 OR *184

main25051-30050i2KDFTV..KUN40..IND200604-200708

*163 OR *184

sub25051-0L060

90105T0118

main90105-T0118

90105T0156

main90105-T0156

9011606048

main90116-06048

9011608260

main90116-08260

9011610219

main90116-10219

90116T0006

main90116-T0006

90116T0015

main90116-T0015

9011906748

main90119-06748

90119T0057

main90119-T0057

9012610035

main90126-10035

90126T0009

main90126-T0009

90177T0006

main90177-T0006

90177T0009

main90177-T0009

90178T0019

main90178-T0019

9017906298

main90179-06298

9017908229

main90179-08229

9017910070

main90179-10070

90182T0007

main90182-T0007

9020110109

main90201-10109

90560T0006

main90560-T0006

9155180814

main91551-80814

9155180835

main91551-80835

9167100816

main91671-00816

9167180814

main91671-80814

9212280870

main92122-80870

9415180800

main94151-80800

9418401041

main94184-01041

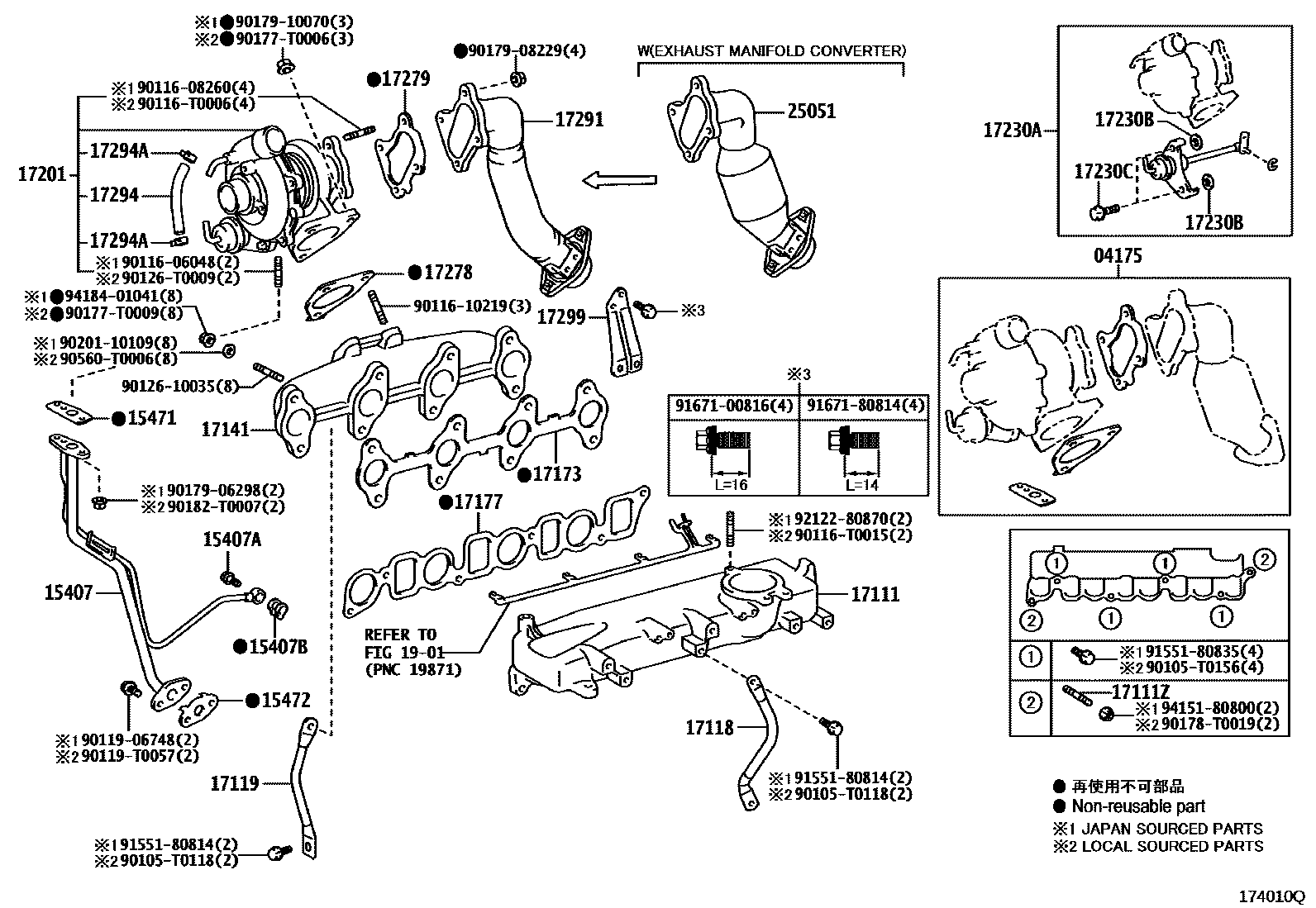

52 parts on this diagram · 5 diagrams in section
