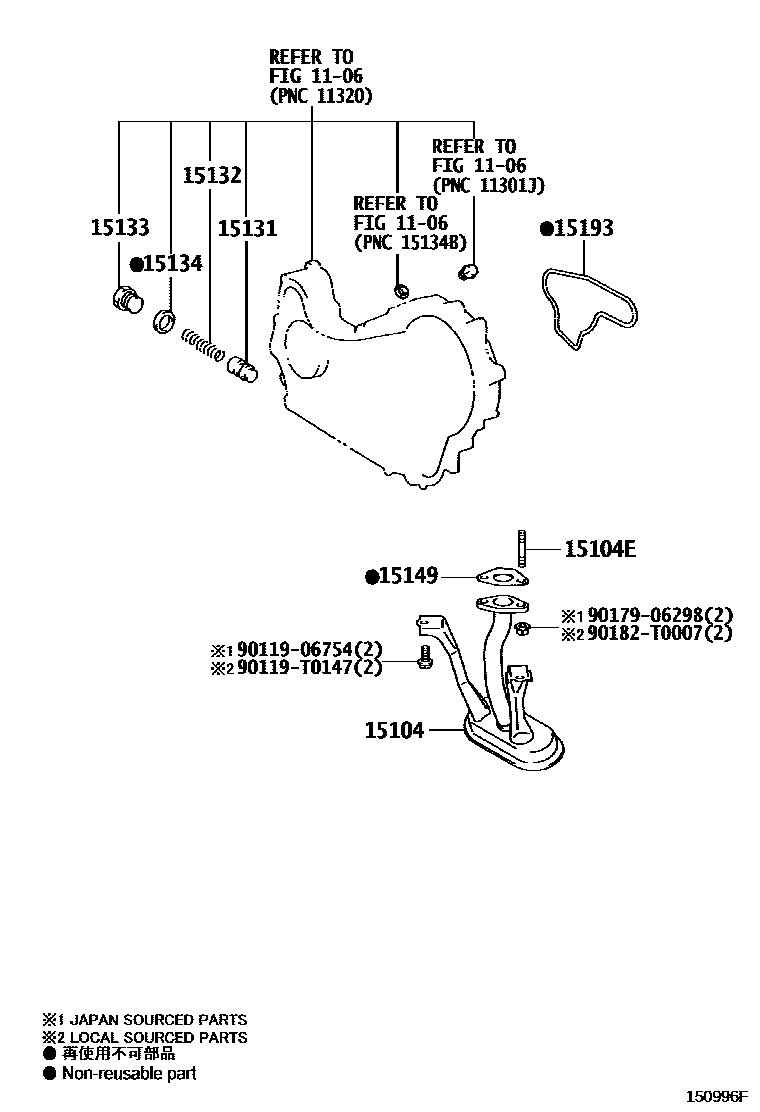

ENGINE OIL PUMP

0001 1 0002 1 0004 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191

main15104-0C050i1TRFE..TGN40201503

*191

main15104-0L010i2KDFTV..KUN40200808-201105

*130

main15104-0L011i2KDFTV..KUN40201105-201110

*130

main15104-30050i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main90116-T0019×2i2KDFTV..KUN40200408-200410

*130

main90116-T0020×2i2KDFTV..KUN40200410-200812

*130

main90126-06029i1TRFE..TGN40201503

(J)

main90126-08037×2i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201503

main90126-T0012i1TRFE..TGN40201503

(L)

15131VALVE, OIL PUMP RELIEF

main15131-46040i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN; 2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130; *163 OR *184

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

main15132-0L030i2KDFTV..KUN40200808-201202

*130,(L)

main15132-17010i2KDFTV..KUN40201201-201202

*130,(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0C010i1TRFE..TGN40201605-201606

main15133-17010i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN; 2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130; *163 OR *184

15149GASKET, OIL STRAINER FLANGE

main15149-0L010i2KDFTV..KUN40200808-201202

*130

main15149-67010i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

15193GASKET, OIL PUMP

main15193-0L010i2KDFTV..KUN40200408-200812

*130

main15193-67011i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

9011906754

main90119-06754

90119T0147

main90119-T0147

9017906298

main90179-06298

90182T0007

main90182-T0007

13 parts on this diagram · 3 diagrams in section
