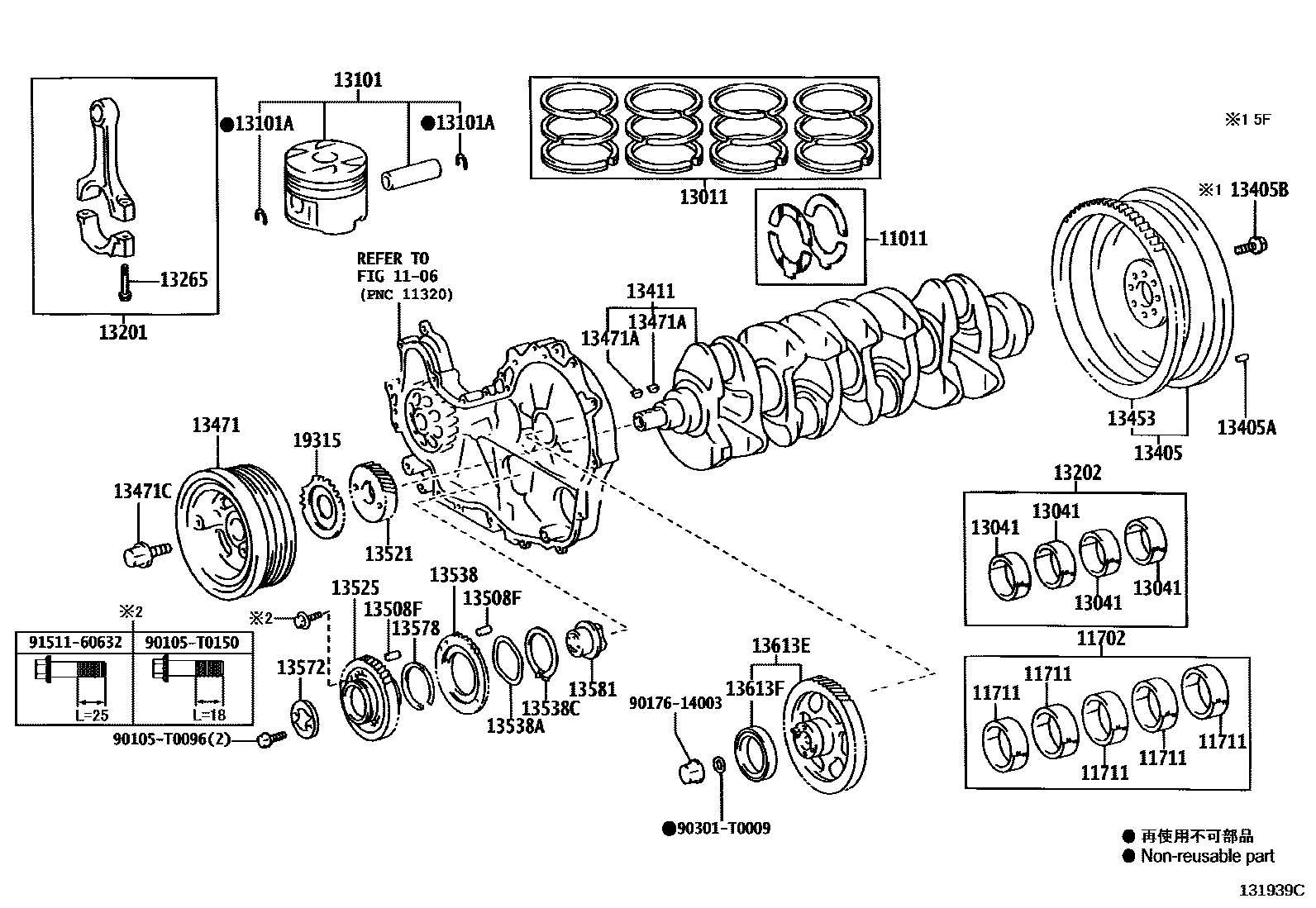

CRANKSHAFT & PISTON

0001 1*130 0002 1*163 OR *184 0004 1 0005 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-0C010×2i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

STD,(L)

main11011-0L020i2KDFTV..KUN40200808-201202

STD,*130

main11011-30010i2KDFTV..KUN40..IDN,PHL,TH200507-200809

STD,*163 OR *184

main11012-30010i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

O/S 0.125,*130; O/S 0.125,*163 OR *184

main11013-30010i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

O/S 0.250,*130; O/S 0.250,*163 OR *184

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

11702BEARING SET, CRANKSHAFT

main11704-30020i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

U/S 0.25,*130; U/S 0.25,*163 OR *184

main11704-75031i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201408

U/S 0.25

main11704-75032i1TRFE..TGN40201408

U/S 0.25

main11705-30020i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

U/S 0.50,*130; U/S 0.50,*163 OR *184

11711BEARING, CRANKSHAFT

main11701-0C010-01×5i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

MARK1,(L):REFER R/M

main11701-0C010-02×5i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201407

MARK2,(L)

main11701-0C010-03×5i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201407

MARK3,(L)

main11701-0C011-01×5i1TRFE..TGN40201408

MARK 1,(L)

main11701-0C011-02×5i1TRFE..TGN40201408

MARK 2,(L)

main11701-0C011-03×5i1TRFE..TGN40201408

MARK 3,(L)

main11701-0C011-04×5i1TRFE..TGN40201408

MARK 4,(L)

main11701-0C011-05×5i1TRFE..TGN40201408

MARK 5,(L)

main11701-0L020-02×5i2KDFTV..KUN40200408-200812

MARK2,*130:REFER R/M

main11701-0L020-03×5i2KDFTV..KUN40200808-201202

MARK3,*130:REFER R/M

main11701-0L020-04×5i2KDFTV..KUN40200408-200812

MARK4,*130:REFER R/M

main11701-0L020-05×5i2KDFTV..KUN40200408-200812

MARK5,*130:REFER R/M

main11701-0L020-06×5i2KDFTV..KUN40200408-200812

MARK6,*130:REFER R/M

main11701-30020-02×5i2KDFTV..KUN40..IDN,PHL200808-201202

MARK2,*163 OR *184,RRM

main11701-30020-03×5i2KDFTV..KUN40..IDN,PHL,TH200507-200809

MARK3,*163 OR *184,RRM

main11701-30020-04×5i2KDFTV..KUN40..IND200507-200708

MARK4,*163 OR *184,RRM

main11701-30020-05×5i2KDFTV..KUN40..IND200507-200708

MARK5,*163 OR *184,RRM

main11701-30020-06×5i2KDFTV..KUN40..IDN,PHL,TH200507-200809

MARK6,*163 OR *184,RRM

13011RING SET, PISTON

main13011-0C010i1TRFE..TGN40..5F..VN;1TRFE..TGN40..IND,MA,PHL,TAIW,TH200411

STD,(L)

main13011-0C030i2TRFE..TGN41..GCC200808-201107

STD,(L)

main13011-0L020i2KDFTV..KUN40200808-201202

STD,*130

main13011-30080i2KDFTV..KUN40..IND200507-200708

STD,*163 OR *184

main13011-75120i1TRFE..TGN40..IDN200408-200806

STD

main13013-30030i2KDFTV..KUN40200408-200801

O/S 0.50

main13013-30080i2KDFTV..KUN40..IDN,PHL200808-201202

O/S 0.50,*163 OR *184

main13013-75100i1TRFE..TGN40..5F..VN;1TRFE..TGN40..IND,MA,PHL,TAIW,TH200411

O/S 0.50

main13013-75110i2TRFE..TGN41200412-201111

O/S 0.50

main13013-75120i1TRFE..TGN40..IDN200408-200806

O/S 0.50

13041BEARING, CONNECTING ROD

main13041-0C020-04×4i1TRFE..TGN40200408-200803

MARK4

main13041-0C020-05×4i1TRFE..TGN40200408-200803

MARK5

main13041-0C020-06×4i1TRFE..TGN40200408-200803

MARK6

main13041-0C050-04×4i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

MARK4,(L):REFER R/M

main13041-0C050-05×4i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200803-201501

MARK5,(L),REFER R/M

main13041-0C050-06×4i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

MARK6,(L):REFER R/M

main13041-0C052-04×4i1TRFE..TGN40201501-201602

MARK 4,(L),REFER R/M

main13041-0C052-05×4i1TRFE..TGN40201501-201602

MARK 5,(L),REFER R/M

main13041-0C052-06×4i1TRFE..TGN40201501-201602

MARK 6,(L),REFER R/M

main13041-0C060-04×4i1TRFE..TGN40201603

MARK 4,(L),REFER R/M

main13041-0C060-05×4i1TRFE..TGN40201603

MARK 5,(L),REFER R/M

main13041-0C060-06×4i1TRFE..TGN40201603

MARK 6,(L),REFER R/M

main13041-0L020-02×4i2KDFTV..KUN40200808-201202

MARK2,*130:REFER R/M

main13041-0L020-03×4i2KDFTV..KUN40200408-200812

MARK3,*130:REFER R/M

main13041-0L020-04×4i2KDFTV..KUN40200408-200812

MARK4,*130:REFER R/M

main13041-0L020-05×4i2KDFTV..KUN40200408-200812

MARK5,*130:REFER R/M

main13041-0L020-06×4i2KDFTV..KUN40200808-201202

MARK6,*130:REFER R/M

main13041-30020-02×4i2KDFTV..KUN40..IDN,PHL,TH200507-200809

MARK2,*163 OR *184,RRM

main13041-30020-03×4i2KDFTV..KUN40..IND200507-200708

MARK3,*163 OR *184,RRM

main13041-30020-04×4i2KDFTV..KUN40..IDN,PHL200808-201202

MARK4,*163 OR *184,RRM

main13041-30020-05×4i2KDFTV..KUN40..IND200507-200708

MARK5,*163 OR *184,RRM

main13041-30020-06×4i2KDFTV..KUN40..IDN,PHL,TH200507-200809

MARK6,*163 OR *184,RRM

main13041-75040-04×4i2TRFE..TGN41200412-200803

MARK4,(J)

main13041-75040-05×4i2TRFE..TGN41200412-200803

MARK5,(J)

main13041-75040-06×4i2TRFE..TGN41200412-200803

MARK6,(J)

main13041-75070-04×4i1TRFE..TGN40201603

MARK 4,(J),REFER R/M

main13041-75070-05×4i1TRFE..TGN40201603

MARK 5,(J),REFER R/M

main13041-75070-06×4i1TRFE..TGN40201603

MARK 6,(J),REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-0C010×4i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

STD,(L)

main13101-0C020×4i2TRFE..TGN41..GCC200808-201107

STD,(L)

main13101-0L020-01×4i2KDFTV..KUN40200408-200812

STD,MARK1,*130:REFER R/M

main13101-0L020-02×4i2KDFTV..KUN40200408-200812

STD,MARK2,*130:REFER R/M

main13101-0L020-03×4i2KDFTV..KUN40..IDN,PHL200808-200812

STD,MARK3,*130:REFER R/M

main13101-0L051-01×4i2KDFTV..KUN40..IND200812-201004

STD,MARK 1,*130:REFER R/M

main13101-0L051-02×4i2KDFTV..KUN40..IND200812-201004

STD,MARK 2,*130:REFER R/M

main13101-0L051-03×4i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200812-201202

STD,MARK 3,*130:REFER R/M

main13101-0L060-01×4i2KDFTV..KUN40..WG..IND201004-201201

STD,MARK1,*130:REFER R/M

main13101-0L060-02×4i2KDFTV..KUN40..WG..IND201004-201201

STD,MARK2,*130:REFER R/M

main13101-0L060-03×4i2KDFTV..KUN40..WG..IND201004-201201

STD,MARK3,*130:REFER R/M

main13101-30031-01×4i2KDFTV..KUN40..IDN,PHL200808-200812

STD,MARK1,*163 OR *184,RRM

main13101-30031-02×4i2KDFTV..KUN40..IDN,PHL200808-200812

STD,MARK2,*163 OR *184,RRM

main13101-30031-03×4i2KDFTV..KUN40..IND200507-200708

STD,MARK3,*163 OR *184,RRM

main13101-30081-01×4i2KDFTV..KUN40..IDN,PHL200812-201202

STD,MARK1,*163 OR *184,RRM

main13101-30081-02×4i2KDFTV..KUN40..IDN,PHL200812-201202

STD,MARK2,*163 OR *184,RRM

main13101-30081-03×4i2KDFTV..KUN40..IDN,PHL200812-201202

STD,MARK3,*163 OR *184,RRM

main13103-0L051×4i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200812-201202

O/S 0.50,*130

main13103-0L060×4i2KDFTV..KUN40..WG..IND201004-201201

O/S 0.50,*130

main13103-30030×4i2KDFTV..KUN40200801-200812

O/S 0.50,*130

main13103-30031×4i2KDFTV..KUN40..IDN,PHL200808-200812

O/S 0.50,*163 OR *184

main13103-30081×4i2KDFTV..KUN40..IDN,PHL200812-201202

O/S 0.50,*163 OR *184

main13103-75120×4i1TRFE..TGN40..PHL,VN201201-201202

O/S 0.50,(L)

main13103-75130×4i2TRFE..TGN41..GCC200808-201107

O/S 0.50

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main90520-37014×8i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130; *163 OR *184

13201ROD SUB-ASSY, CONNECTING

main13201-09301×4i1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200801-201505

*191

main13201-09520×4i1TRFE..TGN40200408-200712

main13201-09670×4i2TRFE..TGN41200502-200712

(L)

main13201-09671×4i2TRFE..TGN41..GCC200808-201107

(L)

main13201-09B70×4i1TRFE..TGN40201505-201603

main13201-09B71×4i1TRFE..TGN40201603

main13201-0L010×4i2KDFTV..KUN40200608-200812

*130

main13201-0L011×4i2KDFTV..KUN40201008-201202

*130,(L)

main13201-0L030×4i2KDFTV..KUN40200408-200608

*130

main13201-30040×4i2KDFTV..KUN40..IDN,PHL200808-200903

*163 OR *184

main13201-30041×4i2KDFTV..KUN40201008-201202

*130,(J)

main13201-79575×4i2TRFE..TGN41200502-200506

(J)

main13201-79585×4i2TRFE..TGN41200607-200712

(J)

13202BEARING SET, CONNECTING ROD

main13204-30020i2KDFTV..KUN40200408-200812

U/S 0.25

main13204-75040i2TRFE..TGN41200412-200711

U/S 0.25

main13204-75050i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

U/S 0.25

main13204-75052i1TRFE..TGN40201501-201603

U/S 0.25

main13204-75070i1TRFE..TGN40201603

U/S 0.25

main13205-30020i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

U/S 0.50,*130; U/S 0.50,*163 OR *184

13265BOLT, CONNECTING ROD

main13265-28010×8i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

main13265-67021×8i2KDFTV..KUN40..RHD;2KDFTV..KUN40..DCR..PHL;2KDFTV..KUN40..GL..HDCR..PHL200608-200812

13405FLYWHEEL SUB-ASSY

main13405-0C010i1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201204

(L)

main13405-0C030i2TRFE..TGN41..5F..GCC200808-201107

(L)

main13405-0L010i2KDFTV..KUN40..DCR200408-200812

*130

main13405-0L030i2KDFTV..KUN40..HDCR200808-201202

*130

main13405-30020i2KDFTV..KUN40..DCR..(IDN,PHL)200507-200809

*163 OR *184

main13405-67030i2KDFTV..KUN40..HDCR200507-200809

*163 OR *184

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i2KDFTV..KUN40..HDCR200808-201202

L=15,OD=5,*163 OR *184

main90250-08054×3i2KDFTV..KUN40..DCR..(IDN,PHL)200507-200809

L=23,OD=8,*163 OR *184

main90250-T0010×3i2TRFE..TGN41..5F200507

L=23,OD=8,(L)

main90250-T0013i2KDFTV..KUN40..HDCR200808-201202

L=15,OD=5,*130

13405BBOLT, FLYWHEEL SETTING

main90105-13010×8i2KDFTV..KUN40..DCR..(IDN,PHL)200507-200809

*163 OR *184

main90105-T0113×8i2KDFTV..KUN40..DCR200808-201202

*130

main90910-02116×10i1TRFE..TGN40..STD201408

(J)

main90910-T2004×10i1TRFE..TGN40..STD201408

(L)

13411CRANKSHAFT

main13401-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201204

*191,(L)

main13401-0C020i2TRFE..TGN41..GCC200808-200904

(L)

main13401-0C021i2TRFE..TGN41..GCC200904-201107

(L)

main13401-0L030i2KDFTV..KUN40200408-200412

*130

main13401-0L100i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL201101-201202

*130,(L); *163 OR *184,(L)

main13401-30020i2KDFTV..KUN40200808-200908

*130,(J)

main13401-30030i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

main13401-30060i2KDFTV..KUN40..IDN,PHL201101-201202

*163 OR *184,(J)

main13401-75010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201204

*191,(J)

main13401-75040i2TRFE..TGN41..GCC200808-201107

(J)

13453GEAR, FLYWHEEL RING

main13453-0C020i1TRFE..TGN40..STD..TAIW201111

main13453-0L010i2KDFTV..KUN40200408-200812

*130

main13453-67030i2KDFTV..KUN40..IND200507-200708

*163 OR *184

13471PULLEY, CRANKSHAFT

main13408-0C010i1TRFE,2TRFE..TGN4#200408-200704

*191

main13408-0C030i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191

main13408-0L020i2KDFTV..KUN40200408-200812

*130

main13408-30010i2KDFTV..KUN40..IDN,PHL200808-200901

*163 OR *184

main13408-30011i2KDFTV..KUN40..IDN,PHL200901-201202

*163 OR *184

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005×2i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

(J)

main90280-T0002×2i2KDFTV..KUN40200808-201202

*130,(L)

main90280-T0003×2i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

(L)

main95161-30516×2i2KDFTV..KUN40200412-200812

*130,(J)

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i1TRFE..TGN40201406

(J)

main90109-T0038i2TRFE..TGN41..GCC201102-201204

(L)

main90119-18003i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

main90119-T0218i2KDFTV..KUN40200408-200812

*130

13508FPIN, STRAIGHT(FOR IDLE GEAR)

main90250-05027×2i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130,(J); *163 OR *184

main90250-T0011×2i2KDFTV..KUN40200808-201202

*130,(L)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0C010i2TRFE..TGN41..GCC201008-201102

main13521-0C011i1TRFE..TGN40201406

(L)

main13521-0L010i2KDFTV..KUN40200408-200812

*130

main13521-67020i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main13521-75021i1TRFE..TGN40201406

(J)

13525GEAR, IDLE, NO.1

main13508-0L010i2KDFTV..KUN40200408-200812

*130

main13508-30011i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130,*300T/P A:SEE; *163 OR *184,TYPE A

13538GEAR, IDLE SUB, NO.2

main13538-0L010i2KDFTV..KUN40200408-200812

*130

main13538-67900i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

13538AWASHER, WAVE

main90206-69001i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130,(J); *163 OR *184

main90206-T0001i2KDFTV..KUN40200408-200812

*130

13538CRING, SHAFT SNAP

main90520-58002i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130,(J); *163 OR *184

main90520-T0032i2KDFTV..KUN40200408-200812

*130

13572PLATE, IDLE GEAR THRUST

main13572-0L010i2KDFTV..KUN40200408-200812

*130

main13572-67041i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

13578SPRING, IDLE GEAR

main13578-0L010i2KDFTV..KUN40200408-200812

*130

main13578-67010i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130,(J); *163 OR *184

13581SHAFT, IDLE GEAR, NO.1

main13581-0L010i2KDFTV..KUN40200408-200812

*130

main13581-67041i2KDFTV..KUN40..IND200507-200708

*163 OR *184

13613EGEAR, INJECTION

main13603-0L010i2KDFTV..KUN40201201-201202

*130,(L)

main13603-30020i2KDFTV..KUN40..IND200507-200708

*163 OR *184

13613FBEARING, RADIAL BALL

main90363-67001i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main90363-T0013i2KDFTV..KUN40200808-201202

*130

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-0L010i2KDFTV..KUN40200408-200812

*130

main19315-30010i2KDFTV..KUN40..IND200507-200708

*163 OR *184

90105T0096

main90105-T0096

90105T0150

main90105-T0150

9017614003

main90176-14003

90301T0009

main90301-T0009

9151160632

main91511-60632

36 parts on this diagram · 4 diagrams in section
