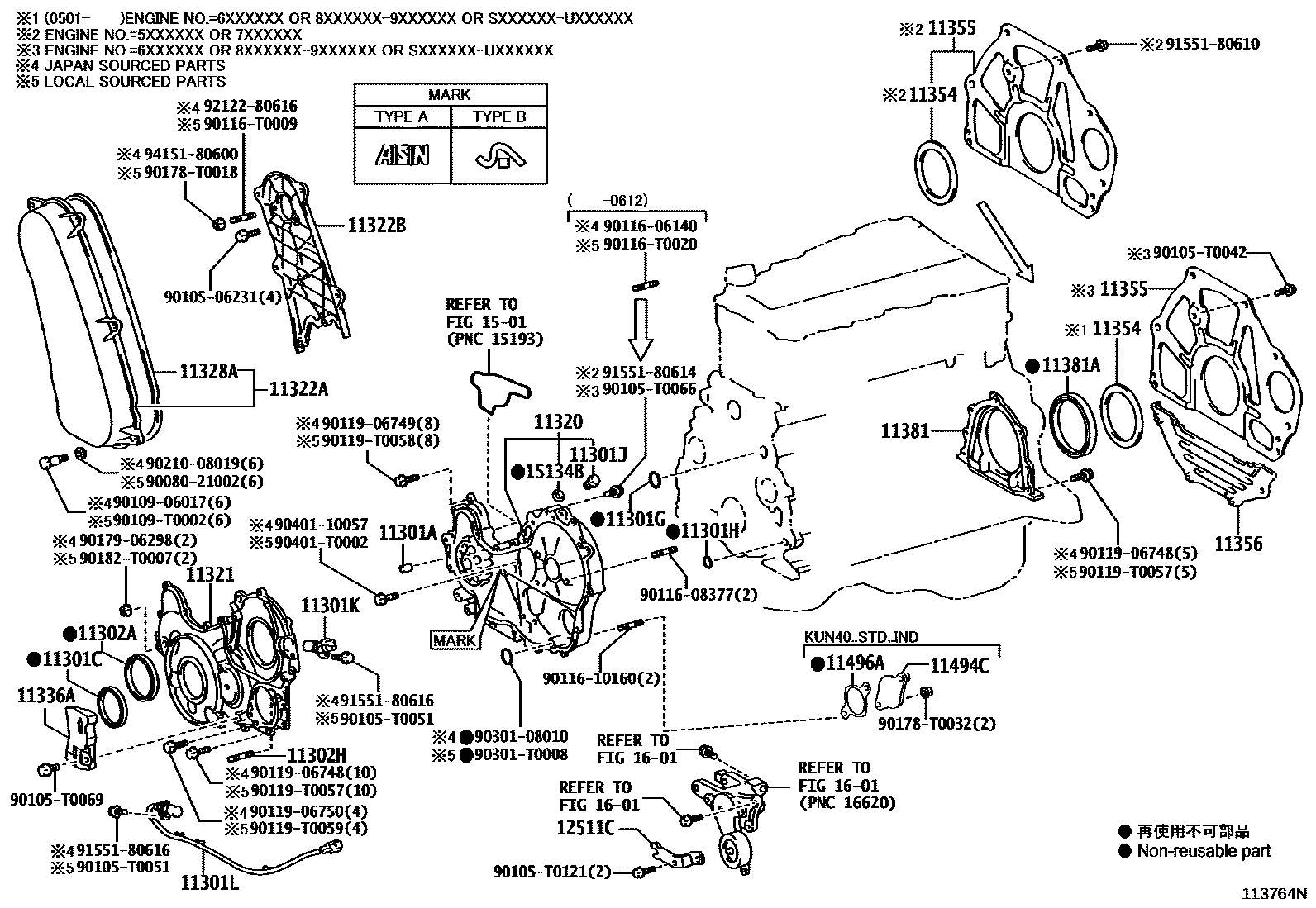

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0004 1 0005 1

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i2KDFTV..KUN40..IND200507-200708

L=18,OD=8,*163 OR *184

main90250-T0007i2KDFTV..KUN40200408-200812

L=18,OD=8,*130

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31096i2KDFTV..KUN40200408-200812

*130

main90311-50017i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

main90311-T0025i1TRFE,2TRFE..TGN4#200408-200704

(L)

main90311-T0032i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200704-201501

(L)

main90311-T0060i1TRFE..TGN40201502

(L)

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

main90301-T0010i2KDFTV..KUN40200808-201202

*130

main90301-T0021i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

(L)

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main90301-T0012i2KDFTV..KUN40200408-200812

*130

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-16022i1TRFE..TGN40..5F..VN;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,MA,PHL,TAIW,TH200408-200812

main90341-18015i2KDFTV..KUN40200808-201202

main90341-T0011i1TRFE,2TRFE..TGN4#..TAIW200812

11301KSENSOR, CRANK POSITION

main90919-05025i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130; *163 OR *184

main90919-05059i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

11301LSENSOR, CRANK POSITION NO.2

main90919-05050i2KDFTV..KUN40; 2KDFTV..KUN40..IDN,PHL200808-201202

*130; *163 OR *184

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201202

*191

main11310-0C011i1TRFE..TGN40201412-201503

*191

main11310-0C012i1TRFE..TGN40201503-201604

*191

main11310-0C013i1TRFE..TGN40201605-201606

main11310-0C020i2TRFE..TGN41200412-200711

*191

main11310-0C021i2TRFE..TGN41200711-201111

*191

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90080-31098i2KDFTV..KUN40..WG..IND201004-201201

main90311-65003i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08374×2i2KDFTV..KUN40..IDN,PHL200808-200901

*163 OR *184

main90116-08376×2i2KDFTV..KUN40200507-200608

main90116-08377×2i2KDFTV..KUN40..IDN,PHL200901-201202

*163 OR *184

11320CASE ASSY, TIMING GEAR

main11320-0L030i2KDFTV..KUN40201201-201202

*130,(L)

main11320-30040i2KDFTV..KUN40200507-200603

*163 OR *184

main11320-30060i2KDFTV..KUN40..IND200603-200708

*163 OR *184

11321CASE, TIMING GEAR

main11321-0L010i2KDFTV..KUN40..WG..IND201004-201201

main11321-30020i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

11322ACOVER, TIMING BELT, NO.1

main11332-0L010i2KDFTV..KUN40..INDWG;2KDFTV..KUN40..IDN,PHL200808-201202

*130

main11332-30020i2KDFTV..KUN40..IDN,PHL,TH200507-200809

*163 OR *184

11322BCOVER, TIMING BELT, NO.2

main11322-0L010i2KDFTV..KUN40..IND200808-201004

*130

main11322-30010i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

11328AGASKET, TIMING BELT COVER, NO.1

main11328-30020i2KDFTV..KUN40200808-201202

11336AINSULATOR, TIMING GEAR COVER

main11336-0L010i2KDFTV..KUN40..WG..IND201004

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0C010i1TRFE..TGN40..5F..VN;2TRFE..TGN41..IDN,TAIW;1TRFE..TGN40..IND,MA,PHL,TAIW200408

main11354-0C020i1TRFE,2TRFE..TGN4#..GCC,IDN,TH200801-200808

main11354-0L020i2KDFTV..KUN40200703-200812

*130

main11354-30010i2KDFTV..KUN40..IND200507-200708

*163 OR *184

11355PLATE, REAR END

main11355-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

*191

main11355-0L010i2KDFTV..KUN40200808-201202

*130

main11355-67011i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

11356PLATE, REAR END, NO.2

main11356-0L010i2KDFTV..KUN40200408-200812

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C010i1TRFE..TGN40..5F..VN;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,MA,PHL,TAIW,TH200408-200812

(L)

main11381-0C011i1TRFE,2TRFE..TGN4#..TAIW200812-201407

(L)

main11381-0C012i1TRFE..TGN40201408

(L)

main11381-0K010i2KDFTV..KUN40200408-200812

*130

main11381-67020i2KDFTV..KUN40..IND200507-200708

*163 OR *184

main11381-75011i1TRFE..TGN40..IND,PHL,VN201112-201204

(J)

11381ASEAL, ENGINE REAR OIL

main90080-31100i2KDFTV..KUN40200808-201202

*130

main90311-95008i2KDFTV..KUN40..IDN,PHL200808-201202

*163 OR *184

main90311-T0026i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201501

(L)

main90311-T0058i1TRFE..TGN40201502

(L)

11494CPLATE, OIL HOLE COVER

main11494-0L010i2KDFTV..KUN40..STD..IND200812

11496AGASKET, OIL HOLE COVER

main11496-0L010i2KDFTV..KUN40..STD..IND200812

12511CBRACKET, ALTERNATOR

main12511-0L010i2KDFTV..KUN40200408-200812

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-0L010i2KDFTV..KUN40200408-200812

ENGINE NO.=9XXXXXX

main15134-0L030i2KDFTV..KUN40200808-201202

*130 TYPE B:REF ILL.

main15134-67010i2KDFTV..KUN40..IND200507-200708

ENGINE NO.=7XXXXXX

1601WATER PUMP

→ Go to FIG 16-01

9008021002

main90080-21002

9010506231

main90105-06231

90105T0042

main90105-T0042

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0069

main90105-T0069

90105T0121

main90105-T0121

9010906017

main90109-06017

90109T0002

main90109-T0002

9011606140

main90116-06140

9011608377

main90116-08377

9011610160

main90116-10160

90116T0009

main90116-T0009

90116T0020

main90116-T0020

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

90119T0057

main90119-T0057

90119T0058

main90119-T0058

90119T0059

main90119-T0059

90178T0018

main90178-T0018

90178T0032

main90178-T0032

9017906298

main90179-06298

90182T0007

main90182-T0007

9021008019

main90210-08019

9030108010

main90301-08010

90301T0008

main90301-T0008

9040110057

main90401-10057

90401T0002

main90401-T0002

9155180610

main91551-80610

9155180614

main91551-80614

9155180616

main91551-80616

9212280616

main92122-80616

9415180600

main94151-80600

61 parts on this diagram · 4 diagrams in section
