SHORT BLOCK ASSEMBLY

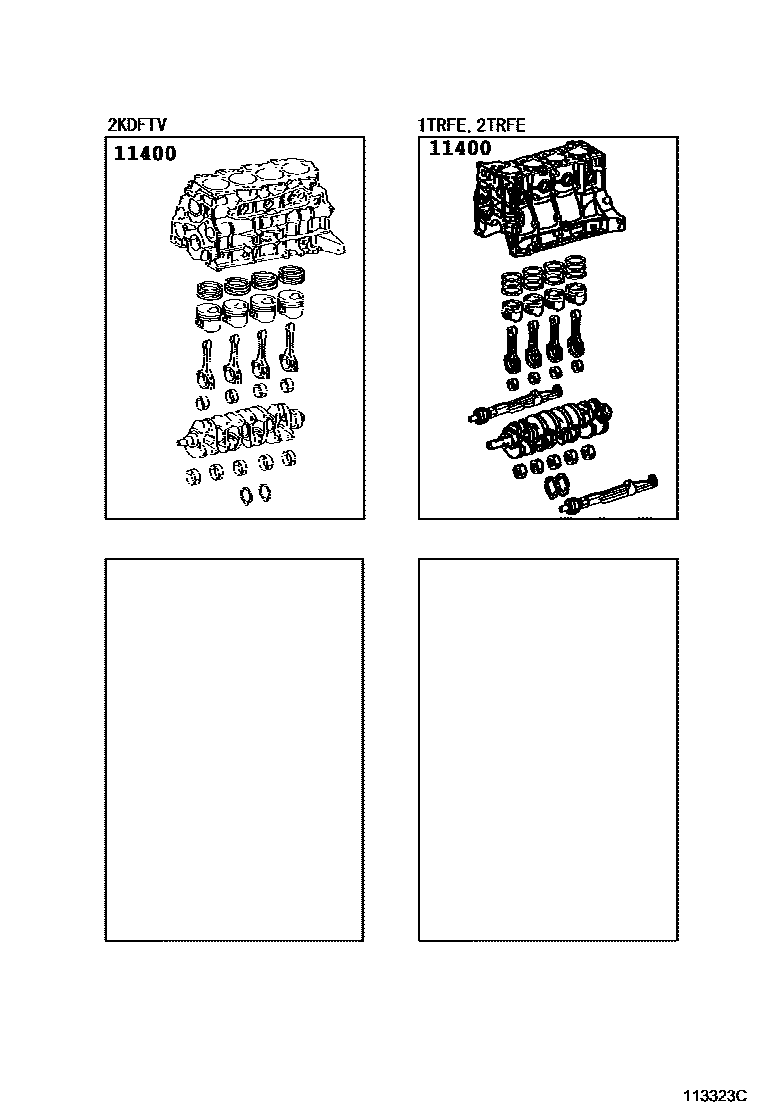

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0C010i200412-200506

main11400-0C020i200810-200812

*125

main11400-0C030i200506-200712

*187

main11400-0C040i200408-200506

main11400-0C110i200506-200712

*125

main11400-0C120i200806-200810

*125

main11400-0C130i200506-200712

*125

main11400-0C170i200712-200806

*187

main11400-0C180i200712-200806

*125

main11400-0L050i200808-200811

*130

main11400-0L090i201004-201105

main11400-0L170i201004-201204

*281

main11400-30240i201105-201204

*163 OR *184

1 parts on this diagram · 1 diagram in section
