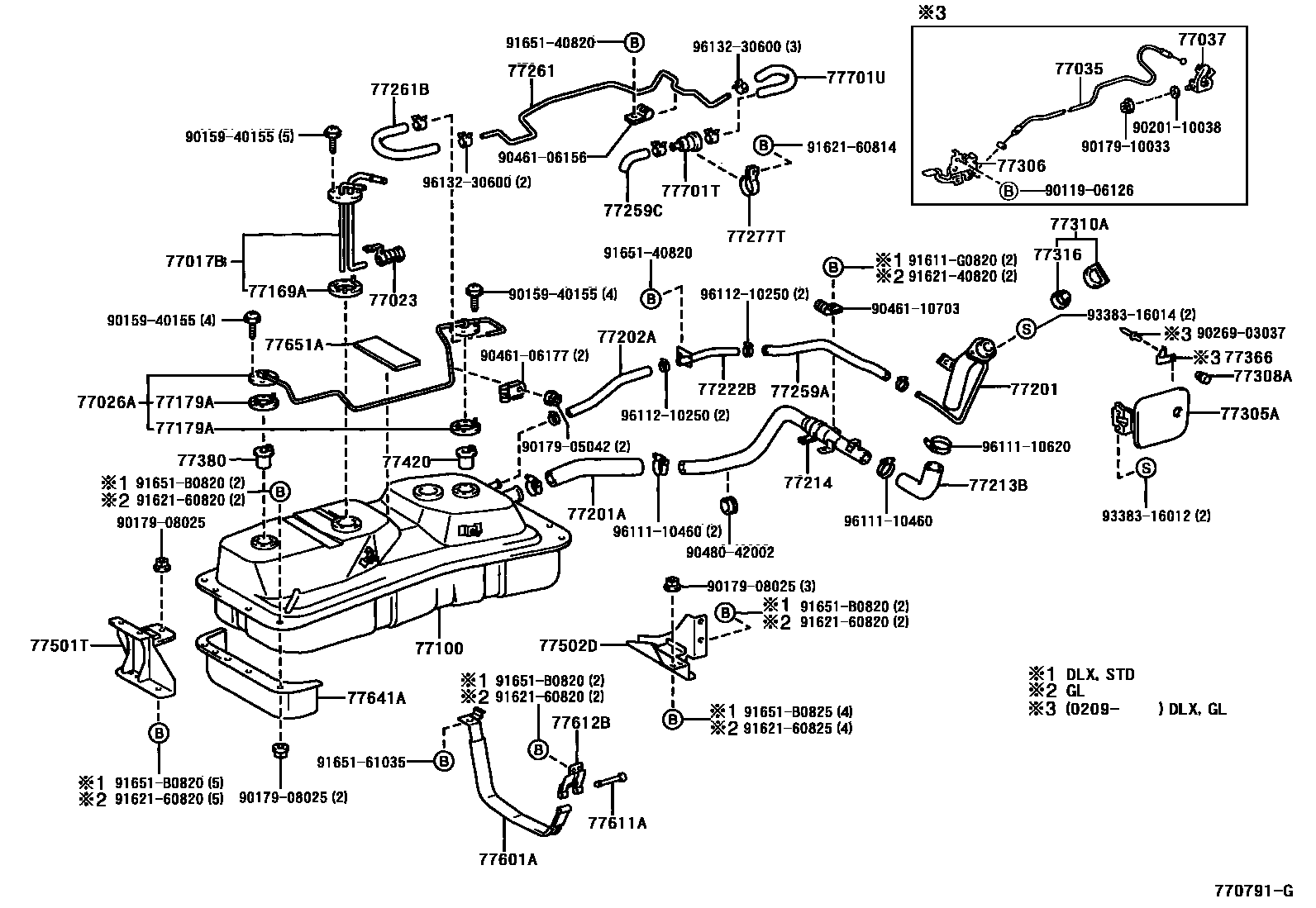

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL TUBE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-0B010iLF50199912

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32010iLF50199912

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-0B010iLF50,RZF50199912

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0B060iLF50,RZF50..DLX,GL200209

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-0B020iLF50,RZF50..DLX,GL200209

77100TANK ASSY, FUEL

main77001-0B050iLF50199912-200201

main77001-0B070iRZF50200201

main77001-0B080iLF50200201

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0B010iLF50199912

main77169-32010iRZF50200201

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-0B010iLF50,RZF50199912

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-0B080iLF50,RZF50199912

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77217-0B080iLF50,RZF50200203

main77217-27050iLF50,RZF50199912-200203

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-0B030iLF50,RZF50200203

L=340

main95311-15034iLF50,RZF50199912-200203

L=340

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0B030iLF50,RZF50200203

main77213-38060iLF50,RZF50199912-200203

77214PIPE, FUEL TANK FILLER

main77214-0B020iLF50,RZF50199912

77222BTUBE, FUEL TANK BREATHER, NO.2

main77222-0B010iLF50,RZF50199912

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-0B040iLF50,RZF50200203

L=480

main95311-15048iLF50,RZF50199912-200203

L=480

77259CHOSE, FUEL

main77259-27200iLF50199912

77261TUBE SUB-ASSY, FUEL EMISSION

main77261-0B040iLF50199912-200112

main77261-0B041iLF50200112

main77261-0B080iRZF50200201

77261BHOSE, FUEL, NO.2 (FOR FUEL EMISSION TUBE)

main95333-06030iLF50199912

*H,L=260

sub95338-06030

77277TBRACKET, CHECK VALVE

main77277-28011iLF50199912

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-0B030iLF50,RZF50199912-200209

main77305-0B040iLF50,RZF50..DLX,GL200209

main77305-0B050iLF50,RZF50..STD200209

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0B040iLF50,RZF50..DLX,GL200209

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05018iLF50,RZF50199912

77310ACAP ASSY, FUEL TANK

main77310-12100iRZF50200201

main77310-35061iLF50199912

77316GASKET, FUEL TANK CAP

main77316-12050iLF50,RZF50199912

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-38010iLF50,RZF50..DLX,GL200209

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iLF50,RZF50199912

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iLF50,RZF50199912

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-0B030iLF50,RZF50199912

77502DBRACKET SUB-ASSY, FUEL TANK, REAR

main77502-0B020iLF50,RZF50199912

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0B040iLF50,RZF50199912

77611APIN (FOR FUEL TANK BAND)

main77653-28010iLF50,RZF50199912

77612BBAND, FUEL TANK, NO.2

main77612-38010iLF50,RZF50199912

77641APROTECTOR, FUEL TANK, NO.1

main77641-0B030iLF50,RZF50199912

77651ACUSHION, FUEL TANK, NO.1

main77651-0B020iLF50,RZF50199912

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iLF50199912

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06020iLF50199912

*H,L=170

sub95337-06020

9011906126

main90119-06126

9015940155

main90159-40155

9017905042

main90179-05042

9017908025

main90179-08025

9017910033

main90179-10033

9020110038

main90201-10038

9026903037

main90269-03037

9046106156

main90461-06156

9046106177

main90461-06177

9046110703

main90461-10703

9048042002

main90480-42002

91611G0820

main91611-G0820

9162140820

main91621-40820

9162160814

main91621-60814

9162160820

main91621-60820

9162160825

main91621-60825

9165140820

main91651-40820

9165161035

main91651-61035

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9338316012

main93383-16012

9338316014

main93383-16014

9611110460

main96111-10460

9611110620

main96111-10620

9611210250

main96112-10250

9613230600

main96132-30600

62 parts on this diagram · 5 diagrams in section
