SEAT & SEAT TRACK

0001 1FRONT SEAT (SEPARATE SEAT) 0002 1FRONT SEAT (2+1) 0003 1FRONT SEAT (SEPARATE SEAT) 0004 1FRONT SEAT (2+1) 0005 1REAR NO.1 SEAT (BENCH SEAT) 0006 1REAR NO.1 SEAT (FOR 02S) 0007 1REAR NO.1 SEAT (FOR 02S) 0008 1REAR NO.1 SEAT (FOR 01S) 0009 1REAR NO.1 SEAT (FOR 01S) 0010 1REAR NO.1 SEAT (CAPTAIN SEAT)0011 1REAR NO.2 SEAT 0012 1REAR NO.2 SEAT (SIDE SEAT)

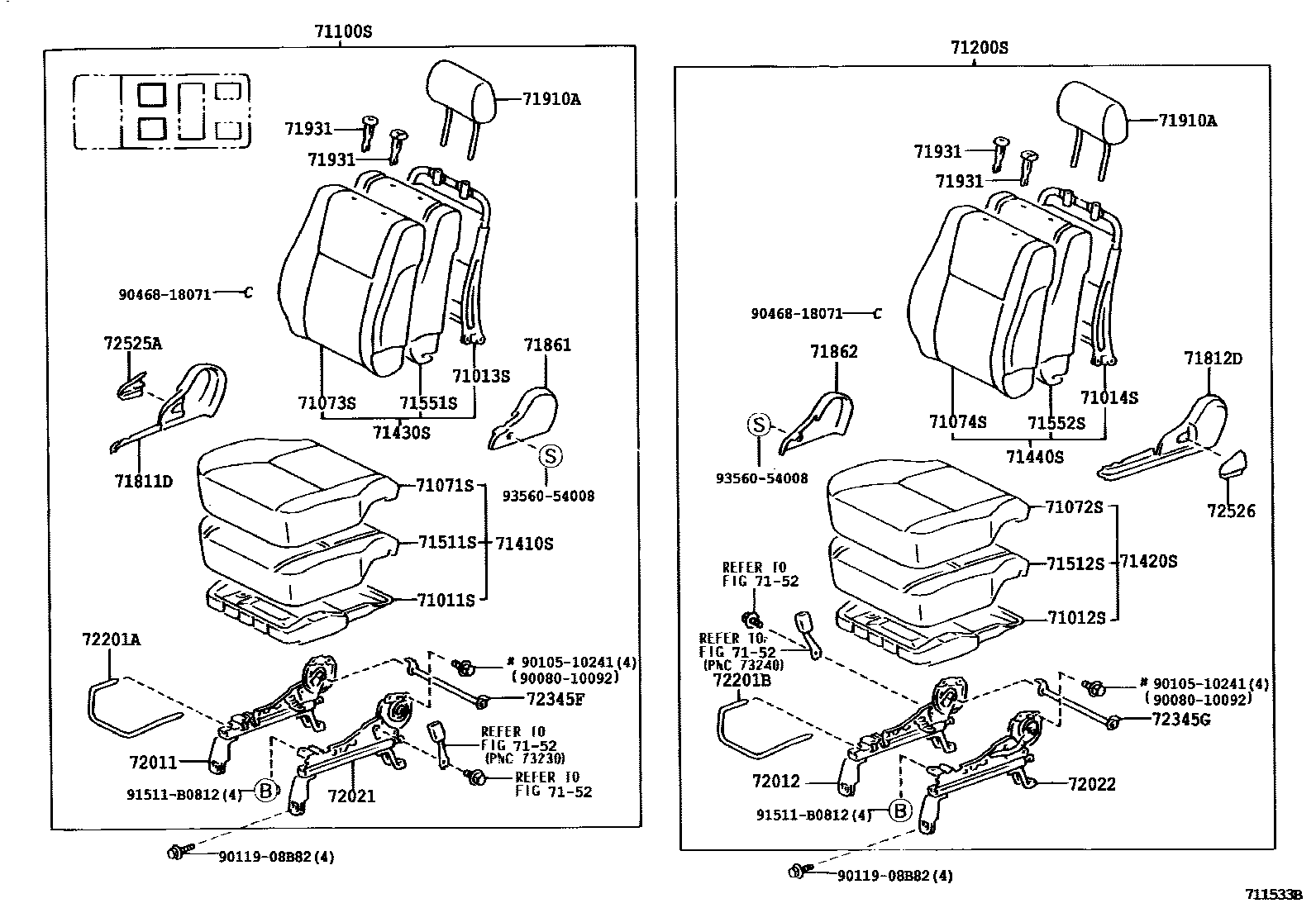

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-0B060iLF50;RZF50..GL,STD199912

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-0B060iLF50,RZF50..GL199912

main71620-0B040iRZF50..STD;LF50..DLX,STD199912

W(SEPARATE SEAT)

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-0B050iLF50,RZF50199912-200209

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71013-0B050iLF50..DLX199912-200209

W(SEPARATE SEAT)

main71014-0B070iLF50..DLX,STD199912-200209

main71014-0B071iLF50,RZF50..STD200209

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0B070iLF50..DLX199912-200209

SEAT = TYPE C-*104

main71071-0B110-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71071-0B111-B0iLF50,RZF50..STD200301-200412

BLUISH GRAY,TRIM1#

main71071-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71071-0B121-B1iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71071-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71071-0B131-B0iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0B170-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71072-0B171-B0iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main71072-0B180-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71072-0B240-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104 & W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main71072-0B241-B1iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71072-0B250-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71072-0B251-B0iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

main71072-0B260iLF50..DLX199912-200209

SEAT = TYPE C-*104

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0B070iLF50..DLX199912-200209

SEAT = TYPE C-*104

main71073-0B110-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71073-0B111-B0iLF50..STD200209-200301

BLUISH GRAY,TRIM1#

main71073-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71073-0B121-B1iLF50..DLX200209-200301

BLUISH GRAY,TRIM1#

main71073-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71073-0B131-B0iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-0B070iLF50..DLX199912-200209

SEAT = TYPE C-*104

main71073-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104 & W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main71073-0B121-B1iLF50,RZF50..DLX200209-200412

BLUISH GRAY,TRIM1#

main71073-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71073-0B131-B0iLF50,RZF50..GL200209-200412

BLUISH GRAY,TRIM1#

main71074-0B180-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71074-0B181-B0iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main71074-0B190-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

71100SSEAT ASSY, FRONT RH

main71100-0B150-B0iLF50..STD199912-200209

W(HEADREST),BLUISH GRAY,TRIM1#

main71100-0B151-B1iLF50..STD200209-200301

W(HEADREST),BLUISH GRAY,TRIM1#

main71100-0B152-B1iLF50..STD200301-200412

W(HEADREST),BLUISH GRAY,TRIM1#

main71100-0B160-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71100-0B161-B2iLF50..DLX200209-200301

BLUISH GRAY,TRIM1#

main71100-0B162-B1iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71100-0B170-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71100-0B171-B1iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

main71100-0B172-B1iLF50,RZF50..GL200301-200412

BLUISH GRAY,TRIM1#

main71100-0B250-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71100-0B251-B1iLF50..STD200209-200301

BLUISH GRAY,TRIM1#

main71100-0B252-B1iLF50..STD200301-200412

BLUISH GRAY,TRIM1#

main71100-0B260iLF50..DLX199912-200209

SEAT = TYPE C-*104

71200SSEAT ASSY, FRONT LH

main71200-0B180-B0iLF50..STD199912-200209

W(HEADREST),BLUISH GRAY,TRIM1#

main71200-0B181-B1iRZF50..STD200304-200412

BLUISH GRAY,TRIM1#

main71200-0B190-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71200-0B210-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104 & W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main71200-0B211-B2iLF50..DLX200209-200301

BLUISH GRAY,TRIM1#

main71200-0B212-B1iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71200-0B220-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71200-0B221-B1iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

main71200-0B222-B1iLF50,RZF50..GL200301-200412

BLUISH GRAY,TRIM1#

main71200-0B320-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71200-0B321-B1iLF50..STD200209-200412

BLUISH GRAY,TRIM1#

main71200-0B330iLF50..DLX199912-200209

SEAT = TYPE C-*104

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-0B110-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71410-0B111-B1iLF50,RZF50..STD200301-200412

BLUISH GRAY,TRIM1#

main71410-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71410-0B121-B2iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71410-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71410-0B131-B1iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

main71410-0B190iLF50..DLX199912-200209

SEAT = TYPE C-*104

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0B170-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71420-0B171-B1iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main71420-0B180-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71420-0B240-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104 & W(SEPARATE SEAT),XXXX,TRIM1#

main71420-0B241-B2iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71420-0B250-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71420-0B251-B1iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

main71420-0B260iLF50..DLX199912-200209

SEAT = TYPE C-*104

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-0B110-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71430-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

main71430-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71430-0B190iLF50..DLX199912-200209

SEAT = TYPE C-*104

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-0B120-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104 & W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

main71430-0B130-B0iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71430-0B190iLF50..DLX199912-200209

SEAT = TYPE C-*104

main71440-0B180-B0iLF50..STD199912-200209

BLUISH GRAY,TRIM1#

main71440-0B181-B1iLF50,RZF50..STD200209-200412

BLUISH GRAY,TRIM1#

main71440-0B190-B0iLF50..DLX199912-200209

SEAT = TYPE B-*104,BLUISH GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-0B040iRZF50..DLX; RZF50..STD199912

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71501-0B040iLF50,RZF50..GL200201-200209

main71502-0B050iLF50,RZF50..STD199912

7152SEAT BELT

→ Go to FIG 71-52

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-0B040iLF50,RZF50199912-200209

main71505-0B041iLF50,RZF50200209-200301

main71505-0B042iLF50,RZF50..DLX,GL; LF50,RZF50..STD200301

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71505-0B040iLF50..DLX199912-200209

W(SEPARATE SEAT)

main71505-0B041iLF50,RZF50..GL200209-200301

main71505-0B042iLF50,RZF50..DLX,GL200301

main71552-0B020iLF50..DLX,STD199912-200209

main71552-0B021iLF50,RZF50..STD200209

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0B030-B0iLF50,RZF50199912-200209

BLUISH GRAY,TRIM1#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0B040-B0iLF50,RZF50..DLX,GL200209-200301

BLUISH GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0B010-B0iRZF50..DLX,STD199912-200412

BLUISH GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0B020-B0iLF50,RZF50..DLX,GL199912-200209

BLUISH GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-0B150-B0×2iLF50,RZF50..STD199912-200412

BLUISH GRAY,TRIM1#

main71910-0B160-B0×2iLF50..DLX199912-200209

BLUISH GRAY,TRIM10

main71910-0B161-B2×2iLF50,RZF50..DLX200301-200412

BLUISH GRAY,TRIM1#

main71910-0B170-B0×2iLF50,RZF50..GL200201-200209

BLUISH GRAY,TRIM1#

main71910-0B171-B1×2iLF50,RZF50..GL200209-200301

BLUISH GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0B020-B0iLF50,RZF50..DLX,GL199912-200209

W(LOCK),BLUISH GRAY,TRIM1#

main71931-0B030-B0×2iLF50,RZF50..DLX,GL200209-200301

W/O(LOCK),BLUISH GRAY,TRIM1#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72011-0B030iLF50,RZF50199912-200209

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72012-0B030iLF50,RZF50..DLX,GL199912-200209

72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

main72021-0B030iLF50,RZF50199912-200209

72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

main72022-0B030iLF50,RZF50..DLX,GL199912-200209

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72201-0B030iLF50,RZF50199912-200209

72201BHANDLE SUB-ASSY, SEAT TRACK LH

main72201-0B030iLF50,RZF50..DLX,GL199912-200209

72345FPIPE, RECLINING CONNECTING, RH

main72345-0B060iLF50,RZF50199912-200209

72345GPIPE, RECLINING CONNECTING, LH

main72345-0B060iLF50,RZF50..DLX,GL199912-200209

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-0B030-B0iLF50,RZF50199912-200209

BLUISH GRAY,TRIM1#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0B040-B0iLF50,RZF50..DLX,GL199912-200209

BLUISH GRAY,TRIM1#

9008010092

main90080-10092

9010510241

main90105-10241

9011908B82

main90119-08B82

9046818071

main90468-18071

91511B0812

main91511-B0812

9356054008

main93560-54008

41 parts on this diagram · 12 diagrams in section
