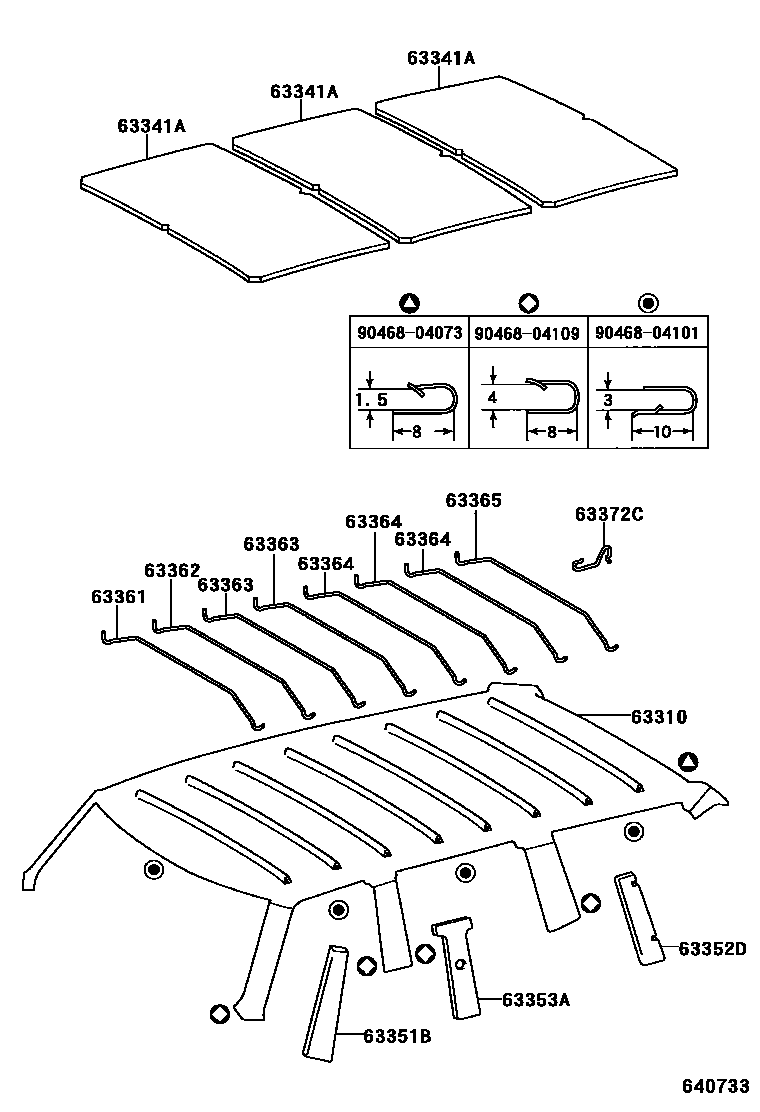

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
LT.BLUISH GRAY,TRIM1#
W(DUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
W(DUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1#
LT.BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(DUAL AIR CONDITIONER),LT. BLUISH GRAY,TRIM1#
LT. BLUISH GRAY,TRIM1#
W(DUAL AIR CONDITIONER),LT. BLUISH GRAY,TRIM1#
63341ASILENCER, ROOF, NO.1
63351BPAD, ROOF HEADLINING
63352DPAD, ROOF HEADLINING, NO.2
63353APAD, ROOF HEADLINING CENTER PILLAR
63361SUPPORT, ROOF HEADLINING, NO.1
L=1168.5
L=1165.5
L=1171.5
63362SUPPORT, ROOF HEADLINING, NO.2
L=1169
L=1166
L=1172
63363SUPPORT, ROOF HEADLINING, NO.3
W(DUAL AIR CONDITIONER),L=1169.5
W(DUAL AIR CONDITIONER),L=1166.5
W(DUAL AIR CONDITIONER),L=1172.5
63364SUPPORT, ROOF HEADLINING, NO.4
L=1171
L=1168
L=1174
63365SUPPORT, ROOF HEADLINING, NO.5
L=1155.5
L=1152.5
L=1158.5
63372CHOOK, ROOF HEADLINING SUPPORT
9046804073
main90468-04073
9046804101
main90468-04101
9046804109
main90468-04109
14 parts on this diagram · 1 diagram in section
