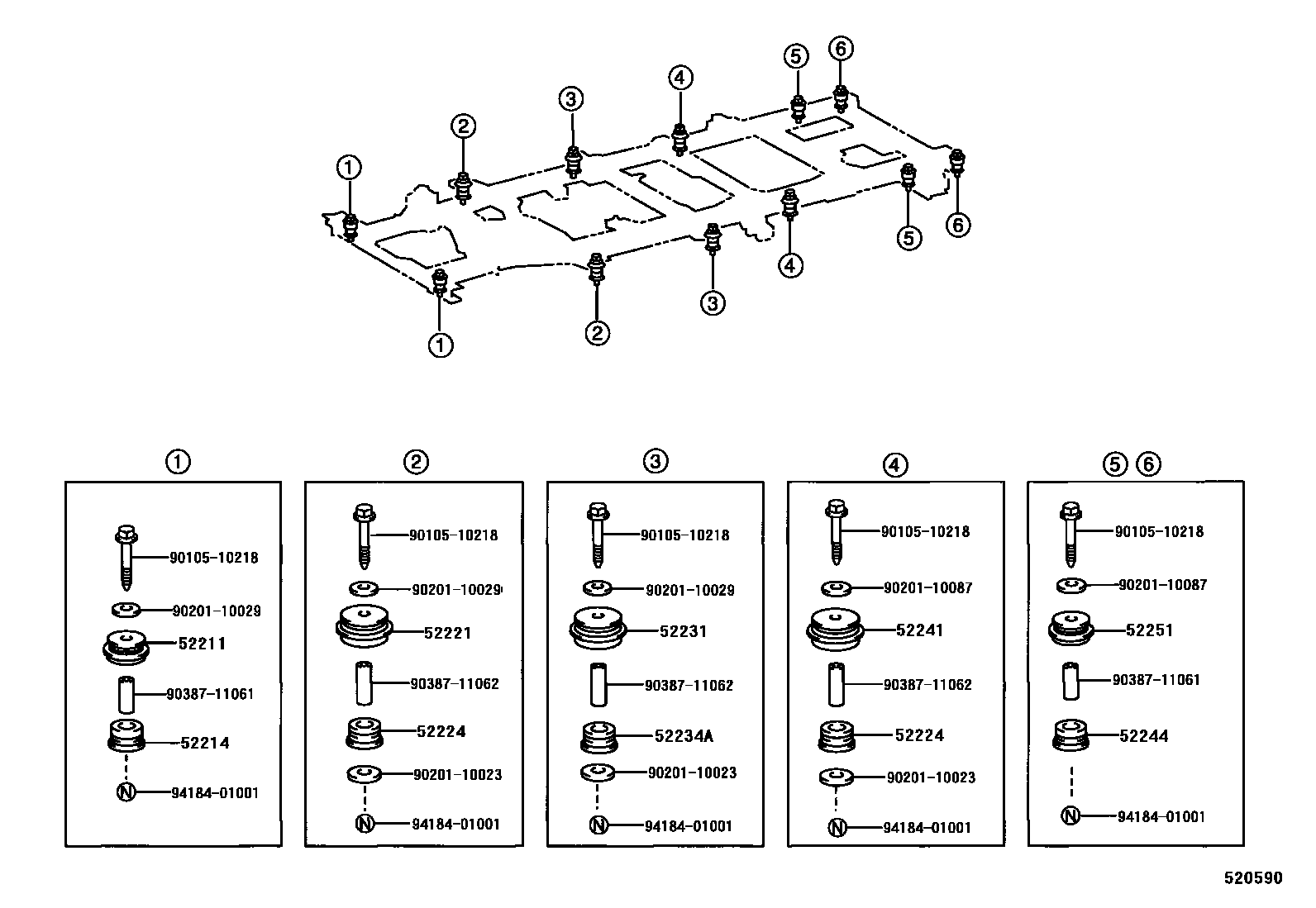

CAB MOUNTING & BODY MOUNTING

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-0B030×2iLF50,RZF50200012

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-0B030×2iLF50,RZF50200012

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52207-0B030×2iLF50,RZF50200012

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52208-0B030×2iLF50,RZF50200012

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52207-0B030×2iLF50,RZF50200012

52234ACUSHION, CAB MOUNTING, NO.4 LOWER

main52208-0B030×2iLF50,RZF50200012

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52207-0B030×2iLF50,RZF50200012

52244CUSHION, BODY MOUNT, NO.4 LOWER

main52202-0B030×4iLF50,RZF50200012

52251CUSHION, BODY MOUNT, NO.5 UPPER

main52201-0B030×4iLF50,RZF50200012

9010510218

main90105-10218

9020110023

main90201-10023

9020110029

main90201-10029

9020110087

main90201-10087

9038711061

main90387-11061

9038711062

main90387-11062

9418401001

main94184-01001

16 parts on this diagram · 1 diagram in section
