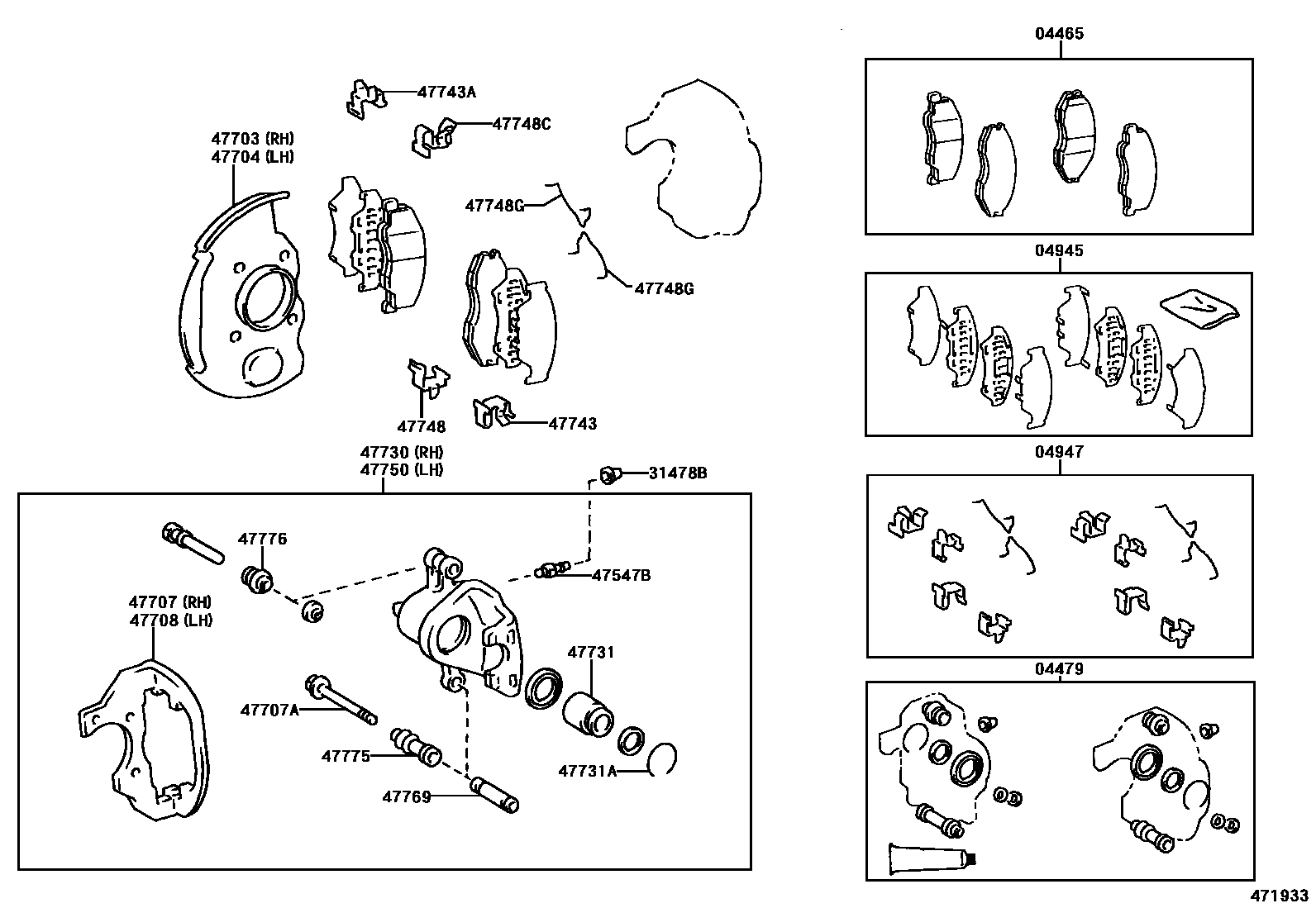

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK AK PA533,(L)
MARK AK PA533,(J)
MARK AK PA533
04479CYLINDER KIT, DISC BRAKE, FRONT
(L)
(L)
(J)
04945SHIM KIT, ANTI SQUEAL, FRONT
(L)
(L)
(J)
04947FITTING KIT, DISC BRAKE, FRONT
(L)
(J)
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
(L)
(J)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
(J)
(L)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
(L)
(J)
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
(L)
(J)
47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
(L)
(J)
47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
(L)
(J)
47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
(L)
(J)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
(L)
(J)
47731PISTON, FRONT DISC BRAKE
(L)
(J)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
(L)
(J)
47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47748GSPRING, ANTI-RATTLE, NO.3(FOR FRONT DISC BRAKE)
(L)
(J)
47750CYLINDER ASSY, DISC BRAKE, LH
(L)
(J)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
(L)
(J)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
(L)
(J)
47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
(L)
(J)
23 parts on this diagram · 1 diagram in section
