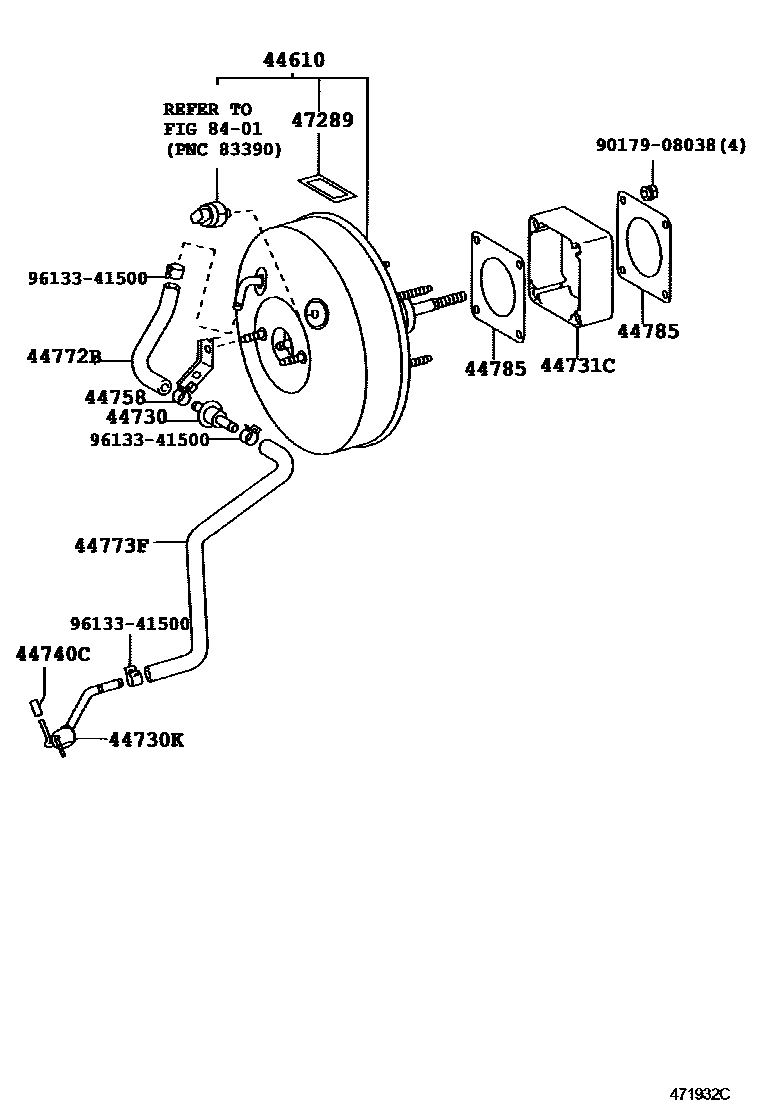

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-0B060iLF50200201

(L)

main44610-38080iLF50200201

(J)

main44610-38170iRZF50200201

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iRZF50200201

main44730-35010iLF50199912

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09183iLF50199912

44731CBRACKET, BRAKE BOOSTER

main44731-38020iLF50,RZF50199912

44740CPLUG(FOR UNION)

main90339-03005iLF50..STD199912

44758BRACKET, VACUUM CHECK VALVE

main44758-38040iLF50199912

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-38040iLF50199912

44773FHOSE, UNION TO CHECK VALVE

main44773-38120iLF50199912

main44773-38200iRZF50200201

44785GASKET, BRAKE BOOSTER

main44785-32010×2iLF50,RZF50199912

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-0B010iLF50200201

(L)

main47289-60010iLF50199912-200201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908038

main90179-08038

9613341500

main96133-41500

13 parts on this diagram · 2 diagrams in section
