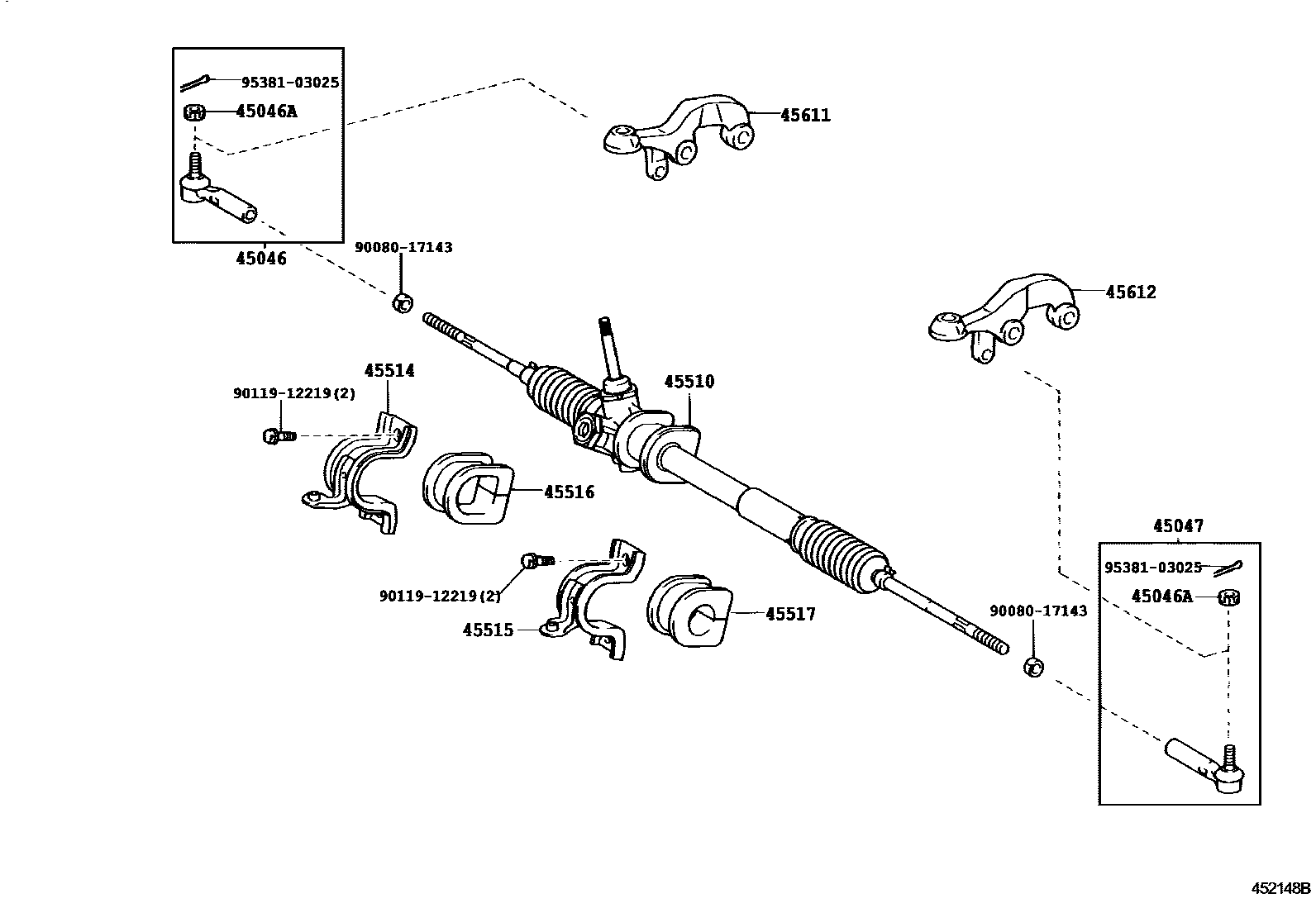

FRONT STEERING GEAR & LINK

0001 1W(MANUAL STEERING) 0002 1W(POWER STEERING) 0003 1W(MANUAL STEERING) 0004 1W(POWER STEERING)

45046END SUB-ASSY, TIE ROD, RH

main45046-09110iLF50,RZF50199912-200410

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iLF50,RZF50199912-200412

45047END SUB-ASSY, TIE ROD, LH

main45046-09110iLF50,RZF50199912-200410

45510GEAR ASSY, STEERING

main45510-0B030iLF50..STD199912-200104

main45510-0B031iLF50,RZF50..STD200104-200412

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-38040iLF50,RZF50199912-200412

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-38050iLF50,RZF50199912-200412

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-27040iLF50,RZF50199912-200412

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-27030iLF50,RZF50..STD199912-200412

W(MANUAL STEERING)

main45517-38070iLF50,RZF50199912-200412

W(POWER STEERING)

45611ARM, STEERING KNUCKLE, RH

main45611-0B010iLF50,RZF50199912

45612ARM, STEERING KNUCKLE, LH

main45612-0B010iLF50,RZF50199912

9008017143

main90080-17143

9011912219

main90119-12219

9538103025

main95381-03025

13 parts on this diagram · 4 diagrams in section
