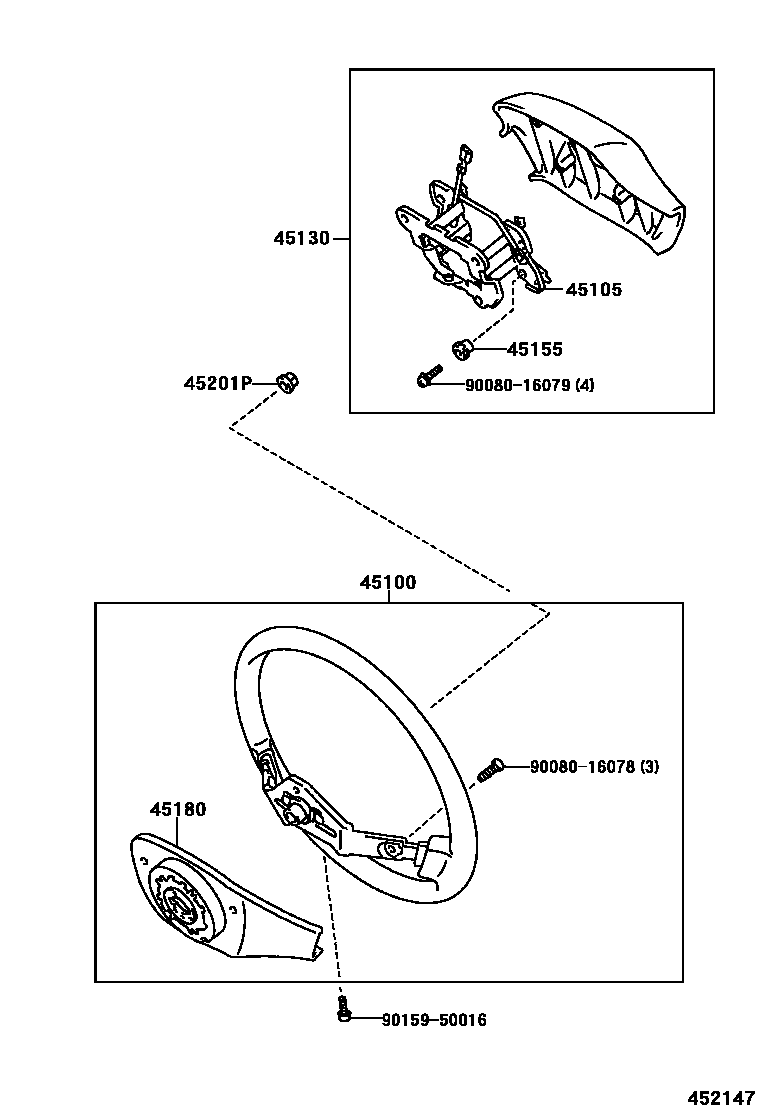

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0B050-B0iLF50,RZF50199912-200412

2-SPOKE,BLUISH GRAY,TRIM1#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-0B040iLF50,RZF50199912

45130BUTTON ASSY, HORN

main45130-0B040-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-0B030×4iLF50,RZF50199912

45180COVER SUB-ASSY, STEERING WHEEL

main45180-0B040-B0iLF50,RZF50199912-200412

BLUISH GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iLF50,RZF50199912

9008016078

main90080-16078

9008016079

main90080-16079

9015950016

main90159-50016

9 parts on this diagram · 1 diagram in section
