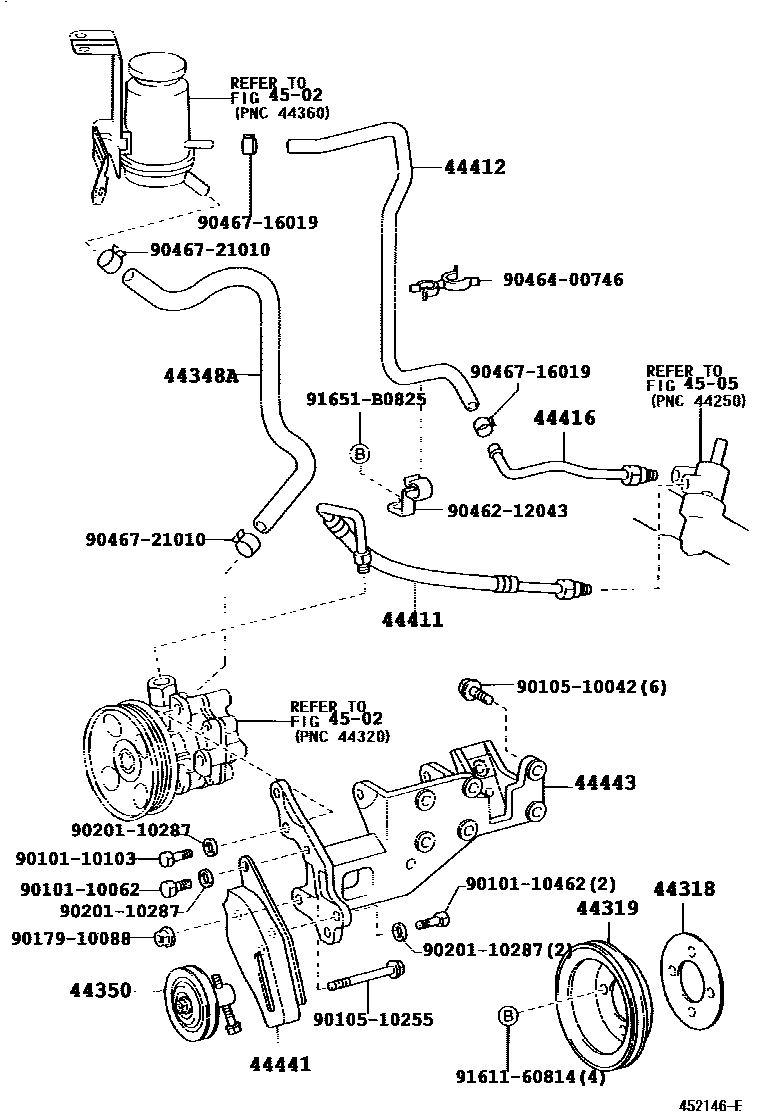

POWER STEERING TUBE

0001 1 0002 1

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-35010iLF50..STD199912

44319PULLEY, VANE PUMP DRIVE

main44319-26020iRZF50200201

main44319-35030iLF50199912

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0B020iLF50199912-200412

main44348-38100iRZF50200201-200412

44350PULLEY ASSY, POWER STEERING IDLE

main44350-26010iRZF50200201

main44350-60020iLF50199912-200111

main44350-60021iLF50200111

44411HOSE, PRESSURE FEED

main44411-0B060iLF50199912-200412

44412HOSE, RETURN

main44412-38150iLF50199912-200412

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-38130iLF50199912-200412

44441BRACKET, PUMP, FRONT

main44441-26010iRZF50200201

main44441-35040iLF50199912

44443BRACKET, PUMP

main44443-26031iRZF50200201

main44443-35070iLF50199912

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010110062

main90101-10062

9010110103

main90101-10103

9010110462

main90101-10462

9010510042

main90105-10042

9010510255

main90105-10255

9017910088

main90179-10088

9020110287

main90201-10287

9046212043

main90462-12043

9046400746

main90464-00746

9046716019

main90467-16019

9046721010

main90467-21010

9161160814

main91611-60814

91651B0825

main91651-B0825

24 parts on this diagram · 2 diagrams in section
