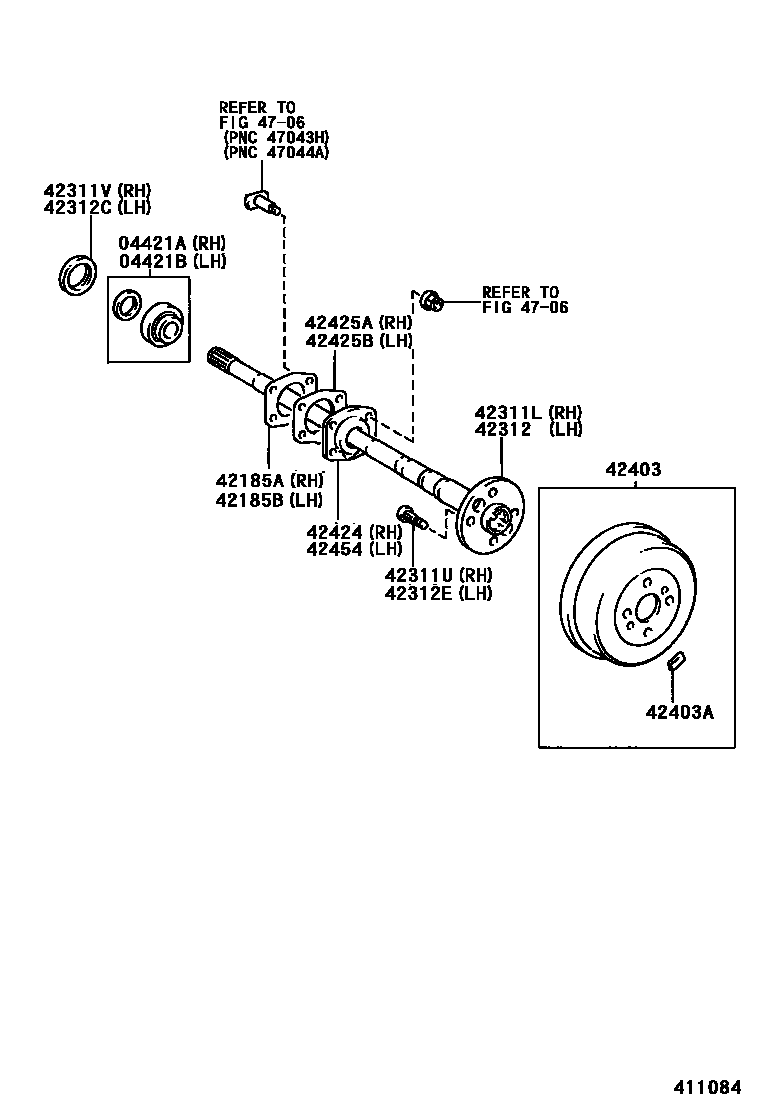

REAR AXLE SHAFT & HUB

04421ABEARING KIT, REAR AXLE SHAFT, RH

main04421-0B020iLF50,RZF50200004

main04421-30081iLF50199912-200004

04421BBEARING KIT, REAR AXLE SHAFT, LH

main04421-0B020iLF50,RZF50200004

main04421-30081iLF50199912-200004

42185AGASKET, REAR AXLE HOUSING END, RH

main42185-28030iLF50,RZF50199912

42185BGASKET, REAR AXLE HOUSING END, LH

main42185-28030iLF50,RZF50199912

42311LSHAFT, REAR AXLE, RH

main42311-0B020iLF50,RZF50199912

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×4iLF50,RZF50199912

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-52059iLF50,RZF50199912

42312SHAFT, REAR AXLE, LH

main42311-0B020iLF50,RZF50199912

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-52059iLF50,RZF50199912

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×4iLF50,RZF50199912

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0B030×2iLF50199912-200106

main42431-28020×2iLF50200106-200412

(J)

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iLF50,RZF50199912

10G

main90937-01118iLF50,RZF50199912

20G

main90937-01119iLF50,RZF50199912

30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-30040iLF50,RZF50199912

42425AGASKET, REAR AXLE BEARING RETAINER, RH

main42425-30031iLF50,RZF50199912

42425BGASKET, REAR AXLE BEARING RETAINER, LH

main42425-30031iLF50,RZF50199912

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iLF50,RZF50199912

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

17 parts on this diagram · 1 diagram in section
