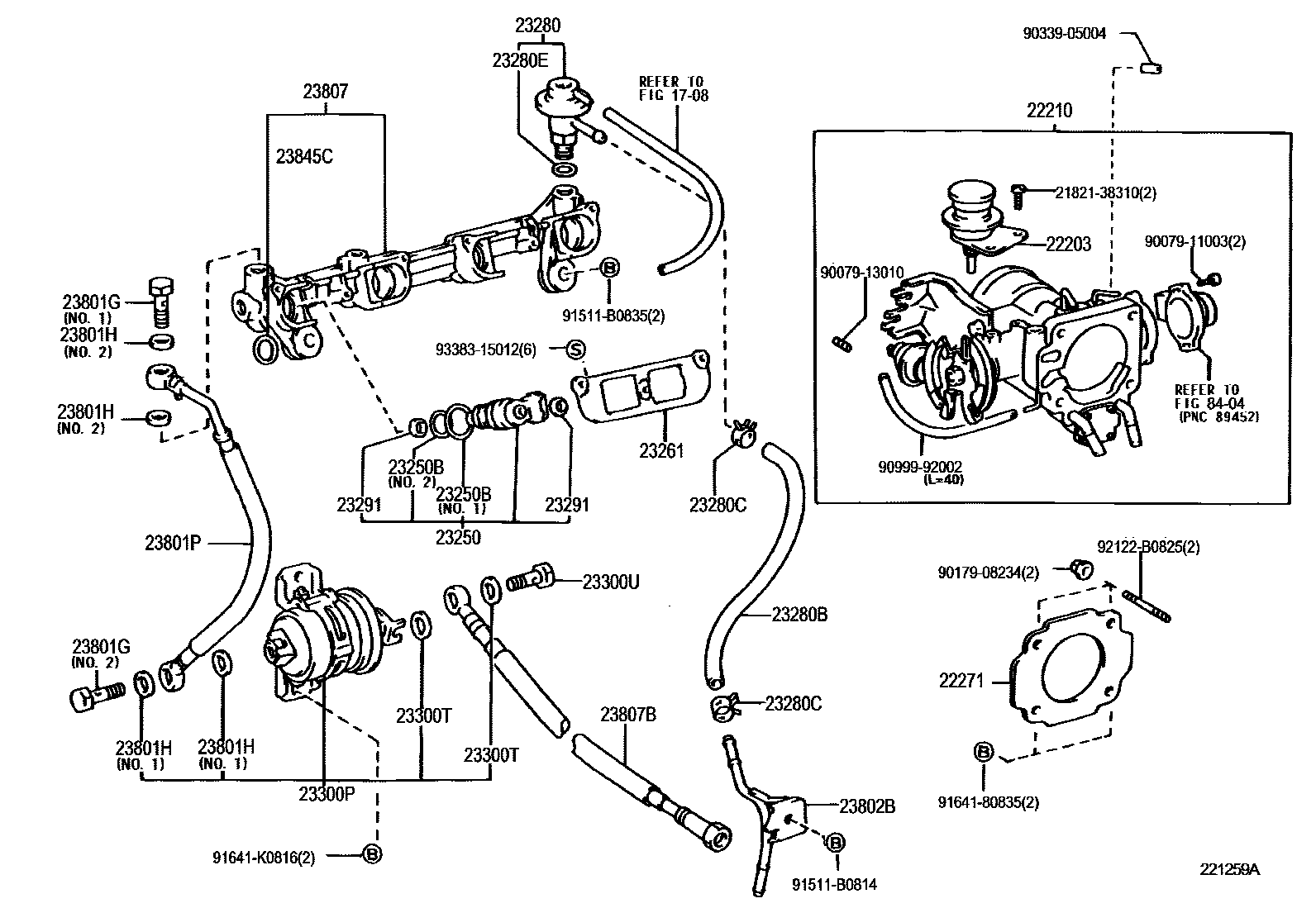

FUEL INJECTION SYSTEM
1708
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
NO.2
NO.1
23261COVER, INJECTOR
23280REGULATOR ASSY, FUEL PRESSURE
23280BHOSE, FUEL PRESSURE REGULATOR RETURN
23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
NO.1
NO.2
23801HGASKET(FOR FUEL PIPE)
NO.2
NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807BHOSE, FUEL DELIVERY PIPE
23845CINSULATOR, FUEL PIPE
8404
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9007911003
main90079-11003
9007913010
main90079-13010
9017908234
main90179-08234
9033905004
main90339-05004
9099992002
main90999-92002
91511B0814
main91511-B0814
91511B0835
main91511-B0835
9164180835
main91641-80835
91641K0816
main91641-K0816
92122B0825
main92122-B0825
9338315012
main93383-15012
35 parts on this diagram · 2 diagrams in section
